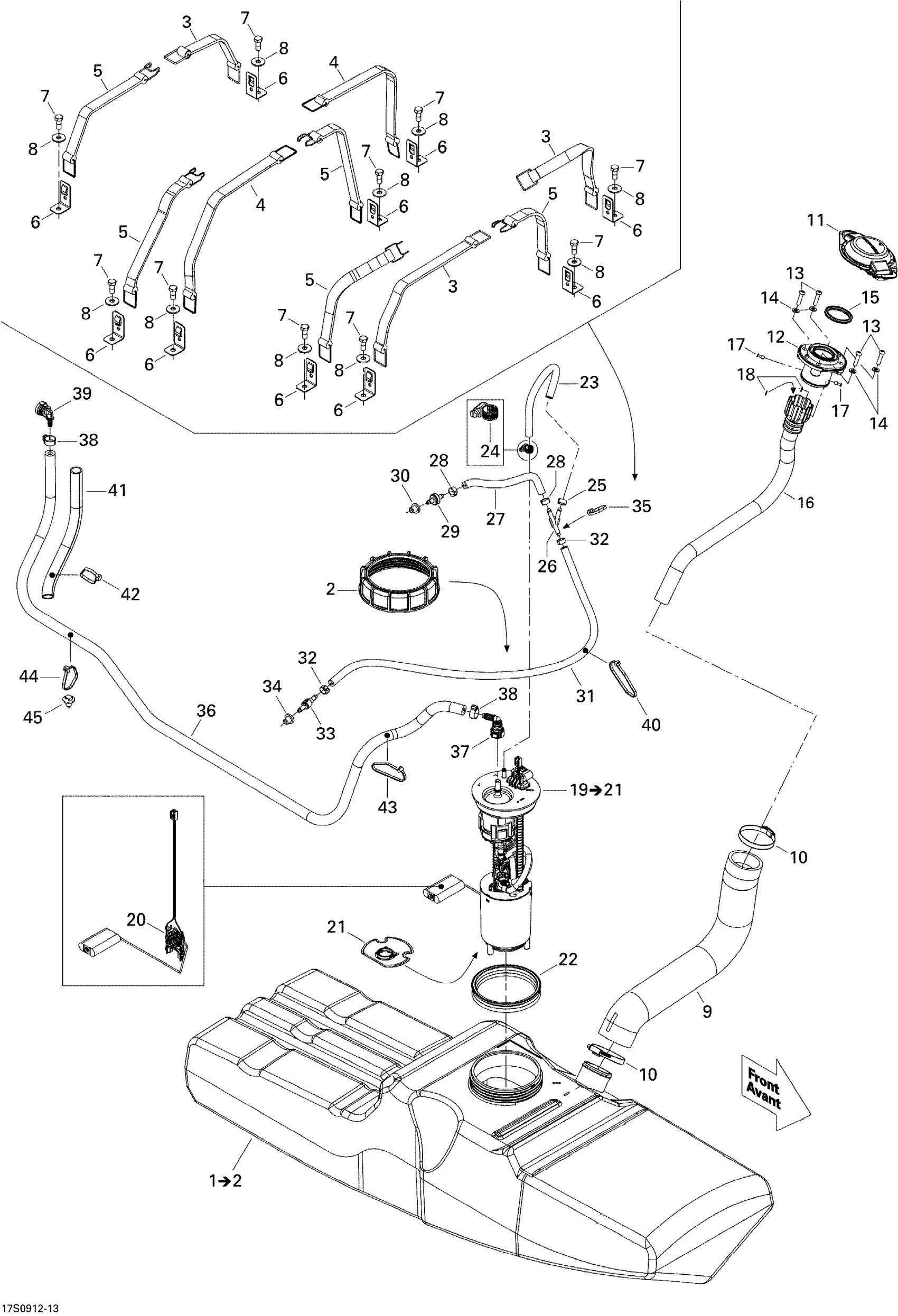

Sea-doo RXT iS 255, 2009 02- Fuel System Diagram

#

Description
Price

1

FUEL TANK ASS'Y - Call your local BRP dealership | Includes 10 to 10a

275500783

Unavailable

2

Special Nut M130

250100062

$21.99

3

Fuel Tank Strap

293850087

$19.99

4

Fuel Tank Strap

293850095

$19.99

5

Fuel Tank Strap

293850094

$22.49

6

STRAP CLIP 90 - Call your local BRP dealership

275500743

Unavailable

7

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.99

8

Flat Washer 8 mm, Stainless

234082600

$2.43

9

Hose

275500919

$90.99

10

Norma Clamp

293650081

$12.18

11

Fuel Cap Ass'y

275500832

$69.99

12

FILLER NECK, FUEL - Call your local BRP dealership

275500744

Unavailable

13

Torx Screw M6 X 25, Scotch Grip

250000328

$2.19

14

Stainless Flat Washer M6

234061600

$0.33

15

X-Ring

293300139

$23.99

16

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

17

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

18

Flat Washer M3, Stainless

234032600

$0.55

19

Fuel Pump Ass'y | Includes 18 to 20

275500779

$425.99

20

Sensor Lever

275500780

$224.99

21

Fuel Filter

270600113

$33.99

22

Gasket

293250173

$18.49

23

Was 275500549 Hose 1/4"

219704357

$194.99

24

Norma Clamp

293650084

$4.12

25

Oetiker Gear Clamp

293650025

$3.09

26

Y-Fitting

293710059

$9.69

27

Was 275500549 Hose 1/4"

219704357

$194.99

28

Oetiker Gear Clamp

293650025

$3.09

29

Check Valve

275500398

$10.99

30

Grommet

293720029

$1.59

31

Was 275500549 Hose 1/4"

219704357

$194.99

32

Oetiker Gear Clamp

293650025

$3.09

33

Check Valve

513033469

$31.99

34

Grommet

293720029

$1.59

35

Tie-Rap 180 mm

414115200

$0.11

36

HOSE I.D. 7.9MM 3000MM LONG - Call your local BRP dealership

219704395

Unavailable

37

Quick Attach 90°

275500700

$16.49

38

Oetiker Clamp

293650140

$2.69

39

Elbow Fitting 90°

293710105

$14.22

40

Tie-Rap 180 mm

414115200

$0.11

41

Tubing 16 Mm 1000Mm Long

219704408

$7.49

42

Tie-Rap 180 mm

414115200

$0.11

43

Tie-Rap 180 mm

414115200

$0.11

44

Tie Wrap 368 mm

293750008

$1.04

45

Mount Dart

293730040

$1.04
