Partiron

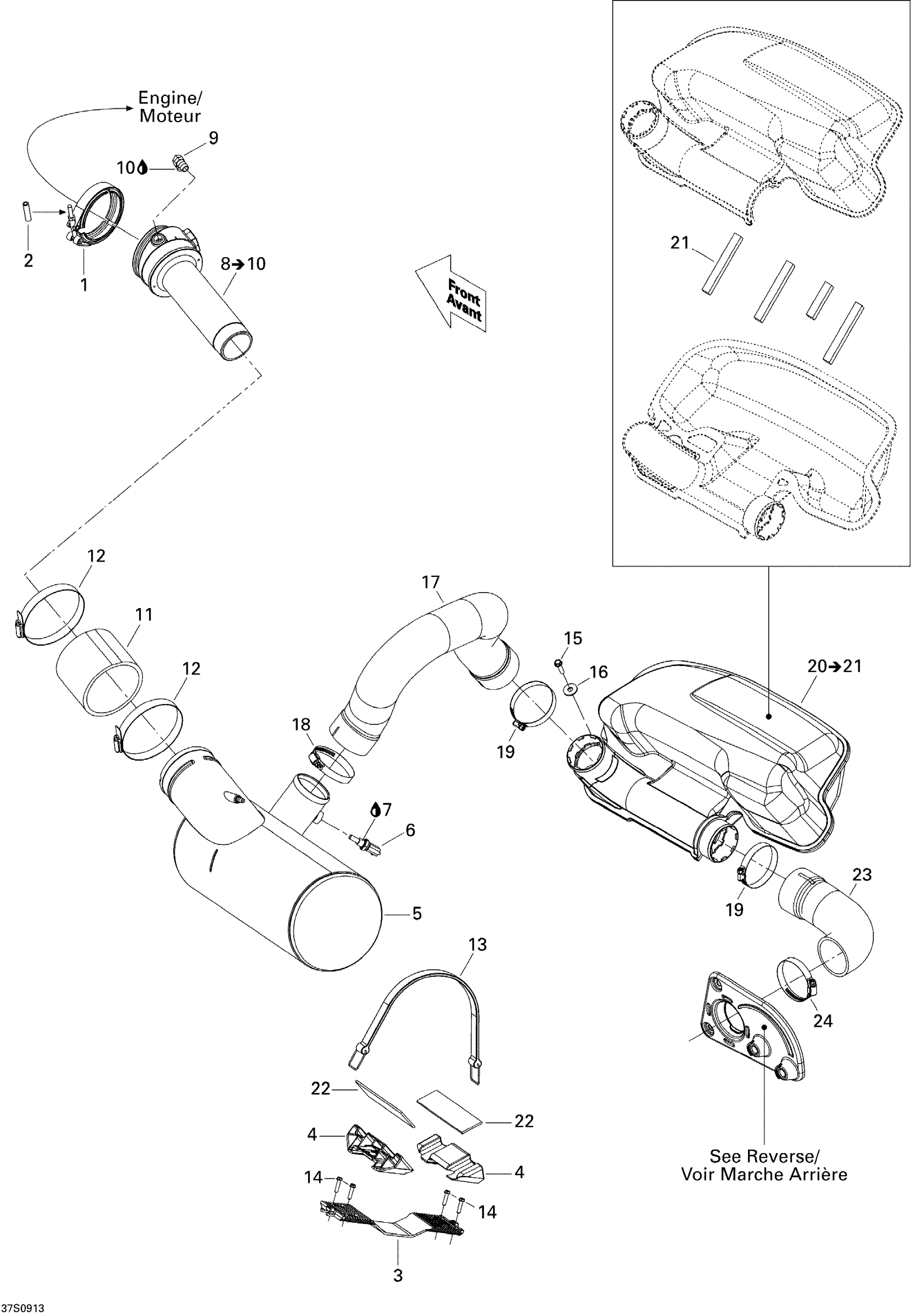

Sea-doo RXT iS 255, 2009 Exhaust System Diagram

#

Description
Price

1

Exhaust Clamp

274001417

$52.21

2

Polyurethane Hose 10000Mm Long

219704410

$52.96

3

Exhaust Muffler Support This part replaces 274001357.

274001479

$15.64

4

Stopper

274001721

$16.39

5

Muffler This part replaces 274001384.

274001648

$758.18

6

Temperature Sensor

278002895

$36.54

7

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

8

NEEDS DESCRIPTION | Without Catalyst, Includes 3 to 4 This part replaces 274001354.

423462834

Unavailable

9

Elbow Fitting 90° | Without Catalyst

293700023

$17.13

10

Was 293800013 Loctite 56765

219704454

$63.40

11

Hose | Without Catalyst

274001348

$21.61

12

Gear Clamp This part replaces 293650281.

293650202

$14.61

13

Fuel Tank Strap

293850093

$19.37

14

Hex. Screw 10-14 X 7/8”

211000023

$3.34

15

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$1.67

16

Flat Washer 8 mm, Stainless

234082600

$2.27

17

Front Formed Exhaust Pipe This part replaces 274001458.

274001714

$66.39

18

Tridon Clamp

293650179

$10.12

19

Tridon Clamp

293650179

$10.12

20

Resonator

274001366

$156.69

21

Neoprene Seal (1PAC=3M)

219704364

$26.09

22

Rubber Pad

293830126

$12.64

23

Exhaust Hose This part replaces 274001423.

274001711

$26.84

24

Tridon Clamp

293650179

$10.12
