01- Engine And Air Intake Silencer

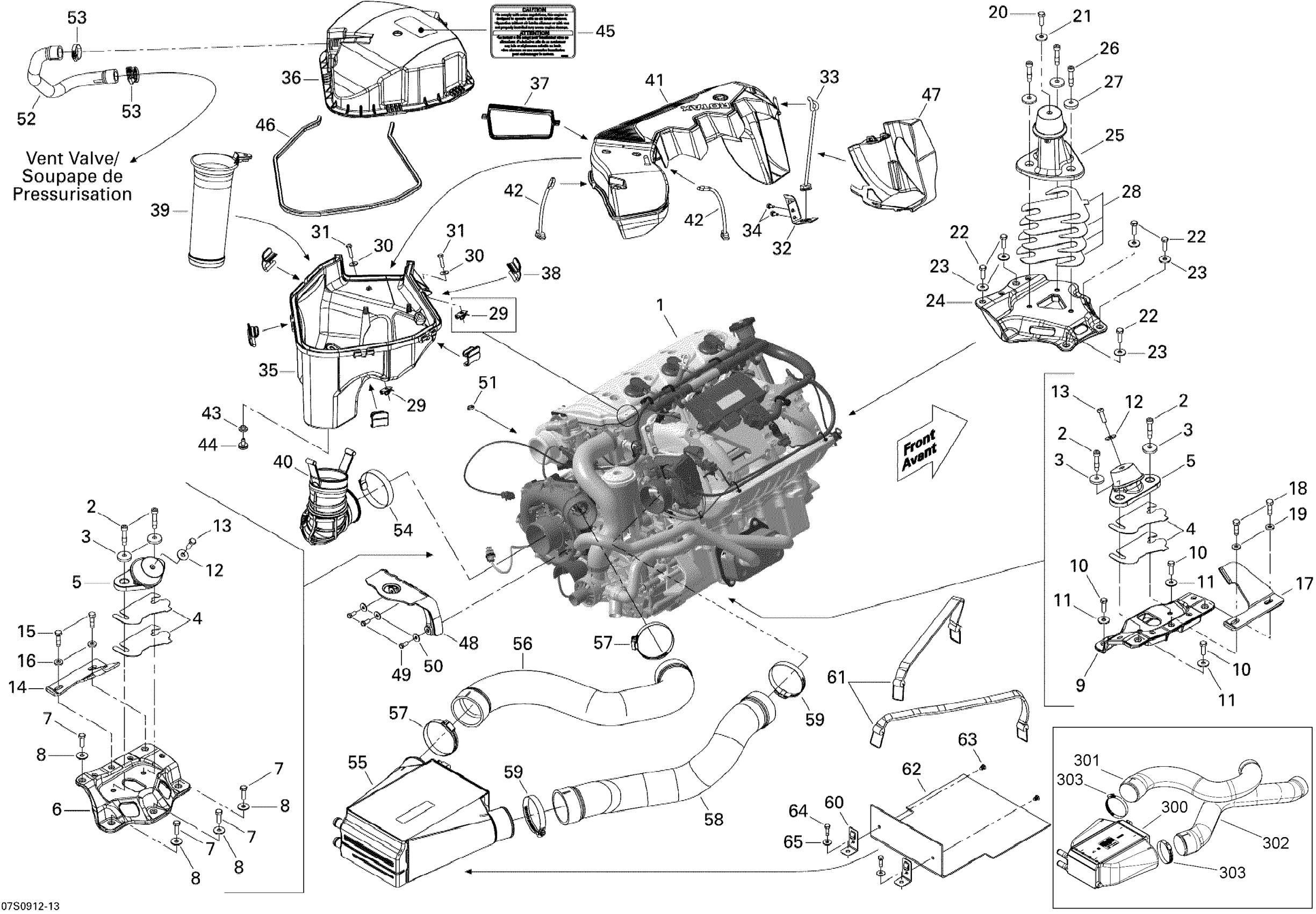

Sea-doo RXT iS 255, 2009 01- Engine And Air Intake Silencer Diagram
#
1
Engine Long Block This part replaces 420150338.
420150394
$4.00
Engine Long Block This part replaces 420150338.
420150394
$4.00
1
Engine Long Block This part replaces 420150338.
420150394
$4.00
2
Torx-Button M/S M8 X 40 Stlss S.Gri
250000845
$3.91
3
Cone Washer
250200018
$5.61
4
Shim 1.3 mm
270000762
$12.99
5
Engine Support Ass'y
270001081
$109.99
6
SPACER - Call your local BRP dealership
270000763
Unavailable
7
Hex. Screw M8 X 25, Scotch Grip
207382560
$2.43
8
Flat Washer 8 mm, Stainless
234082600
$2.43
9
Spacer
270000766
$78.49
10
Hex. Screw M8 X 25, Scotch Grip
207382560
$2.43
11
Flat Washer 8 mm, Stainless
234082600
$2.43
12
Flat Washer 8 mm, Stainless
234082600
$2.43
13
Hex. Screw M8 X 25, Scotch Grip
207382560
$2.43
14
LH STOPPER - Call your local BRP dealership
270000796
Unavailable
15
Hex. Screw M8 X 30, Scotch Grip
207383060
$1.90
16
Flat Washer M8.5 x 18
293050001
$3.07
17
RH Stopper
270000799
Unavailable
18
Hex. Screw M8 X 30, Scotch Grip
207383060
$1.90
19
Flat Washer M8.5 x 18
293050001
$3.07
20
Hex. Screw M8 X 25, Scotch Grip
207382560
$2.43
21
Flat Washer 8 mm, Stainless
234082600
$2.43
22
Hex. Screw M8 X 25, Scotch Grip
207382560
$2.43
23
Flat Washer 8 mm, Stainless
234082600
$2.43
24
SPACER - Call your local BRP dealership
270000767
Unavailable
25
Rubber Mount
270000886
$129.99
26
Torx-Button M/S M8 X 40 Stlss S.Gri
250000845
$3.91
27
Cone Washer
250200018
$5.61
28
Shim 1.3 mm
270000770
$16.49
29
Panel Nut M6 X 1
420942108
$14.28
30
Flat Washer M6, Stainless
234062600
$0.77
31
Hex. Screw M6 X 25, Scotch Grip | With Catalyst
207362560
$1.47
32
AIR BOX BRACKET - Call your local BRP dealership
273000260
Unavailable
33
Strap
273000261
$16.49
34
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
35
AIR SILENCER LOW - Call your local BRP dealership
273000250
Unavailable
36
Air Silencer Upper
273000249
$61.99
37
SEAL - Call your local BRP dealership
293250190
$15.49
38
Clip
269501718
$15.89
39
Intake Hose
273000359
$48.99
40
CONNECTOR HOSE - Call your local BRP dealership
273000251
Unavailable
41
INTAKE TUBE - Call your local BRP dealership
273000253
Unavailable
42
Strap
269501299
$19.49
43
GROMMET - Call your local BRP dealership
293720064
Unavailable
44
CHECK VALVE - Call your local BRP dealership
275500454
Unavailable
45
Caution Decal, Air Silencer
219902673
Unavailable
46
NEOPRENE SEAL - Call your local BRP dealership
293200123
Unavailable
47
DEFLECTOR - Call your local BRP dealership
273000271
Unavailable
48
AIR BOX SUPPORT - Call your local BRP dealership
270000735
Unavailable
49
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
50
Flat Washer M6, Stainless
234062600
$0.77
51
Tie Wrap 142 mm
293750002
$1.25
52
Formed Hose
270000807
$65.49
53
Tridon Gear Clamp
293650051
$4.19
54
Tridon Clamp
293650179
$11.49
55
Intercooler
276000179
Unavailable
56
Inlet Hose This part replaces 273000282.
273000404
$68.99
57
Tridon Clamp
293650179
$11.49
58
Outlet Hose This part replaces 273000300.
273000405
$90.99
59
Tridon Clamp
293650179
$11.49
60
STRAP CLIP 90 - Call your local BRP dealership
275500743
Unavailable
61
Fuel Tank Strap
293850093
$21.99
62
RUBBER PAD - Call your local BRP dealership | Engine 1503 HO 4-TEC
293830146
Unavailable
63
Black, Dart
293730016
$9.97
64
Hex. Flange Screw M6.81 x 20
243162060
$3.72
65
Flat Washer M6, Stainless
234062600
$0.77
