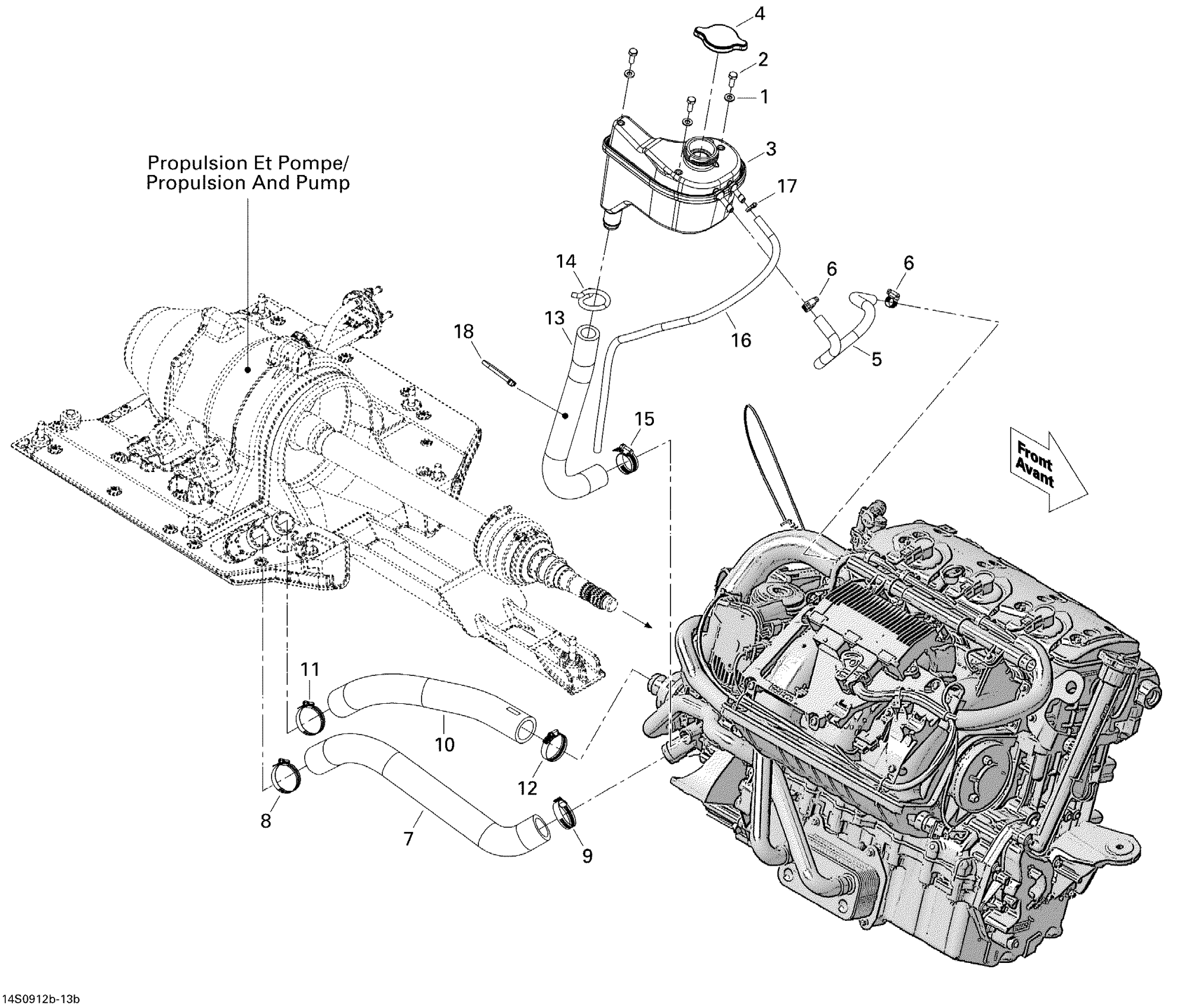

Sea-doo RXT iS 255, 2009 Cooling System 2 Diagram

#

Description
Price

1

Flat Washer M6, Stainless

234062600

$0.73

2

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.04

3

Coolant Tank

276000265

$117.88

4

Pressure Cap | Includes 720 to 720a

276000100

$23.85

5

Was 275500549 Hose 1/4"

219704357

$178.33

6

Tridon Gear Clamp

293650170

$2.00

7

Radiator Hose This part replaces 276000240.

276000491

$46.24

8

Tridon Gear Clamp

293650045

$5.18

9

Tridon Gear Clamp

293650045

$5.18

10

Radiator Hose

276000241

$30.57

11

Tridon Gear Clamp

293650045

$5.18

12

Tridon Gear Clamp

293650045

$5.18

13

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

14

Spring Clamp

293650115

$2.82

15

Tridon Gear Clamp

293650019

$5.52

16

Polyurethane Hose 10000Mm Long

219704410

$52.96

17

Tie Wrap 94 mm | 4X4

293750001

$0.96

18

Tie-Rap 180 mm

414115200

$0.10
