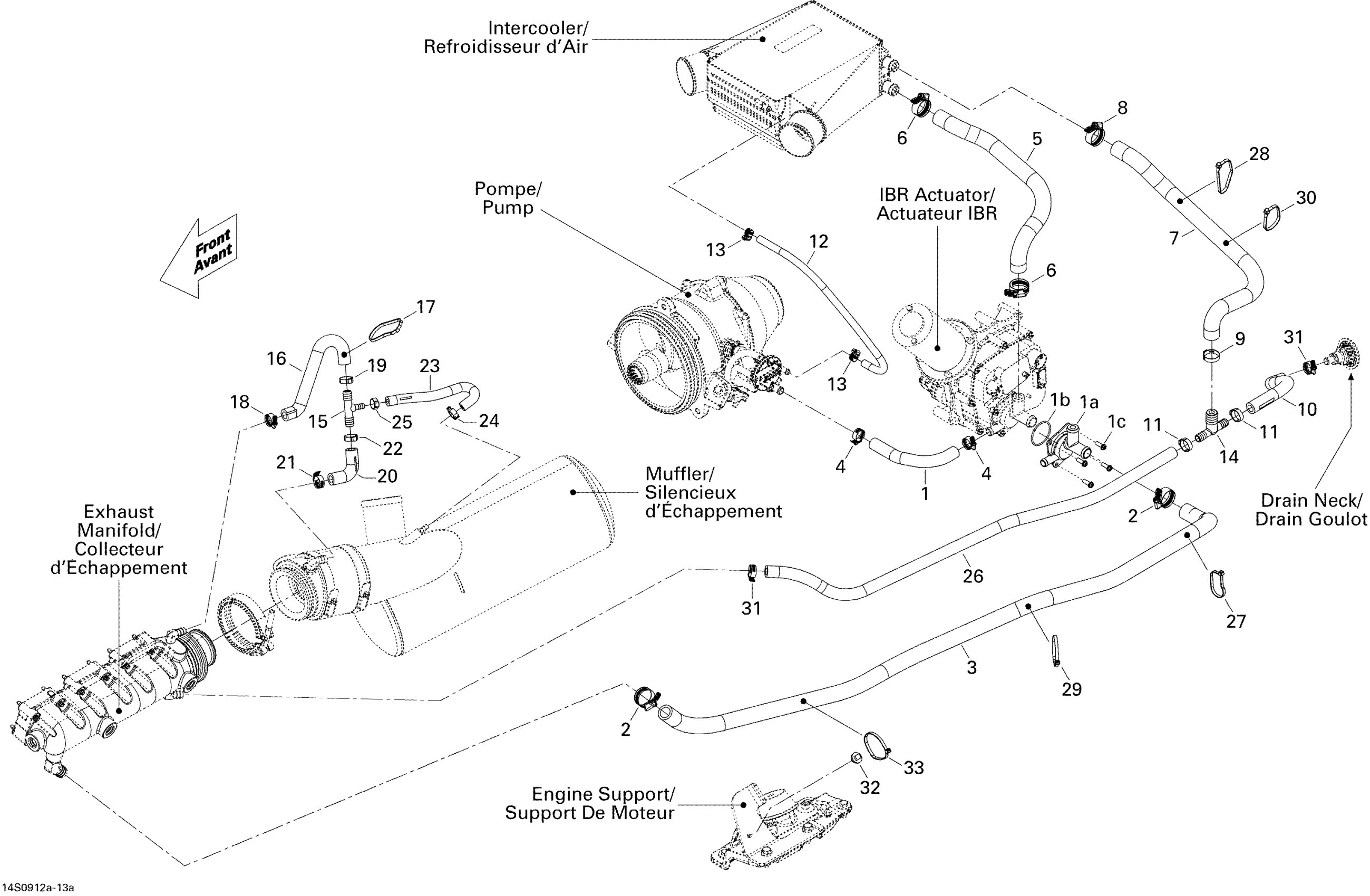

Sea-doo RXT iS 255, 2009 Cooling System 1 Diagram

#

Description
Price

1

FORMED HOSE - Call your local BRP dealership

276000237

Unavailable

1a

COOLING COVER - Call your local BRP dealership

278002473

Unavailable

1b

O-RING - Call your local BRP dealership

278002474

Unavailable

1c

Torx Screw, Stainless

278002475

$5.54

2

Tridon Gear Clamp

293650051

$4.15

3

FORMED HOSE - Call your local BRP dealership

276000238

Unavailable

4

Tridon Gear Clamp

293650172

$3.07

5

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

6

Tridon Gear Clamp

293650051

$4.15

7

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

8

Tridon Gear Clamp

293650051

$4.15

9

Crimp Clamp

293650099

$4.07

10

FORMED HOSE - Call your local BRP dealership

276000239

Unavailable

11

Oetiker Clamp

293650012

$5.67

12

HOSE 5/16 - Call your local BRP dealership

275500548

Unavailable

13

Tridon Gear Clamp

293650171

$2.82

14

T-Fitting

293710132

$10.88

15

T-Fitting

293710116

$16.39

16

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$17.88

17

Tie-Rap 180 mm

414115200

$0.10

18

Tridon Gear Clamp

293650172

$3.07

19

Oetiker Clamp

293650012

$5.67

20

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$17.88

21

Tridon Gear Clamp

293650172

$3.07

22

Oetiker Clamp

293650012

$5.67

23

Formed Hose | Without Catalyst

276000246

$17.13

24

Tridon Gear Clamp

293650171

$2.82

25

Oetiker Clamp | Europe

293650030

$4.96

26

Was 276000001 Hose 12.5 mm

219704394

$49.22

27

Tie Wrap 368 mm

293750008

$0.97

28

Tie Wrap 368 mm

293750008

$0.97

29

Tie Wrap 368 mm

293750008

$0.97

30

Tie Wrap 368 mm

293750008

$0.97

31

Tridon Gear Clamp

293650172

$3.07

32

Mount Dart

293730040

$0.99

33

Tie Wrap 368 mm

293750008

$0.97
