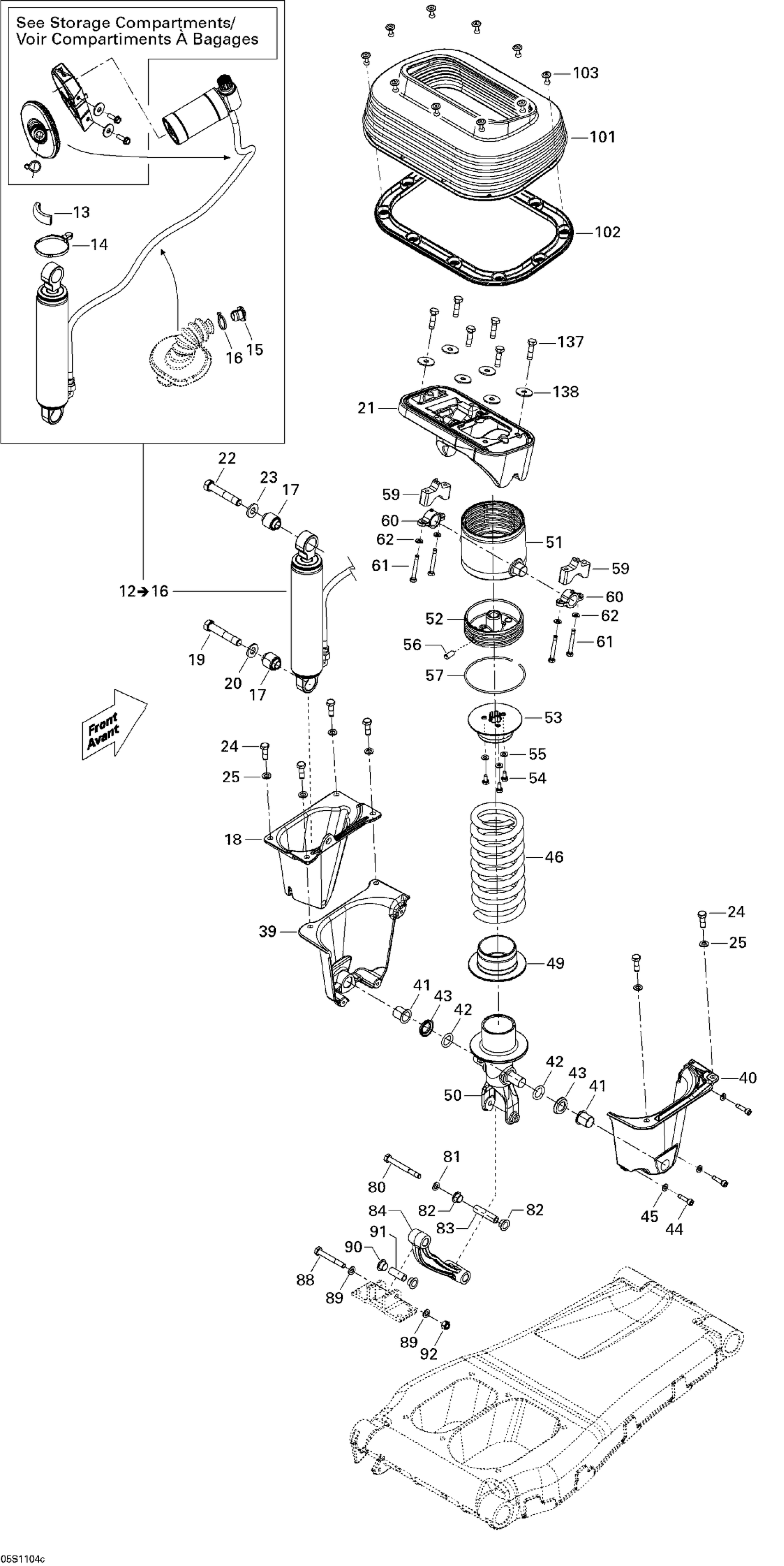

Sea-doo RXT aS X & aS XRS 260, 2011 Seat Suspension 3 Diagram

#

Description
Price

12

SHOCK - Call your local BRP dealership

279000324

Unavailable

13

Seal Tray 1000Mm Long

219704368

$12.30

14

Tie Rap 300mm

293750053

$1.99

15

GROMMET - Call your local BRP dealership

279000321

Unavailable

16

Tie Wrap 142 mm

293750002

$0.88

17

Bushing

279000051

$75.34

18

SHOCK LOWER HOLDER - Call your local BRP dealership

279000055

Unavailable

19

HEX. SCREW M12 X 70, SCOTCH GRIP - Call your local BRP dealership

207227060

Unavailable

20

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

21

Shock Upper Holder

279000057

$177.58

22

HEX. SCREW M12 X 70, SCOTCH GRIP - Call your local BRP dealership

207227060

Unavailable

23

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

24

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

25

Flat Washer M8, Stainless

234080600

$1.25

39

LH SPRING HOLDER - Call your local BRP dealership

279000070

Unavailable

40

RH SPRING HOLDER - Call your local BRP dealership

279000074

Unavailable

41

BUSHING - Call your local BRP dealership

279000103

Unavailable

42

O-RING - Call your local BRP dealership

279000104

Unavailable

43

BUSHING - Call your local BRP dealership

279000105

Unavailable

44

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.70

45

Stainless Flat Washer M6

234061600

$0.25

46

PAINTED SPRING - Call your local BRP dealership

279000180

Unavailable

49

LOWER SPRING PROTECTOR - Call your local BRP dealership

279000182

Unavailable

50

LOWER SPRING PROTECTOR - Call your local BRP dealership

279000188

Unavailable

51

Upper Spring Holder

279000189

$261.16

52

UPPER SPRING HOLDER - Call your local BRP dealership

279000191

Unavailable

53

Upper Spring Protector

279000183

$8.57

54

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

55

Stainless Flat Washer M6

234061600

$0.25

56

PLUNGER - Call your local BRP dealership

279000205

Unavailable

57

Retaining Ring

279000198

$12.52

59

E-COAT SPACER - Call your local BRP dealership

279000206

Unavailable

60

CLAMP - Call your local BRP dealership

279000106

Unavailable

61

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.51

62

Stainless Flat Washer M6

234061600

$0.25

80

HEX. SCREW M8 X 75, SCOTCH GRIP - Call your local BRP dealership

207287560

Unavailable

81

Flat Washer M8, Stainless

234080600

$1.25

82

BUSHING - Call your local BRP dealership

279000137

$7.10

83

SPACER - Call your local BRP dealership

279000138

Unavailable

84

SPRING ALIGNMENT ARM - Call your local BRP dealership

279000157

Unavailable

88

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086060

$1.79

89

Flat Washer M8, Stainless

234080600

$1.25

90

BUSHING - Call your local BRP dealership

279000137

$7.10

91

SPACER - Call your local BRP dealership

279000153

Unavailable

92

Hex. Elastic Nut M8 Brass

232581200

$1.29

101

CENTRAL BELLOWS - Call your local BRP dealership

279000008

Unavailable

102

Retaining Plate

279000010

$16.39

103

Pop Rivet 3/16"

293150123

$3.43

137

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.55

138

Flat Washer 8 mm, Stainless

250200175

$1.29
