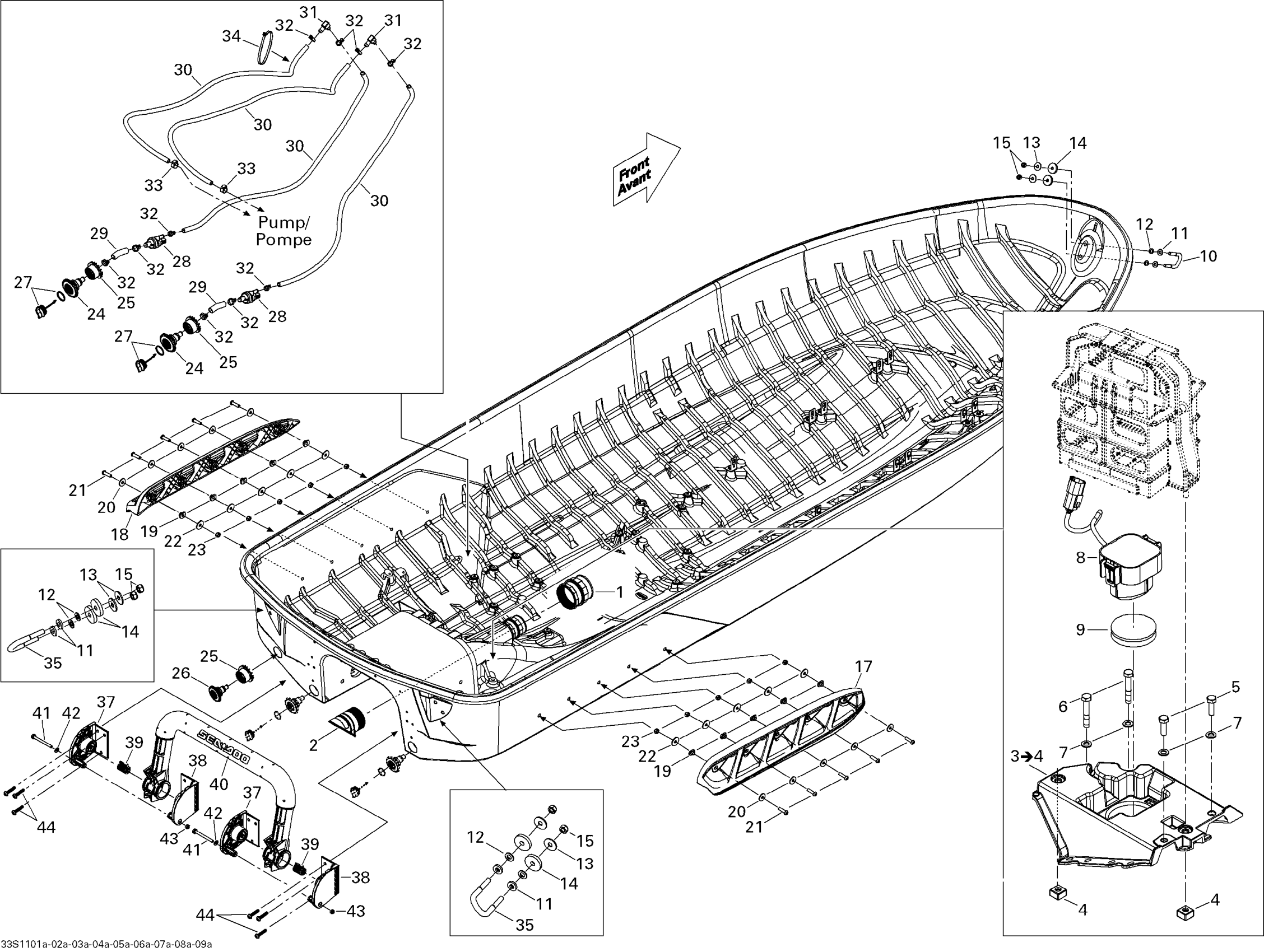

Sea-doo RXT aS X & aS XRS 260, 2011 Hull 1 Diagram

#

Description
Price

1

INNER HULL INSERT - Call your local BRP dealership

293450308

$21.99

2

Outer Hull Insert

293450309

$25.99

3

Battery Base Ass'y

278002343

$65.99

4

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

5

Hex. Flange Screw M6.81 X 30

243163060

$2.32

6

Hex. Flange Screw M6.81 X 55

243165560

$3.91

7

Flat Washer M8, Stainless

234080600

$1.48

8

Not Available As Spare Parts

XXX

Unavailable

9

Not Available As Spare Parts

XXX

Unavailable

10

U-Clamp

292000933

$59.49

11

Flat Washer M8.5 x 18

293050001

$3.07

12

Flat Washer 8 mm, Nylon

234081100

$1.39

13

Flat Washer 8 mm, Stainless

250200175

$3.06

14

Rubber Washer

293830037

$2.68

15

Hex. Elastic Nut M8 Brass

232581200

$2.22

17

RH Sponson

292001878

$93.99

18

LH Sponson

292001877

$93.99

19

Spacer Sponson

292001349

$10.99

20

Flat Washer 8 mm, Stainless

234082600

$2.43

21

Torx Screw M8 X 40, Stainless

250000452

$3.91

22

Flat Washer 8 mm, Stainless

250200175

$3.06

23

Hex. Elastic Nut M8 Brass

232581200

$2.22

24

Drain Neck Ass'y

292001315

$27.99

25

Bushing

292001371

$17.49

26

Drain Neck Ass'y

292001317

$27.99

27

Plug Drain Ass'y | Includes 310 to 310b

292002024

$13.49

28

Bailer Ass'y

292001310

$23.99

29

Was 275500008 Hose 12 mm

219704356

$20.49

30

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

31

ELBOW FITTING 90 - Call your local BRP dealership

293710117

Unavailable

32

Tie Wrap 94 mm | 4X4

293750001

$1.03

33

Oetiker Clamp | Europe

293650044

$5.09

34

Tie Wrap 368 mm

293750008

$1.04

35

U-Clamp

292000933

$59.49

37

Not Available As Spare Parts

XXX

Unavailable

38

Not Available As Spare Parts

XXX

Unavailable

39

Not Available As Spare Parts

XXX

Unavailable

40

Not Available As Spare Parts

XXX

Unavailable

41

Not Available As Spare Parts

XXX

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable

43

Not Available As Spare Parts

XXX

Unavailable

44

Not Available As Spare Parts

XXX

Unavailable
