Description

Price

1

HOOD ASS'Y KIT - Call your local BRP dealership | RXT aS This part replaces 269501843.

295501127

Unavailable

2

FRONT UPPER DEFLECTOR, DRAGON RED - Call your local BRP dealership

269501770

Unavailable

3

Hex. Flange Screw K40 X 16

241141660

$1.48

4

Flat Washer 4 mm, Stainless

234041600

$1.15

5

Spacer

291001203

$13.49

6

Left Latch

269501964

$30.99

7

Right Latch

269501965

$30.99

8

Shock Absorber | Includes 150 to 150d

269501664

$134.99

9

Shock Absorber End Fitting

269501984

$11.49

10

Tie Wrap 94 mm | 4X4

293750001

$1.03

11

RH Mirror Ass'y

269501920

$68.99

12

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

13

Black RH Mirror Housing

269502204

$58.99

14

LH Mirror Ass'y

269501918

$68.99

15

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

16

Black LH Mirror Housing

269502203

$58.99

17

Mirror Spring

269500453

$10.49

18

Elastic Stop Nut M6, Brass

232561200

$4.23

19

Rubber Bumper

293830135

$15.99

20

Not Available As Spare Parts

XXX

Unavailable

21

Not Available As Spare Parts

XXX

Unavailable

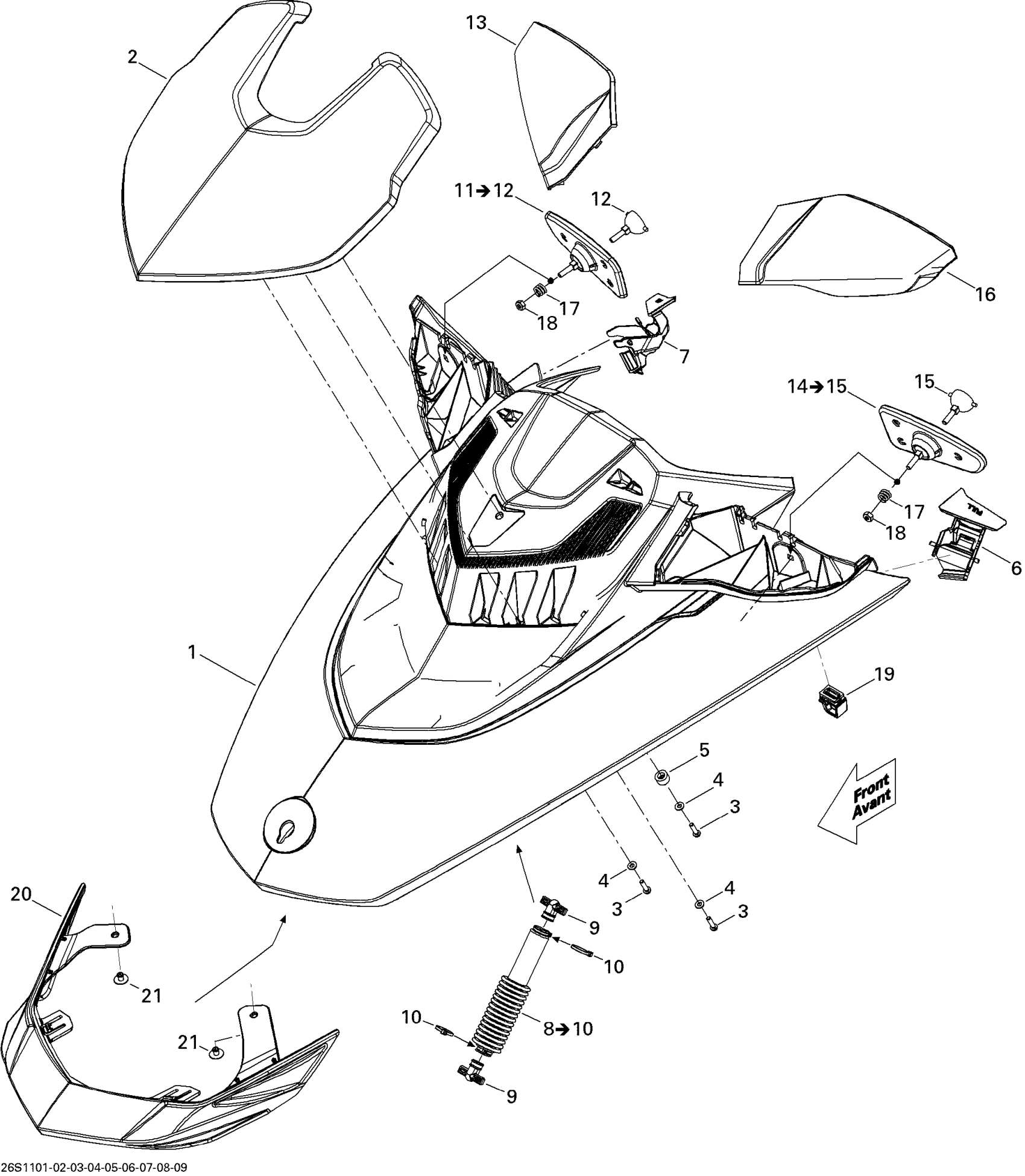

Sea-doo RXT aS X & aS XRS 260, 2011 09- Front Cover Diagram

HOOD ASS'Y KIT - Call your local BRP dealership | RXT aS This part replaces 269501843.

FRONT UPPER DEFLECTOR, DRAGON RED - Call your local BRP dealership

Hex. Flange Screw K40 X 16

Flat Washer 4 mm, Stainless

Spacer

Left Latch

Right Latch

Shock Absorber | Includes 150 to 150d

Shock Absorber End Fitting

Tie Wrap 94 mm | 4X4

RH Mirror Ass'y

MIRROR BALL JOINT - Call your local BRP dealership

Black RH Mirror Housing

LH Mirror Ass'y

MIRROR BALL JOINT - Call your local BRP dealership

Black LH Mirror Housing

Mirror Spring

Elastic Stop Nut M6, Brass

Rubber Bumper

Not Available As Spare Parts

Not Available As Spare Parts
