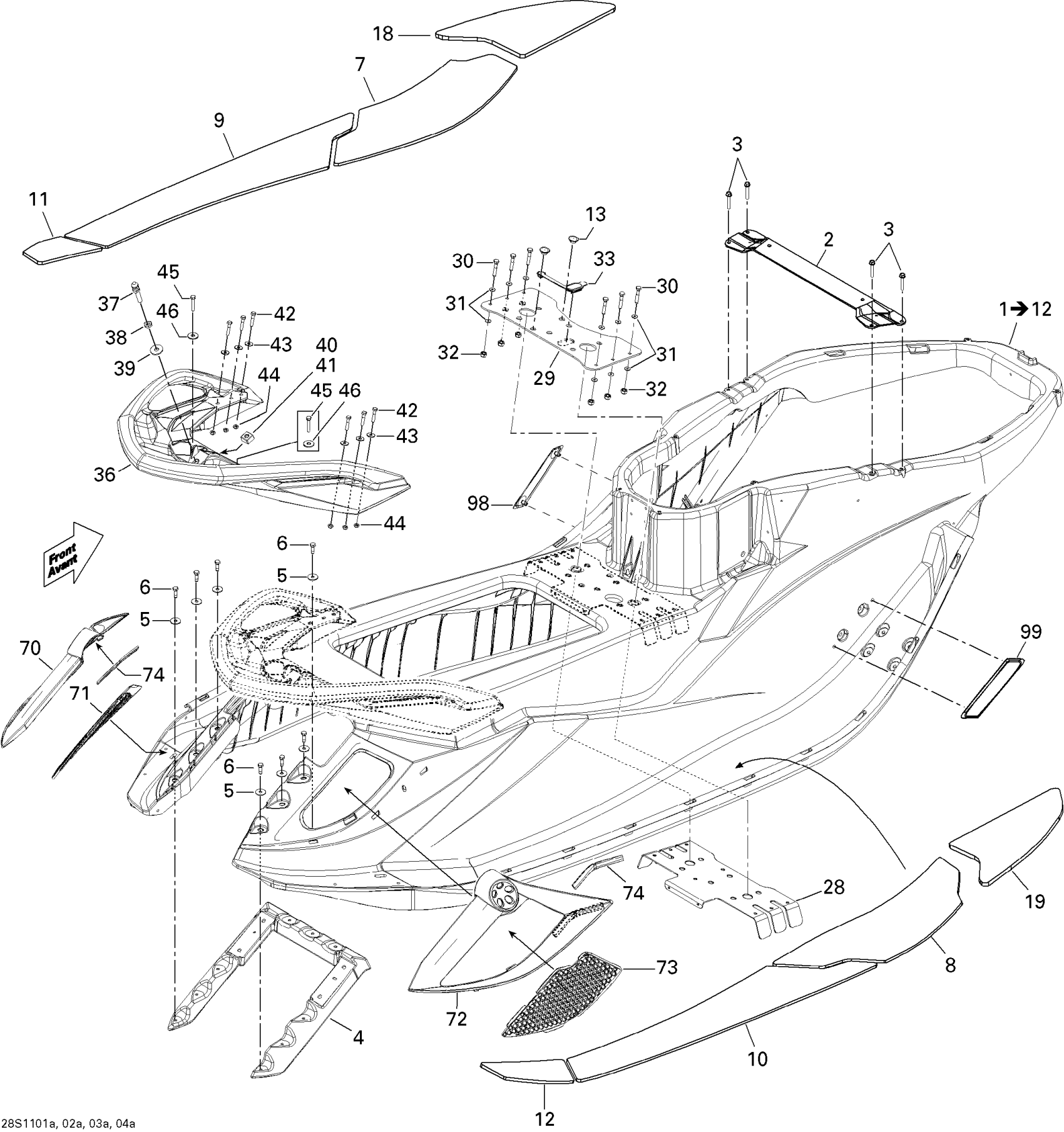

Sea-doo RXT aS X & aS XRS 260, 2011 Body, Rear View 1 Diagram

#

Description
Price

1

Upper Body Ass'y

291003462

$2.00

2

Module Stifner

291002778

$144.99

3

Plastite Hex. Screw M6.8 X 35

243163560

$4.44

4

REAR PIVOT ASS'Y - Call your local BRP dealership

279000214

Unavailable

5

Flat Washer M6.6 X 22

250200022

$2.72

6

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

7

Mat Kit - Call your local BRP dealership This part replaces 291002609.

295501187

Unavailable

8

ANTI SLIP MAT CTRL R - Call your local BRP dealership

291002610

Unavailable

9

Mat Kit - Call your local BRP dealership This part replaces 291002609.

295501187

Unavailable

10

Mat Kit - Call your local BRP dealership This part replaces 291002609.

295501187

Unavailable

11

ANTI SLIP MAT REAR L - Call your local BRP dealership

291002775

Unavailable

12

ANTI SLIP MAT REAR R - Call your local BRP dealership

291002776

Unavailable

13

CAP - Call your local BRP dealership

291002950

Unavailable

18

ANTI SLIP MAT FL - Call your local BRP dealership

291002607

Unavailable

19

RH Front Carpet

291002608

$8.47

28

LOWER CENTRAL REINFORCEMENT - Call your local BRP dealership

291003306

Unavailable

29

Not Available As Spare Parts

XXX

Unavailable

30

Hex. Screw M6 X 25

207162560

$1.47

31

Flat Washer M6, Stainless

234062600

$0.77

32

Elastic Stop Nut M6, Brass

232561200

$4.23

33

CAP - Call your local BRP dealership

293000118

Unavailable

36

GRAB HANDLE - Call your local BRP dealership This part replaces 269002130.

269002979

Unavailable

37

Seat Stud

291003878

$48.99

38

Hex. Jam Nut M10

232100600

$2.22

39

Flat Washer 10 mm, Stainless

234002600

$2.22

40

Elastic Nut M10 Housing

271001732

$9.11

41

Elastic Stop Nut M10, Brass

232501200

$2.64

42

Hex. Screw M6 X 30

207063060

$1.89

43

Flat Washer M6, Stainless

234062600

$0.77

44

Elastic Stop Nut M6, Brass

232561200

$4.23

45

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.89

46

Flat Washer M6.6 X 22

250200022

$2.72

70

LH LATERAL REAR TRIM - Call your local BRP dealership

291002739

Unavailable

71

LH Rear Side Grille

291002740

$20.99

72

RH Lateral Rear Trim

291002741

$26.49

73

RH Rear Side Grille

291002742

$20.99

74

Gasket, Neoprene 2000Mm Long

219704476

$15.36

98

LH FOOTREST COVER - Call your local BRP dealership

291002694

Unavailable

99

RH FOOTREST COVER - Call your local BRP dealership

291002695

Unavailable
