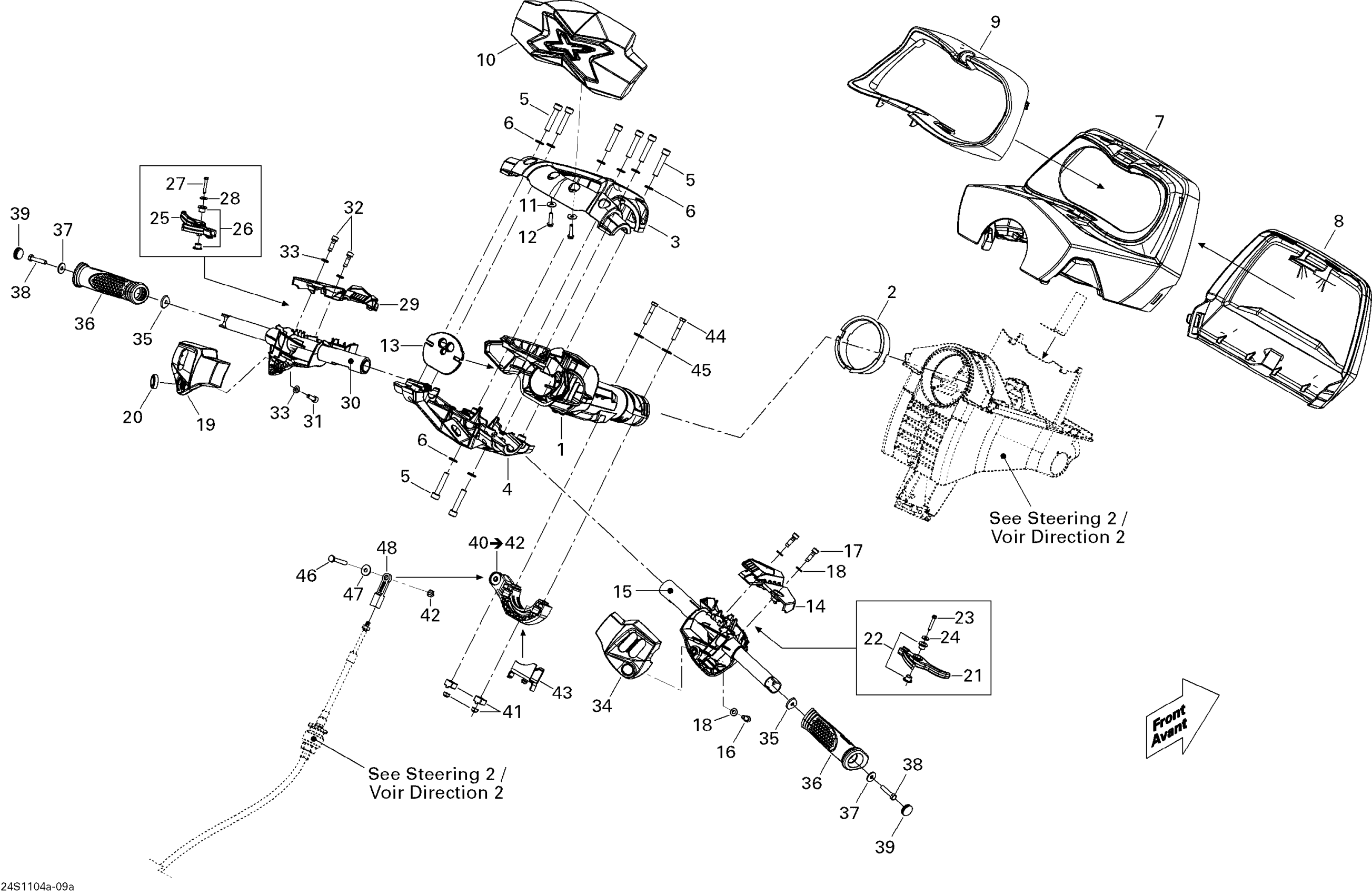

Sea-doo RXT aS X & aS XRS 260, 2011 Steering 1 Diagram

#

Description
Price

1

Steering Column

277001685

$249.99

2

Wear Ring

277001653

$12.17

3

FRONT EXTENSION BLOC - Call your local BRP dealership

277001909

Unavailable

4

REAR EXTENSION BLOC - Call your local BRP dealership

277001910

Unavailable

5

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

6

Flat Washer M8, Stainless

234080600

$1.48

7

Gauge Support

277001953

$61.99

8

Gauge Support Cover

277001613

$28.99

9

Gauge Trim, Black

277001630

$55.99

10

Handle Pad

277001683

$91.99

11

Flat Washer 5 mm, Stainless

234052600

$0.77

12

Hex. Screw 10-14 X 7/8”

211000023

$3.59

13

Grommet

293720086

$14.49

14

Upper Housing RH

277001688

$109.99

15

RH LOWER HOUSING - Call your local BRP dealership This part replaces 277001966.

277001951

Unavailable

16

Socket Screw M6 X 16

205061660

$1.48

17

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

18

Stainless Flat Washer M6

234061600

$0.33

19

LH HOUSING COVER - Call your local BRP dealership

277001794

Unavailable

20

Switch Knob, Red

277001802

$10.59

21

Throttle Handle

277001944

$38.99

22

Bushing

293900091

$4.52

23

Hex. Flange Screw K40 X 25

241142560

$2.64

24

Flat Washer 4 mm, Stainless

234042600

$1.15

25

Reverse Handle

277001945

$43.99

26

Bushing

293900091

$4.52

27

Hex. Flange Screw K40 X 25

241142560

$2.64

28

Flat Washer 4 mm, Stainless

234042600

$1.15

29

LH UPPER HOUSING - Call your local BRP dealership

277001686

Unavailable

30

LH LOWER HOUSING - Call your local BRP dealership

277001884

Unavailable

31

Socket Screw M6 X 16

205061660

$1.48

32

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

33

Stainless Flat Washer M6

234061600

$0.33

34

RH Housing Cover

277001718

$134.99

35

Insert Grip Handle

277001863

$8.83

36

Handlebar Grip

277002286

$19.99

37

Flat Washer M6, Stainless

234062600

$0.77

38

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

39

Black, Cap

277000203

$9.39

40

Support Ass'y | Includes 460 to 460b

277002179

$22.49

41

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

42

Elastic Stop Nut M6, Brass

232561200

$4.23

43

Spacer

277001654

$15.99

44

Hex. Screw M6 X 35

207163560

$1.49

45

Flat Washer M6, Stainless

234062600

$0.77

46

Hex. Screw M6 X 30

207063060

$1.89

47

Stainless Flat Washer M6

234061600

$0.33

48

Ball Joint

277001180

$35.99
