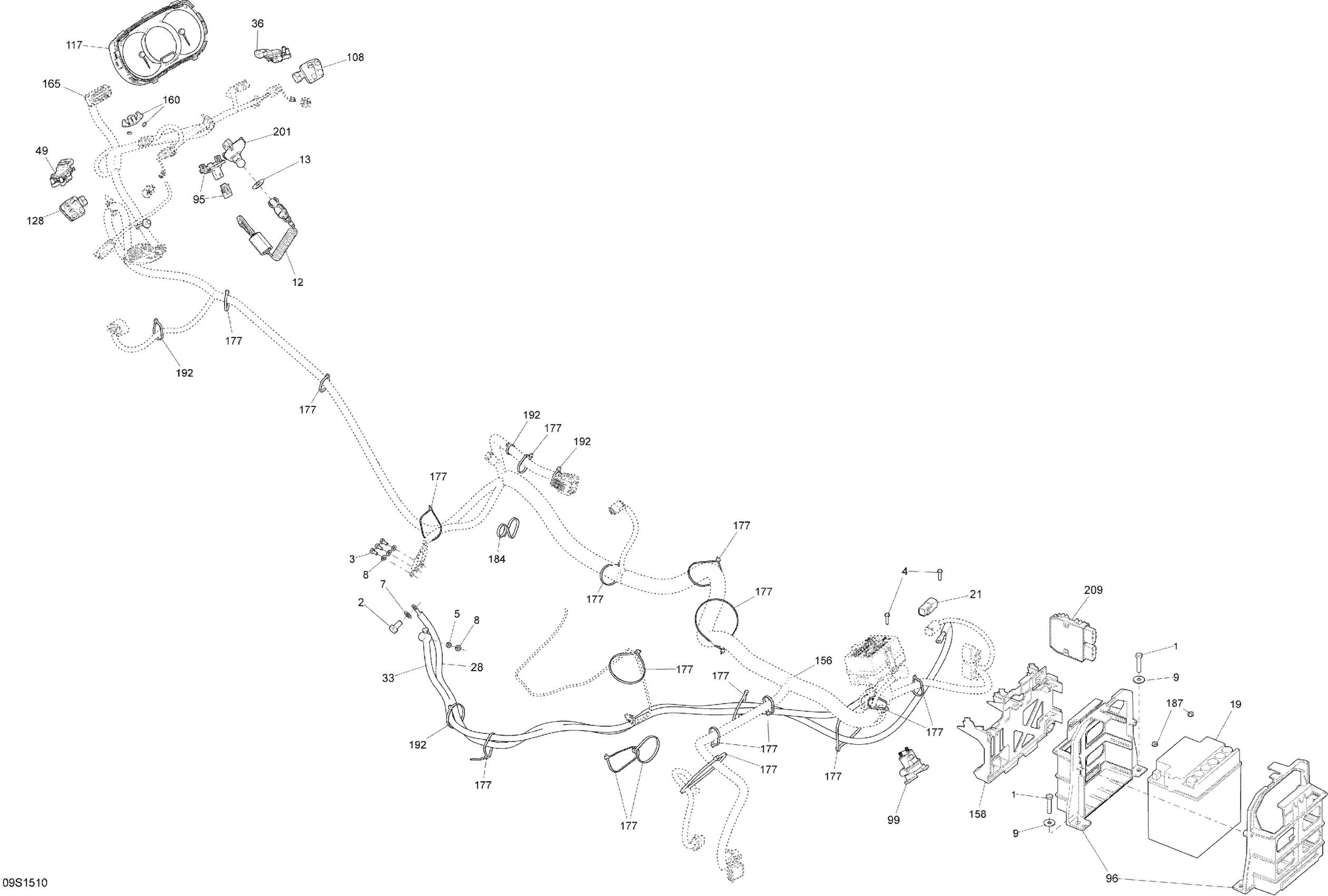

Sea-doo RXT 260 & RS, 2015 Electrical System _09S1510 Diagram

Hex. Screw M8 X 40

207184060

$1.85

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.29

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

Hex. Screw 10-14 X 7/8”

211000023

$2.91

Elastic Stop Nut M6, Brass

232561200

$3.51

Elastic Stop Nut M6, Brass

232561200

$3.51

Flat Washer 10 mm, Stainless

234000600

$1.07

Stainless Flat Washer M6

234061600

$0.25

Stainless Flat Washer M6

234061600

$0.25

Flat Washer 8 mm, Stainless

234082600

$1.98

Safety Lanyard Ass'y, RFID

278003400

$58.47

Safety Lanyard Ass'y, Learning / RFID

278003401

$58.47

Safety Nut (DESS Switch)

278002963

$2.72

Battery, 30 Amperes

278001882

$152.72

Diagnostic Connector

278002704

$15.57

Battery Ground Cable

278003269

$33.77

Cable-Starter

278003398

$50.02

Throttle Position Sensor

278002283

$94.22

LH Throttle Sensor

278002284

$108.18

O.T.A.S. Sensor Ass'y

278003009

$86.42

Battery Support

278003306

$14.92

Starter Relay

278003012

$35.07

Switch RH Mode/Set

278002602

$100.72

LCD Gauge | Model GTX LTD S 260

278003380

$746.17

Switch LH VTS/Sport/Eco | Package STD

278002767

$101.37

Main Harness (Fixed)

278003253

$969.77

Support

278003048

$17.52

O.T.A.S Actuator

278003537

$33.12

Steering Harness Ass'y

278003265

$245.67

Tie Wrap 368 mm

293750008

$0.85

Tie Rap 300mm

293750053

$1.99

Battery Bolt Kit

250000282

$2.95

Tie-Rap 180 mm

414115200

$0.09

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92
