- RXT 260 & RS, 2014
01- Engine _07S1406

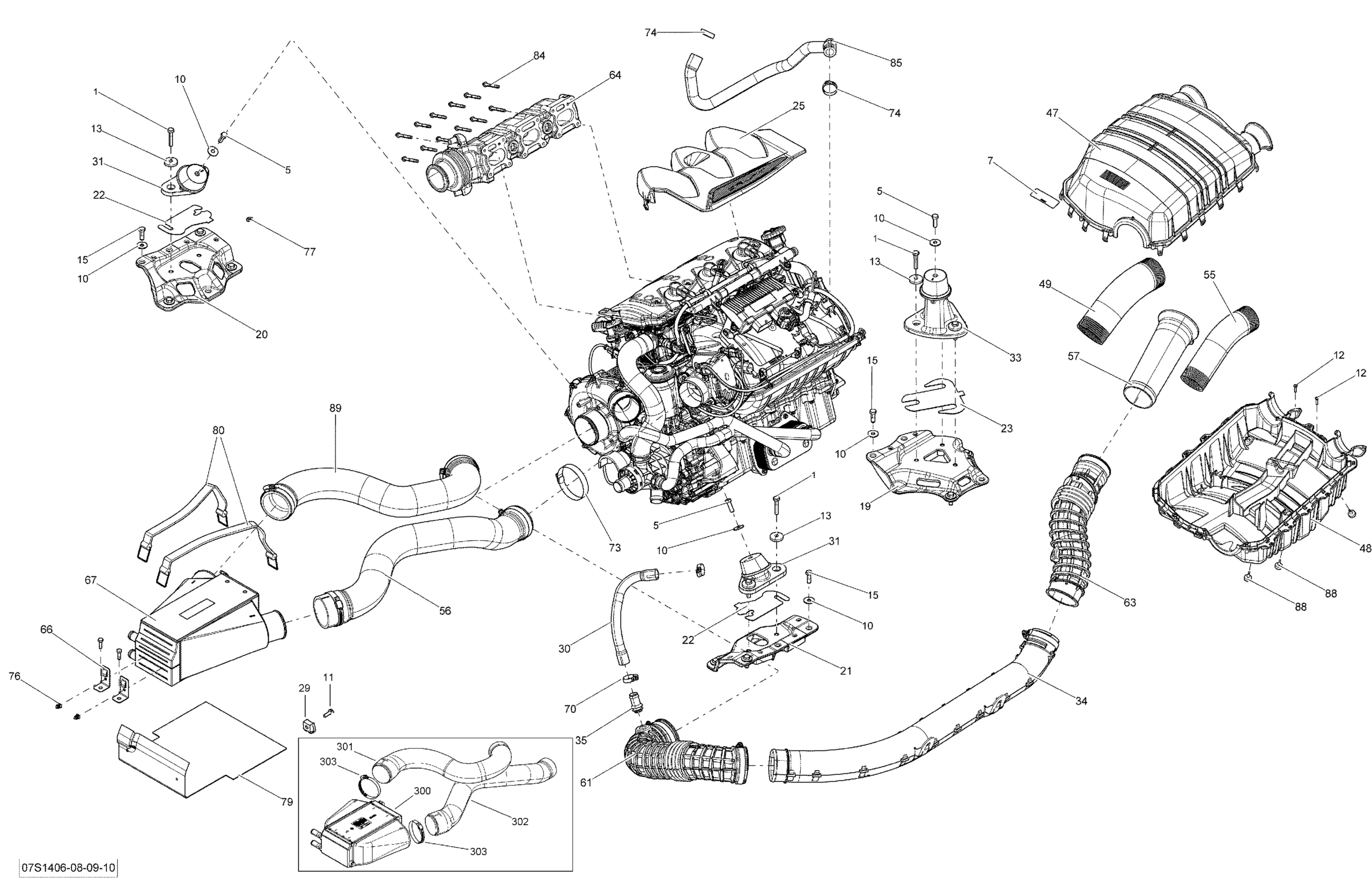

Sea-doo RXT 260 & RS, 2014 01- Engine _07S1406 Diagram
#
1
Hex. Screw M8 X 40, Scotch Grip
207284060
$2.24
5
Hex. Screw M8 X 25, Scotch Grip
207382560
$2.43
7
Air Silencer Notice Decal
219903177
Unavailable
10
Flat Washer 8 mm, Stainless
234082600
$2.43
11
Hex. Flange Screw M6.81 x 20
243162060
$3.72
12
Flange Torx Screw K40 X 16
250000287
$2.11
13
Cone Washer
250200018
$5.61
15
Hex. Screw M8 X 25, Scotch Grip | Hull LFI
250000525
$3.91
19
SPACER - Call your local BRP dealership
270000767
Unavailable
20
SPACER - Call your local BRP dealership
270000763
Unavailable
21
Spacer
270000766
$78.49
22
Shim 1.3 mm
270000762
$12.99
23
Shim 1.3 mm
270000770
$16.49
25
Engine Cover | Model RXT 260, RXT 260 RS
270000804
$71.99
29
Strap Anchor
270000854
$7.76
30
Formed Hose
270000864
$11.63
31
Engine Support Ass'y
270001081
$109.99
33
Rubber Mount
270000886
$129.99
34
HOSE INTAKE - Call your local BRP dealership | Engine 1500 HO ACE, 1630 ACE HO
273000233
Unavailable
35
Breather Valve
273000234
$14.49
47
SILENCER_INTAKE UP - Call your local BRP dealership | Model RXT 260, RXT 260 RS
273000372
Unavailable
48
SILENCER_INTAKE LWR - Call your local BRP dealership | Model RXT 260, RXT 260 RS
273000356
Unavailable
49
Air Silencer Hose
273000290
$22.49
55
AIR SILENCER TUBE - Call your local BRP dealership | Model RXT 260, RXT 260 RS
273000299
Unavailable
56
Outlet Hose This part replaces 273000300.
273000405
$90.99
57
Intake Hose
273000359
$48.99
61
Hose Intake, Rear | Model GTR
273000328
$54.99
63
HOSE CONNECTOR - Call your local BRP dealership | Engine 1500 HO ACE, 1630 ACE HO
273000322
Unavailable
64
Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.
296000422
$839.99
66
STRAP CLIP 90 - Call your local BRP dealership
275500743
Unavailable
67
Intercooler This part replaces 276000332.
276000415
$476.49
70
Tridon Gear Clamp
293650051
$4.19
73
Tridon Clamp
293650179
$11.49
74
Crimp Clamp
293650217
$8.47
76
Black, Dart
293730016
$9.97
77
Tie Wrap 142 mm
293750002
$1.25
79
RUBBER PAD - Call your local BRP dealership | Engine 1503 HO 4-TEC
293830146
Unavailable
80
Fuel Tank Strap
293850093
$21.99
84
Torx Flange Screw M6 X 45
420641198
$4.12
85
FORMED HOSE - Call your local BRP dealership
420822174
Unavailable
88
Rubber Stopper
708000759
$4.19
89
Inlet Hose This part replaces 273000282.
273000404
$68.99
300
Intercooler | Model GTR
276000397
$476.49
301
Formed Hose | Engine 1503 HO 4-TEC
273000361
$93.99
302
Formed Hose | Engine 1503 HO 4-TEC
273000362
$93.99
303
Tridon Gear Clamp
293650244
$9.29
