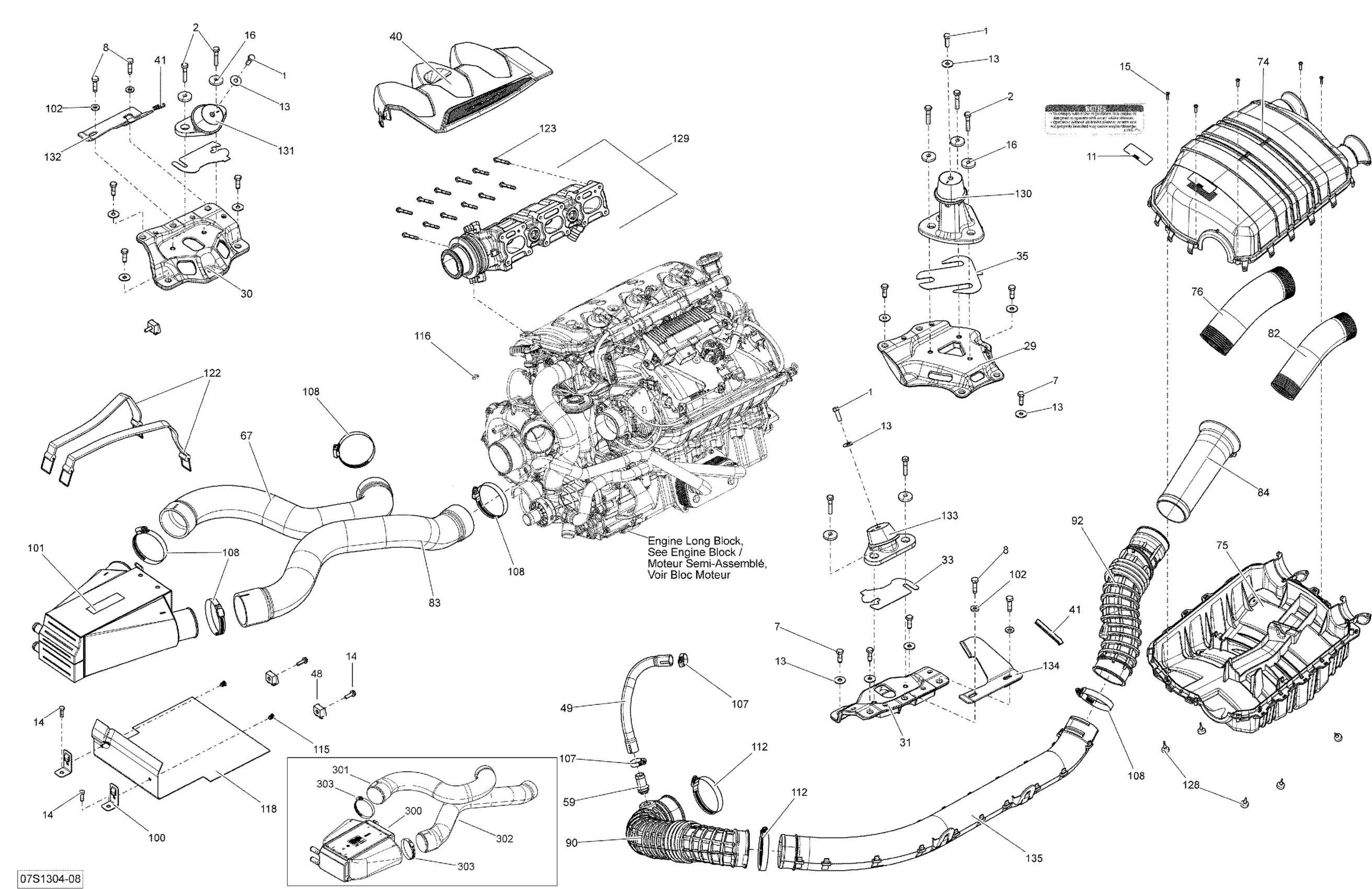

Sea-doo RXT 260 & RS, 2013 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

2

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

7

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.91

8

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.77

11

Air Silencer Notice Decal

219903177

Unavailable

13

Flat Washer 8 mm, Stainless

234082600

$2.43

14

Hex. Flange Screw M6.81 x 20

243162060

$3.72

15

Flange Torx Screw K40 X 16

250000287

$2.11

16

Cone Washer

250200018

$5.61

29

SPACER - Call your local BRP dealership

270000767

Unavailable

30

SPACER - Call your local BRP dealership

270000763

Unavailable

31

Spacer

270000766

$78.49

33

Shim 1.3 mm

270000762

$12.99

35

Shim 1.3 mm

270000770

$16.49

40

Engine Cover | Model RXT 260, RXT 260 RS

270000804

$71.99

41

TRIM, BLACK - Call your local BRP dealership

204610371

Unavailable

48

Strap Anchor

270000854

$7.76

49

Formed Hose

270000864

$11.63

59

Breather Valve

273000234

$14.49

67

Inlet Hose This part replaces 273000282.

273000404

$68.99

74

SILENCER_INTAKE UP - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000372

Unavailable

75

SILENCER_INTAKE LWR - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000356

Unavailable

76

Air Silencer Hose

273000290

$22.49

82

AIR SILENCER TUBE - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000299

Unavailable

83

Outlet Hose This part replaces 273000300.

273000405

$90.99

84

Intake Hose

273000359

$48.99

90

Hose Intake, Rear | Model GTR

273000328

$54.99

92

HOSE CONNECTOR - Call your local BRP dealership | Engine 1500 HO ACE, 1630 ACE HO

273000322

Unavailable

100

STRAP CLIP 90 - Call your local BRP dealership

275500743

Unavailable

101

Intercooler This part replaces 276000332.

276000415

$476.49

102

Flat Washer M8.5 x 18

293050001

$3.07

107

Tridon Gear Clamp

293650051

$4.19

108

Tridon Clamp

293650179

$11.49

112

Tridon Clamp

293650179

$11.49

115

Black, Dart

293730016

$9.97

116

Tie Wrap 142 mm

293750002

$1.25

118

RUBBER PAD - Call your local BRP dealership | Engine 1503 HO 4-TEC

293830146

Unavailable

122

Fuel Tank Strap

293850093

$21.99

123

Torx Flange Screw M6 X 45

420641198

$4.12

128

Rubber Stopper

708000759

$4.19

129

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$839.99

130

Rubber Mount

270000886

$129.99

131

Engine Support Ass'y

270001081

$109.99

132

LH STOPPER - Call your local BRP dealership

270000796

Unavailable

133

Engine Support Ass'y

270001081

$109.99

134

RH Stopper

270000799

Unavailable

135

HOSE INTAKE - Call your local BRP dealership | Engine 1500 HO ACE, 1630 ACE HO

273000233

Unavailable

300

Intercooler | Model GTR

276000397

$476.49

301

Formed Hose | Engine 1503 HO 4-TEC

273000361

$93.99

302

Formed Hose | Engine 1503 HO 4-TEC

273000362

$93.99

303

Oetiker Clamp | Europe

293650044

$5.09
