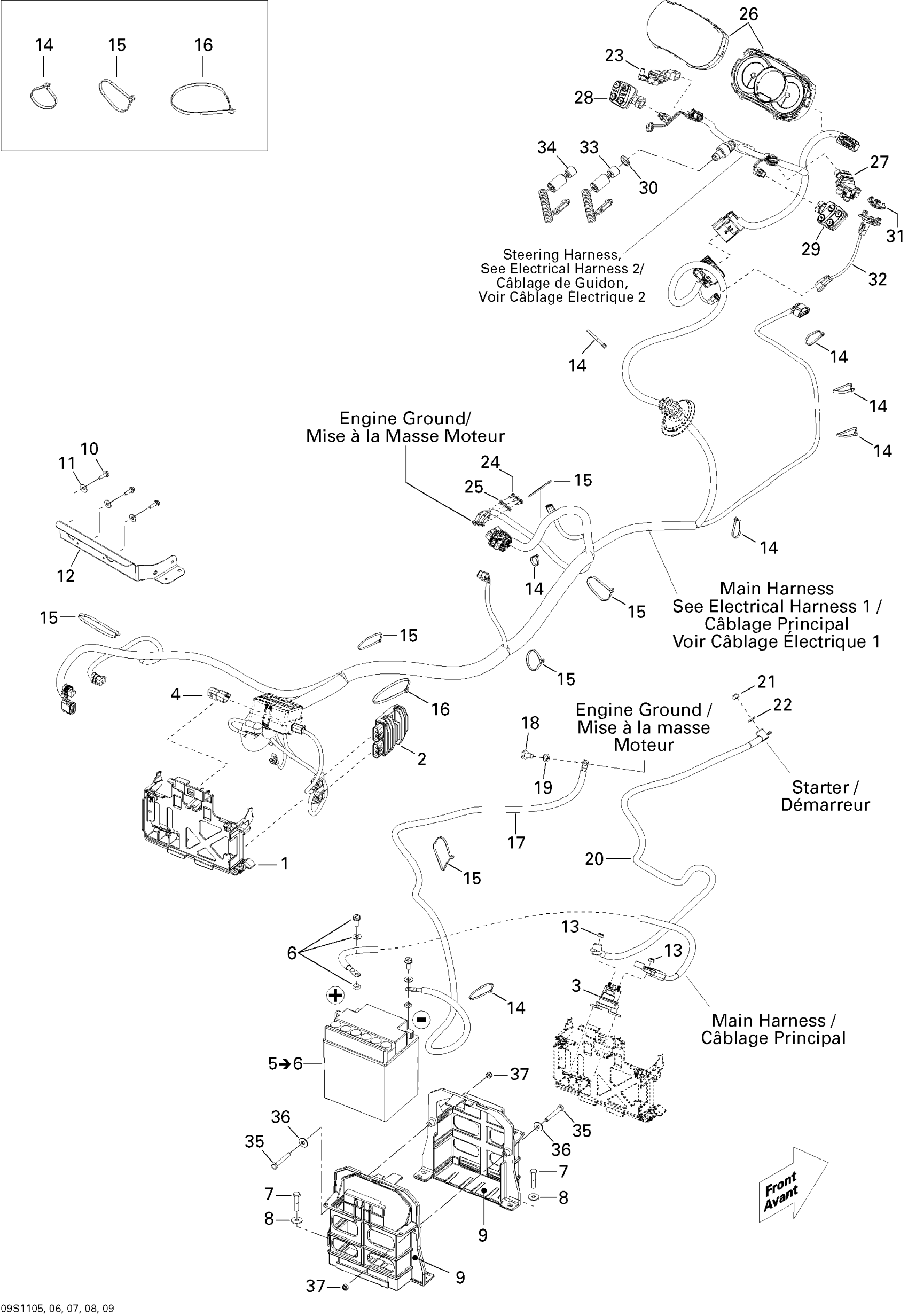

Sea-doo RXT 260 (RS), 2012 Electrical System Diagram

#

Description
Price

1

Support

278003048

$21.99

2

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

3

Starter Relay

278003012

$42.49

4

Diagnostic Connector

278002704

$19.49

5

Battery, 30 Amperes

278001882

$184.01

6

Battery Bolt Kit

250000282

$7.29

7

Hex. Screw M8 X 40

207184060

$2.22

8

Flat Washer 8 mm, Stainless

234082600

$2.43

9

Battery Support

278003306

$20.99

10

Hex. Flange Screw M6.81 x 20

243162060

$3.72

11

Flat Washer M6, Stainless

234062600

$0.77

12

SUPPORT - Call your local BRP dealership

278003293

Unavailable

13

Elastic Stop Nut M6, Brass

232561200

$4.23

14

Tie-Rap 180 mm

414115200

$0.11

15

Tie Wrap 368 mm

293750008

$1.04

16

Tie Rap, 533 mm

293750047

$2.09

17

Battery Ground Cable

278003269

$41.49

18

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

19

Flat Washer 10 mm, Stainless

234000600

$1.46

20

Cable-Starter

278003398

$63.99

21

Elastic Stop Nut M6, Brass

232561200

$4.23

22

Stainless Flat Washer M6

234061600

$0.33

23

LH Throttle Sensor

278002284

$119.99

24

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

25

Stainless Flat Washer M6

234061600

$0.33

26

Cadran Info *Lcd Gauge This part replaces 278002659.

278002761

$1.00

27

Throttle Position Sensor

278002283

$119.99

28

Switch

278002604

$126.99

29

Switch RH Mode/Set

278002602

$126.99

30

Safety Nut (DESS Switch)

278002963

$3.28

31

O.T.A.S Actuator

278003537

$42.99

32

O.T.A.S. Sensor Ass'y

278003009

$109.99

33

Safety Lanyard, Antitheft

278002483

$58.49

34

Safety Lanyard, Learning Key

278002484

$56.99

35

Hex. Screw M6 X 45

207164560

$1.89

36

Flat Washer M6, Stainless

234062600

$0.77

37

Elastic Stop Nut M6, Brass

232561200

$4.23
