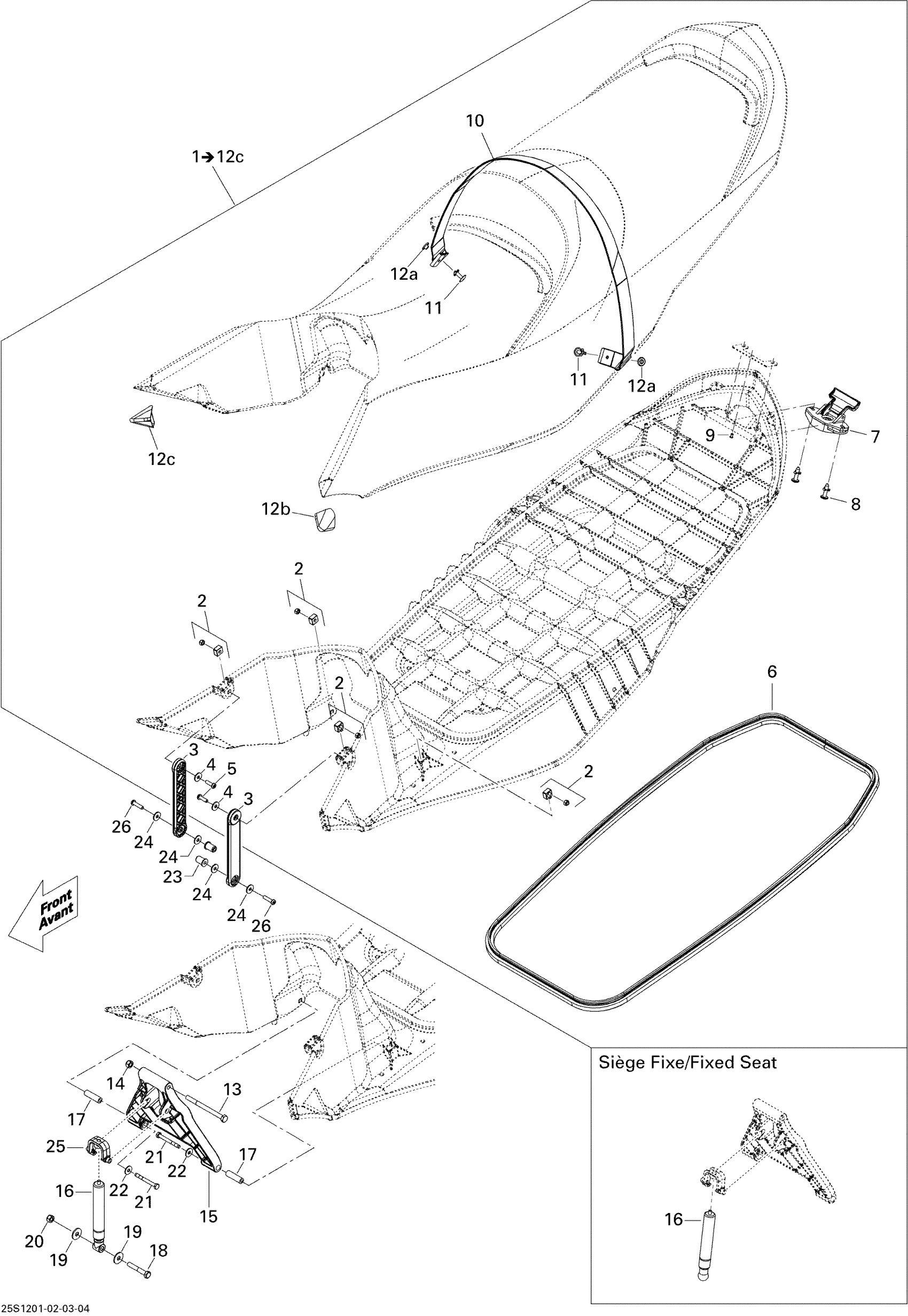

Sea-doo RXT 260 (RS), 2012 Seat Diagram

#

Description
Price

1

Seat Ass'y

269002479

$629.99

2

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

3

Lateral Arm

296000372

$18.49

4

Flat Washer M6, Stainless

234062600

$0.77

5

SOCKET SCREW M6 X 20 - Call your local BRP dealership

205462060

Unavailable

6

Was 293200062 Seal

219704366

$76.49

7

Latch Ass'y

269700116

$36.99

8

Rivet 1/4"

293150151

$8.04

9

Pop Rivet 1/8

293150143

$0.48

10

SEAT STRAP - Call your local BRP dealership

269002361

Unavailable

11

Rivet | Model-T3

293150067

$2.89

12a

Grommet

293720067

$12.99

12b

LH Seat Protector

269002184

$8.19

12c

RH SEAT PROTECTOR - Call your local BRP dealership

269002185

Unavailable

13

Hex. Screw M8 X 150

231085060

$6.77

14

Hex. Elastic Nut M8 Brass

232581200

$2.22

15

Center Arm

269501699

$24.99

16

Shock

269001684

$65.99

17

Spacer

269001589

$18.49

18

Not Available As Spare Parts

XXX

Unavailable

19

Not Available As Spare Parts

XXX

Unavailable

20

Not Available As Spare Parts

XXX

Unavailable

21

Hex. Screw M6 X 55, Scotch Grip | Except Europe

207265560

$7.41

22

Flat Washer M6, Stainless

234062600

$0.77

23

Expansion Nut M6 X 1

250100150

$2.11

24

Flat Washer M6, Stainless

234062600

$0.77

25

End Fitting

269002077

$16.85

26

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11
