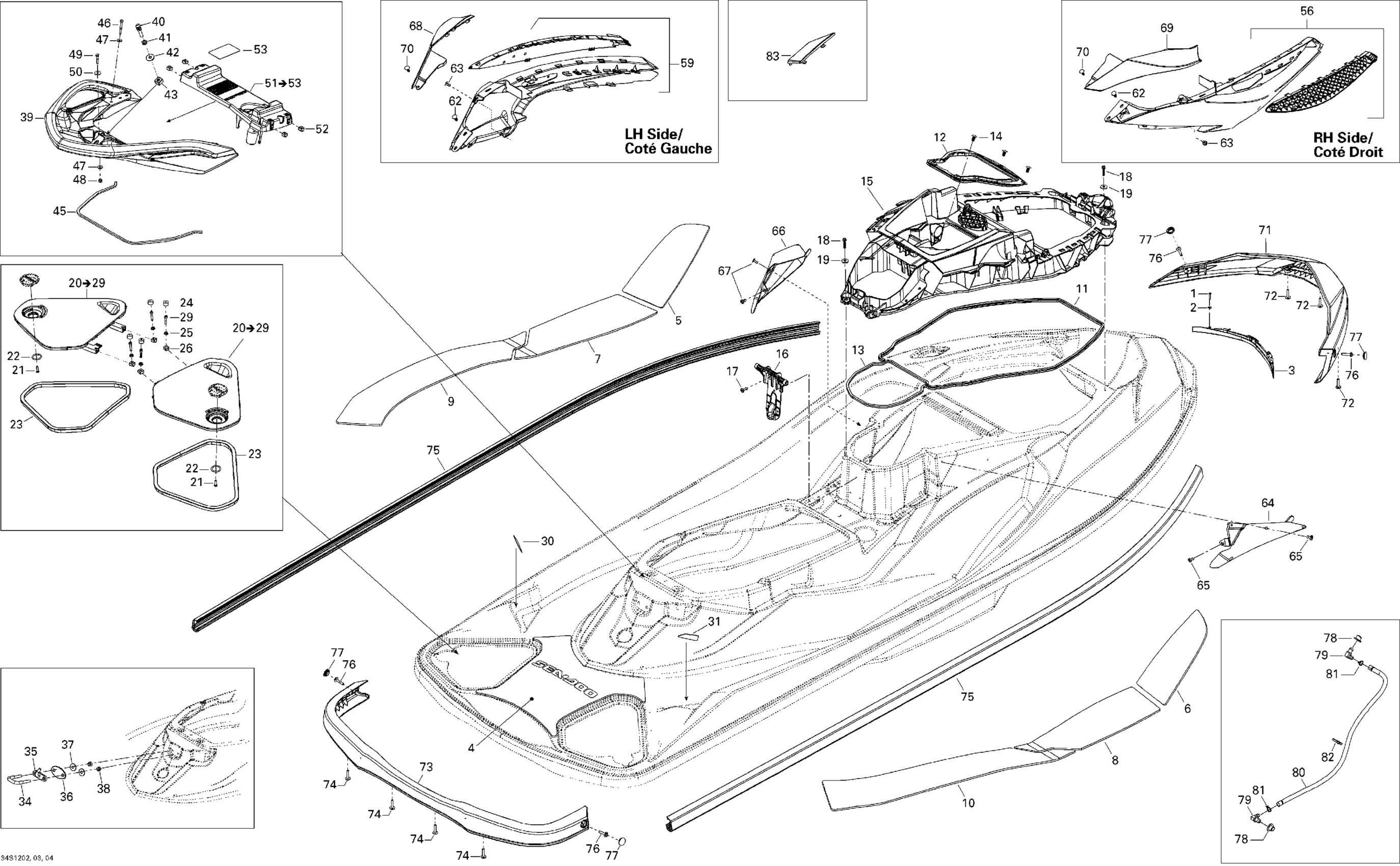

Sea-doo RXT 260 (RS), 2012 Body Diagram

#

Description
Price

1

Flat Washer 4 mm, Stainless

234042600

$0.92

2

Hex. Flange Screw K40 X 25

241142560

$2.17

3

DECK NOSE - Call your local BRP dealership

291002818

$13.12

4

Rear Plat-Form Carpet

291002625

$57.82

5

LH Front Carpet

291002930

$5.73

6

ANTI SLIP MAT FR - Call your local BRP dealership

291002931

Unavailable

7

LH Center Carpet

291002932

$24.67

8

ANTI SLIP MAT CTRL R - Call your local BRP dealership

291002933

Unavailable

9

LH Rear Carpet

291002934

$41.76

10

RH Rear Carpet

291002935

$41.76

11

SEAL - Call your local BRP dealership

296000342

Unavailable

12

NEOPRENE SEAL - Call your local BRP dealership

293250365

Unavailable

13

NEOPRENE SEAL - Call your local BRP dealership

293250200

Unavailable

14

Black Dart

293730010

$0.81

15

Front Module

291004595

$251.46

16

Mounting Case Absorber

269002162

$30.52

17

Pop Rivet 3/16"

293150123

$3.43

18

Plastite Hex. Screw M6.8 X 35

243163560

$3.61

19

Flat Washer 8 mm, Stainless

234082600

$1.98

20

LH Access Cover

291003686

$133.22

20

RH ACCESS COVER - Call your local BRP dealership

291003687

Unavailable

21

Hex. Screw 10-14 X 7/8”

211000023

$2.91

22

O-Ring

293300121

$6.18

23

Was 293200133 Neoprene Seal

219704367

$24.60

24

Rubber Bumper

291003688

$10.21

25

Hex. Flange Nut M6

233161600

$0.91

26

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

29

Socket Head Screw M6 X 30

205063060

$2.29

30

LH Nonskid

291002626

$11.15

31

RH NONSKID - Call your local BRP dealership

291002937

Unavailable

34

U-Clamp

292000933

$32.47

35

Hook | Package LTD

291002351

$67.13

36

Black, Finition Plate

291001386

$8.57

37

Flat Washer 8 mm, Stainless

234082600

$1.98

38

Hex. Elastic Nut M8 Brass

232581200

$1.29

39

Black Rear Handle

291004622

$76.02

40

Seat Stud

291003878

$44.00

41

Hex. Jam Nut M10

232100600

$1.85

42

Flat Washer 10 mm, Stainless

234002600

$1.85

43

Elastic Nut M10 Housing

271001732

Unavailable

45

Gasket 3000Mm Long

219704378

$22.07

46

Hex. Screw M6 X 50

207065060

$1.85

47

Flat Washer M6, Stainless

234062600

$0.64

48

Elastic Stop Nut M6, Brass

232561200

$3.51

49

Hex. Screw M6 X 35

207063560

$1.85

50

Flat Washer M6.6 X 22

250200022

$1.87

51

LOWER DECK ASS'Y - Call your local BRP dealership | Includes 750 to 750c

291002947

Unavailable

52

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

53

CAUTION ENGINE OIL - Call your local BRP dealership

219903184

Unavailable

56

FR RH COSM ASS - Call your local BRP dealership This part replaces 291003509.

291004032

Unavailable

59

FR LH COSM ASS - Call your local BRP dealership This part replaces 291003512.

291004037

Unavailable

62

Black, Dart

293730006

$0.81

63

Pop Rivet 3/16"

293150123

$3.43

64

RH SEAT PAD, BLACK - Call your local BRP dealership

291003987

Unavailable

65

Pop Rivet 3/16"

293150123

$3.43

66

LH SEAT PAD, BLACK - Call your local BRP dealership

291003988

Unavailable

67

Pop Rivet 3/16"

293150123

$3.43

68

LH UPPER BODY CAP COVER - Call your local BRP dealership

291003515

Unavailable

69

RH UPPER BODY CAP COVER - Call your local BRP dealership

291003516

Unavailable

70

Black, Dart

293730006

$0.81

71

Front Bumper

291004275

$63.67

72

Hexagonal Cap Screw M6 X35

250000399

$3.61

73

Rear Bumper

291004274

$96.17

74

Hexagonal Cap Screw M6 X35

250000399

$3.61

75

Lateral Bumper

291003872

$73.10

76

Hexagonal Cap Screw M6 X35

250000399

$3.61

77

Bumber Cap | Except Cab Package

291002744

$10.21

78

Grommet

513033435

$3.73

79

Elbow Fitting

414523600

$3.99

80

Was 275500008 Hose 12 mm

219704356

$5.94

81

Tie Wrap 94 mm | 4X4

293750001

$0.83

82

Tie-Rap 180 mm

414115200

$0.09

83

FRONT REWINDER CAP - Call your local BRP dealership

291002756

Unavailable
