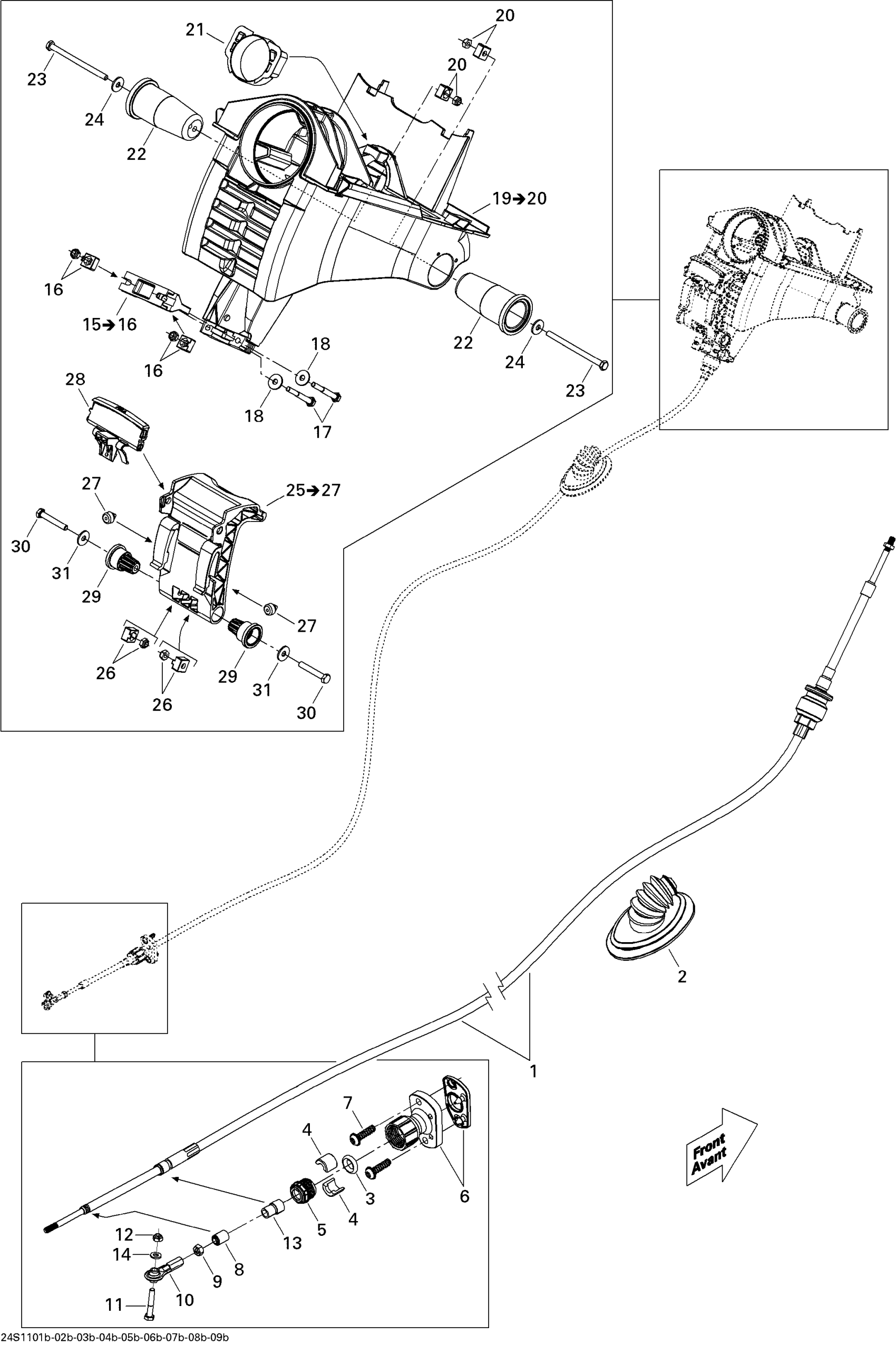

Sea-doo RXT 260 (RS), 2012 Steering 2 Diagram

#

Description
Price

1

Steering Cable

277001602

$285.99

2

Not Available As Spare Parts

XXX

Unavailable

3

Rubber Washer

293830063

$1.90

4

Half Ring

277001527

$10.37

5

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

6

Cable Adaptor Ass'y

277001881

$19.99

7

Torx Screw Plastite M6

250000466

$6.98

8

Wiper Rod

277001582

$11.11

9

Hex. Nut 1/4"-28

211100056

$0.69

10

Ball Joint

277000775

$51.99

11

Hex. Screw M6 X 35

207063560

$2.22

12

Elastic Stop Nut M6, Brass

232561200

$4.23

13

End Piece

277001583

$14.49

14

Stainless Flat Washer M6

234061600

$0.33

15

Thrust Support Ass'y

277001655

$28.99

16

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

17

Hex. Screw M6 X 50

207165060

$0.92

18

Flat Washer M6, Stainless

234062600

$0.77

19

Steering Support | Includes 710 to 710b

277001942

$114.99

20

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

21

Wear Ring

277002318

$15.99

22

Steering Support Pivot

277001605

$20.99

23

Hex Screw M6 X 80

207168060

$6.77

24

Flat Washer M6, Stainless

234062600

$0.77

25

Handle Ass'y | Includes 780 to 780c

277001658

$132.49

26

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

27

Rubber Bumper

293830005

$8.09

28

LOCK - Call your local BRP dealership

277001616

$18.99

29

Pivot

277001652

$15.99

30

Hex. Screw M6 X 40

207064060

$1.69

31

Flat Washer M6, Stainless

234062600

$0.77
