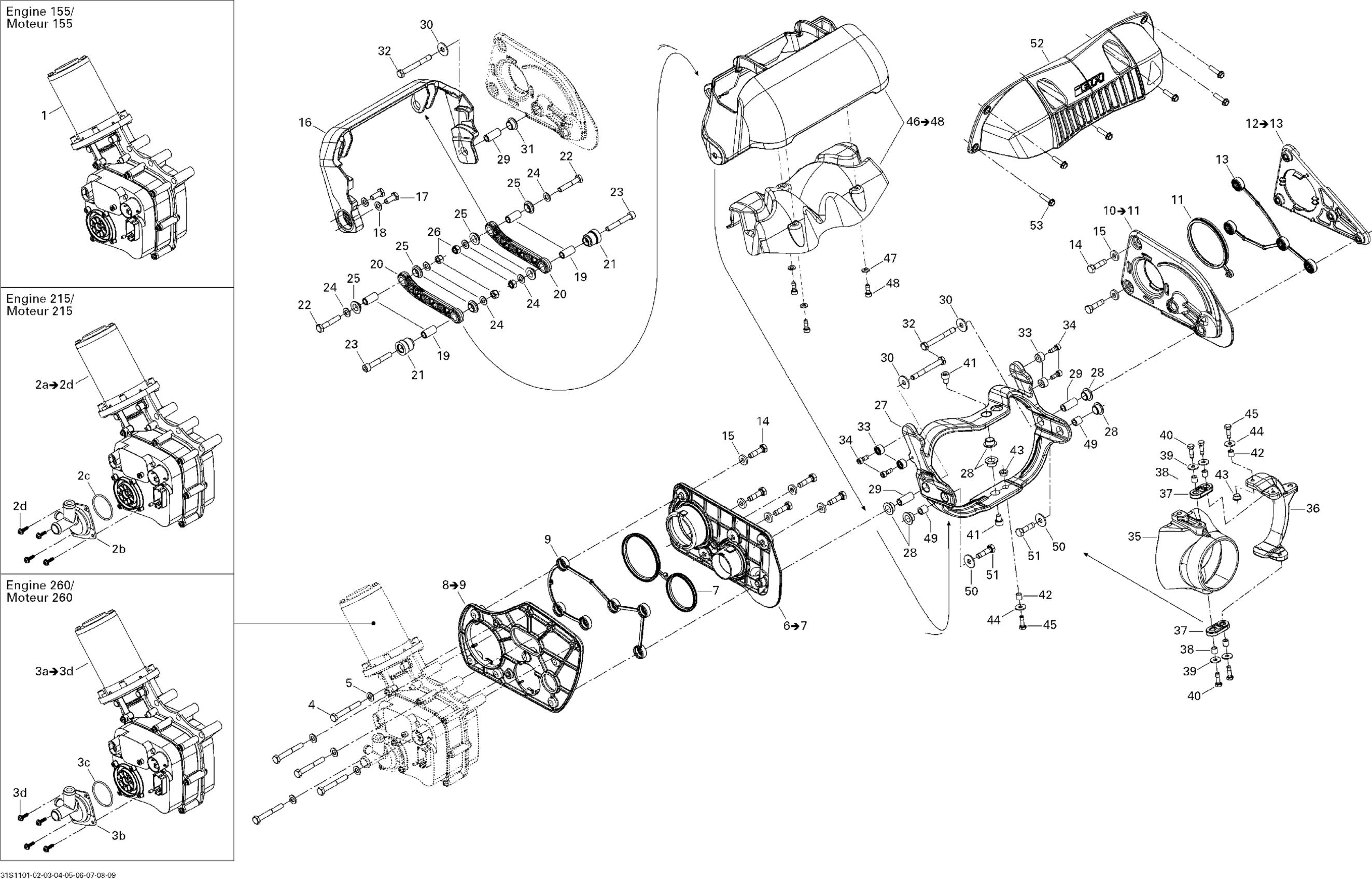

Sea-doo RXT 260 (RS), 2012 Reverse Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

2a

Not Available As Spare Parts

XXX

Unavailable

2b

Not Available As Spare Parts

XXX

Unavailable

2c

Not Available As Spare Parts

XXX

Unavailable

2d

Not Available As Spare Parts

XXX

Unavailable

3a

Actuateur Ibr *Ibr Actuator This part replaces 278002846.

278003042

$1.00

3b

COOLING COVER - Call your local BRP dealership

278002473

Unavailable

3c

O-RING - Call your local BRP dealership

278002474

Unavailable

3d

Torx Screw, Stainless

278002475

$5.93

4

Hex. Screw M8 X 60, Scotch Grip

250000187

$4.44

5

Stainless, Flat Washer 8 mm

234081600

$0.55

6

LH Support Plate Ass'y | Includes 6 to 7

268000067

$24.99

7

LH FORMED SEAL - Call your local BRP dealership

268000046

Unavailable

8

Plaque Fixation*Fixing Plate | Includes 8 to 9 This part replaces 268000069.

268000133

$42.99

9

LH FORMED SEAL - Call your local BRP dealership

268000055

Unavailable

10

RH SUPPORT PLATE ASS'Y - Call your local BRP dealership | Includes 10 to 11

268000068

Unavailable

11

RH FORMED SEAL - Call your local BRP dealership

268000047

Unavailable

12

Plaque Fixation*Fixing Plate | Includes 12 to 13 This part replaces 268000070.

268000135

$38.99

13

RH FORMED SEAL - Call your local BRP dealership

268000056

Unavailable

14

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

15

Flat Washer M8.5 x 18

293050001

$3.07

16

U Arm, Black

268000087

Unavailable

17

Hex. Screw M8 X 20, Scotch Grip

207382060

$1.99

18

Stainless, Flat Washer 8 mm

234081600

$0.55

19

SPACER - Call your local BRP dealership

268000062

Unavailable

20

Linkage Arm

268000145

$18.99

21

Bushing

268000099

$9.54

22

Hex. Screw M8 X 45

207084560

$3.38

23

Socket Head Screw M8 X 55

205085560

$4.44

24

Stainless, Flat Washer 8 mm

234081600

$0.55

25

Venturi Bushing

271000321

$8.69

26

Hex. Elastic Nut M8 Brass

232581200

$2.22

27

TRIMMING RING, BLACK - Call your local BRP dealership

268000155

Unavailable

28

Venturi Bushing

293900007

$5.45

29

Spacer

268000063

$18.49

30

Flat Washer 8 mm, Stainless

234082600

$2.43

31

Venturi Bushing

293900007

$5.45

32

Hex. Screw M8 X 70, Scotch Grip

250000506

$6.77

33

Friction Sleeve

268000045

$9.89

34

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

35

Jet Pump Nozzle

267000727

$77.99

36

Nozzle Lever, Black

268000148

$61.99

37

Direction Lever Arm

268000058

$13.99

38

Spacer

268000060

$12.99

39

Flat Washer M6, Stainless

234062600

$0.77

40

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

41

Socket Head Screw M8 X 10, Scotch Grip

211000127

$3.99

42

Spacer

268000060

$12.99

43

Bushing

268000059

$14.17

44

Flat Washer M6, Stainless

234062600

$0.77

45

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

46

Reverse Gate Ass'y

268000048

Unavailable

47

Stainless Flat Washer M6

234061600

$0.33

48

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

49

Spacer

271001039

$16.49

50

Flat Washer 8 mm, Stainless

234082600

$2.43

51

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

52

Guard

268000162

$29.99

53

Hex. Flange Screw M6.81 X 25, Plastite

243162560

$2.19
