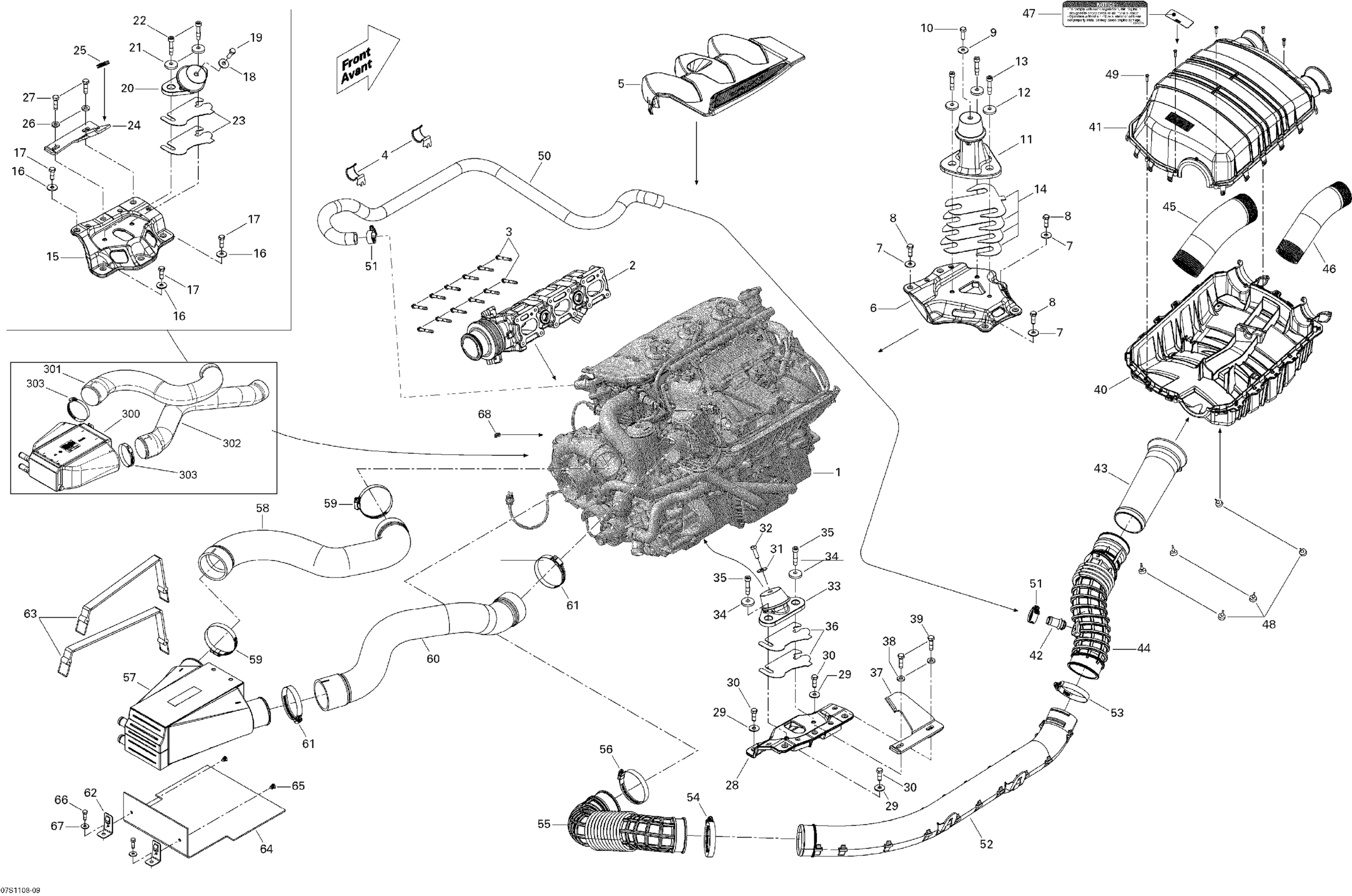

Sea-doo RXT 260 (RS), 2012 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Long Block This part replaces 420150338.

420150394

$3,999.99

1

Engine Long Block This part replaces 420150338.

420150394

$3,999.99

1

Engine Long Block This part replaces 420150338.

420150394

$3,999.99

2

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$651.92

3

Torx Flange Screw M6 X 45

420641198

$3.38

4

Retainer

275500664

$10.91

5

Engine Cover | Model RXT 260, RXT 260 RS

270000804

$64.15

6

SPACER - Call your local BRP dealership

270000767

Unavailable

7

Flat Washer 8 mm, Stainless

234082600

$1.98

8

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.25

9

Flat Washer 8 mm, Stainless

234082600

$1.98

10

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

11

Rubber Mount

270000886

$98.77

12

Cone Washer

250200018

$4.64

13

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.25

14

Shim 1.3 mm

270000770

$12.86

15

SPACER - Call your local BRP dealership

270000763

Unavailable

16

Flat Washer 8 mm, Stainless

234082600

$1.98

17

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.25

18

Flat Washer 8 mm, Stainless

234082600

$1.98

19

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

20

Engine Support Ass'y

270001081

$84.47

21

Cone Washer

250200018

$4.64

22

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.25

23

Shim 1.3 mm

270000762

$9.04

24

LH STOPPER - Call your local BRP dealership

270000796

Unavailable

25

TRIM, BLACK - Call your local BRP dealership

204610371

Unavailable

26

Flat Washer M8.5 x 18

293050001

$1.29

27

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.64

28

Spacer

270000766

$73.10

29

Flat Washer 8 mm, Stainless

234082600

$1.98

30

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.25

31

Flat Washer 8 mm, Stainless

234082600

$1.98

32

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

33

Engine Support Ass'y

270001081

$84.47

34

Cone Washer

250200018

$4.64

35

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.25

36

Shim 1.3 mm

270000762

$9.04

37

RH Stopper

270000799

Unavailable

38

Flat Washer M8.5 x 18

293050001

$1.29

39

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.64

40

SILENCER_INTAKE LWR - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000356

Unavailable

41

SILENCER_INTAKE UP - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000372

Unavailable

42

Breather Valve

273000234

$10.63

43

Intake Hose

273000359

$44.00

44

HOSE CONNECTOR - Call your local BRP dealership | Engine 1500 HO ACE, 1630 ACE HO

273000322

Unavailable

45

Air Silencer Hose

273000290

$20.12

46

AIR SILENCER TUBE - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000299

Unavailable

47

Air Silencer Notice Decal

219903177

Unavailable

48

Rubber Stopper

708000759

$3.61

49

Flange Torx Screw K40 X 16

250000287

$1.74

50

FORMED HOSE - Call your local BRP dealership

270000838

Unavailable

51

Tridon Gear Clamp

293650051

$3.61

52

HOSE INTAKE - Call your local BRP dealership | Engine 1500 HO ACE, 1630 ACE HO

273000233

Unavailable

53

Tridon Clamp

293650179

$8.81

54

Tridon Clamp

293650179

$8.81

55

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

Unavailable

56

Tridon Clamp

293650179

$8.81

57

Intercooler

276000273

Unavailable

58

Inlet Hose This part replaces 273000282.

273000404

$55.87

59

Tridon Clamp

293650179

$8.81

60

Outlet Hose This part replaces 273000300.

273000405

$73.42

61

Tridon Clamp

293650179

$8.81

62

STRAP CLIP 90 - Call your local BRP dealership

275500743

Unavailable

63

Fuel Tank Strap

293850093

$16.87

64

RUBBER PAD - Call your local BRP dealership | Engine 1503 HO 4-TEC

293830146

Unavailable

65

Black, Dart

293730016

$6.94

66

Hex. Flange Screw M6.81 x 20

243162060

$3.30

67

Flat Washer M6, Stainless

234062600

$0.64

68

Tie Wrap 142 mm

293750002

$0.88

300

Intercooler | Model GTR

276000397

$380.87

301

Formed Hose | Engine 1503 HO 4-TEC

273000361

$85.04

302

Formed Hose | Engine 1503 HO 4-TEC

273000362

$73.42

303

Tridon Gear Clamp

293650244

$7.22
