Description

Price

1

Hex. Screw M8 X 40

207184060

$2.22

2

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.02

4

Elastic Stop Nut M6, Brass

232561200

$4.23

7

Flat Washer 10 mm, Stainless

234000600

$1.46

9

Flat Washer M6, Stainless

234062600

$0.77

10

Flat Washer 8 mm, Stainless

234082600

$2.43

11

Hex. Flange Screw M6.81 x 20

243162060

$3.72

12

Strap

269501299

$19.49

15

Safety Nut (DESS Switch)

278002963

$3.28

24

Safety Lanyard, Antitheft

278002483

$58.49

33

Battery Bolt Kit

250000282

$7.29

36

Battery, 30 Amperes

278001882

$184.01

46

Battery Ground Cable

278003269

$41.49

48

Cable-Starter

278003398

$63.99

57

LH Throttle Sensor

278002284

$119.99

58

Throttle Position Sensor

278002283

$119.99

70

Central LCD Gauge

278002997

$1.00

72

Switch RH Mode/Set

278002602

$126.99

77

Electronic Suspension Module

278002491

$929.99

80

O.T.A.S Actuator

278003537

$42.99

82

O.T.A.S. Sensor Ass'y

278003009

$109.99

91

Support

278003048

$21.99

92

Battery Support

278003306

$20.99

94

Starter Relay

278003012

$42.49

98

SUPPORT - Call your local BRP dealership

278003293

Unavailable

100

SUSPENSION MODULE SUPPORT - Call your local BRP dealership | With WDL

278002403

Unavailable

135

Switch LH VTS/Sport/Eco | Package STD

278002767

$126.99

145

Steering Handle Harness | Includes 1 to 2055

278002788

$479.99

149

Main Harness (IS) | Includes 1 to 2057

278002811

$1.00

160

Grommet | Model with Suspension

293720083

$20.99

162

Tie Wrap 368 mm

293750008

$1.04

164

Tie Wrap 368 mm

293750008

$1.04

173

Tie Wrap 368 mm

293750008

$1.04

174

Tie Wrap 368 mm

293750008

$1.04

176

Tie-Rap 180 mm

414115200

$0.11

178

Tie Rap, 533 mm

293750047

$2.09

179

Tie Wrap 368 mm

293750008

$1.04

180

Tie Wrap 368 mm

293750008

$1.04

181

Tie-Rap 180 mm

414115200

$0.11

190

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

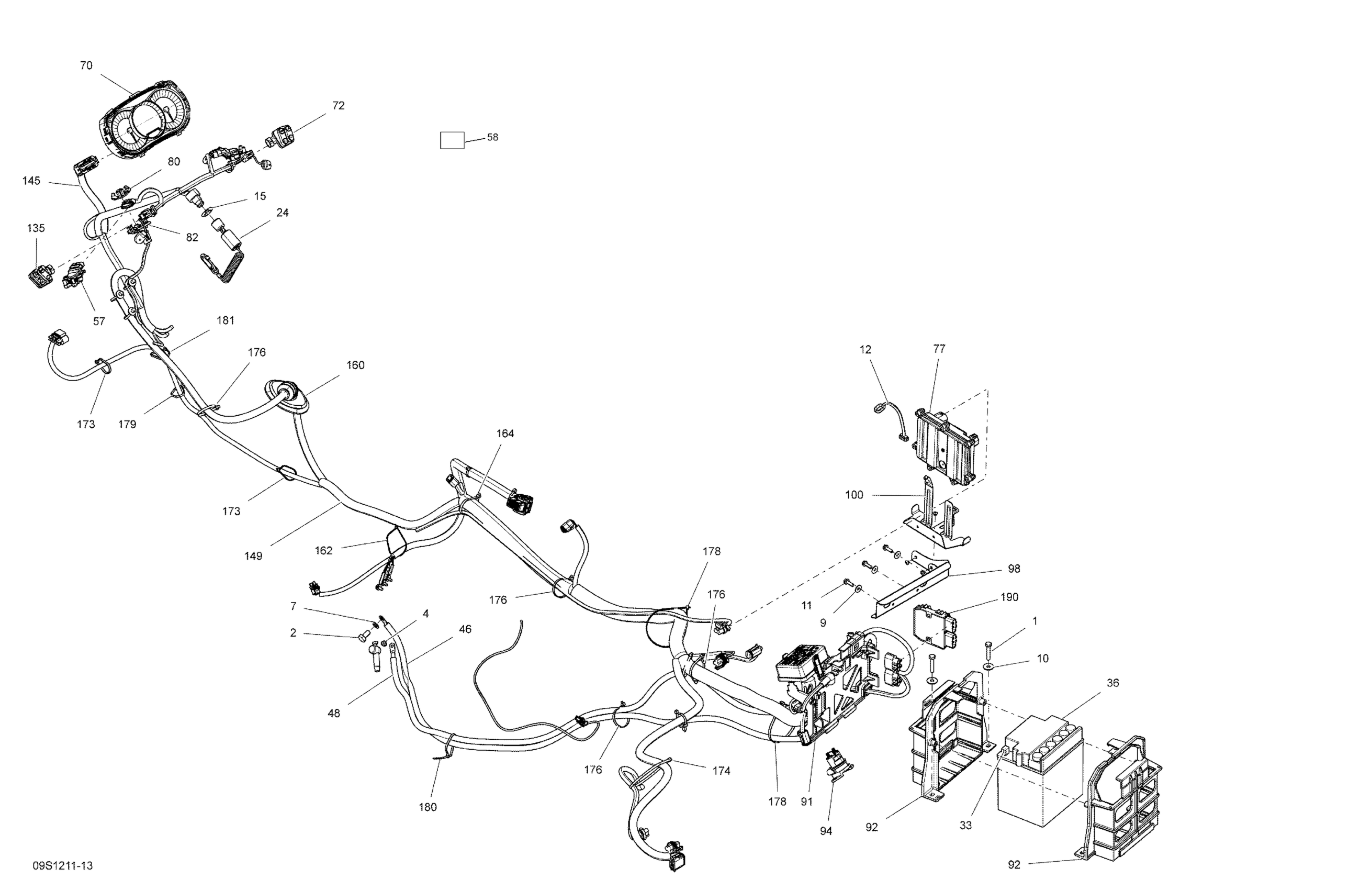

Sea-doo RXT 260 (IS), 2012 Electrical System Diagram

Hex. Screw M8 X 40

Hex. Screw M10 X 20, Scotch Grip

Elastic Stop Nut M6, Brass

Flat Washer 10 mm, Stainless

Flat Washer M6, Stainless

Flat Washer 8 mm, Stainless

Hex. Flange Screw M6.81 x 20

Strap

Safety Nut (DESS Switch)

Safety Lanyard, Antitheft

Battery Bolt Kit

Battery, 30 Amperes

Battery Ground Cable

Cable-Starter

LH Throttle Sensor

Throttle Position Sensor

Central LCD Gauge

Switch RH Mode/Set

Electronic Suspension Module

O.T.A.S Actuator

O.T.A.S. Sensor Ass'y

Support

Battery Support

Starter Relay

SUPPORT - Call your local BRP dealership

SUSPENSION MODULE SUPPORT - Call your local BRP dealership | With WDL

Switch LH VTS/Sport/Eco | Package STD

Steering Handle Harness | Includes 1 to 2055

Main Harness (IS) | Includes 1 to 2057

Grommet | Model with Suspension

Tie Wrap 368 mm

Tie Wrap 368 mm

Tie Wrap 368 mm

Tie Wrap 368 mm

Tie-Rap 180 mm

Tie Rap, 533 mm

Tie Wrap 368 mm

Tie Wrap 368 mm

Tie-Rap 180 mm

Voltage Regulator | For replacement, refer to service bulletin 2005-5
