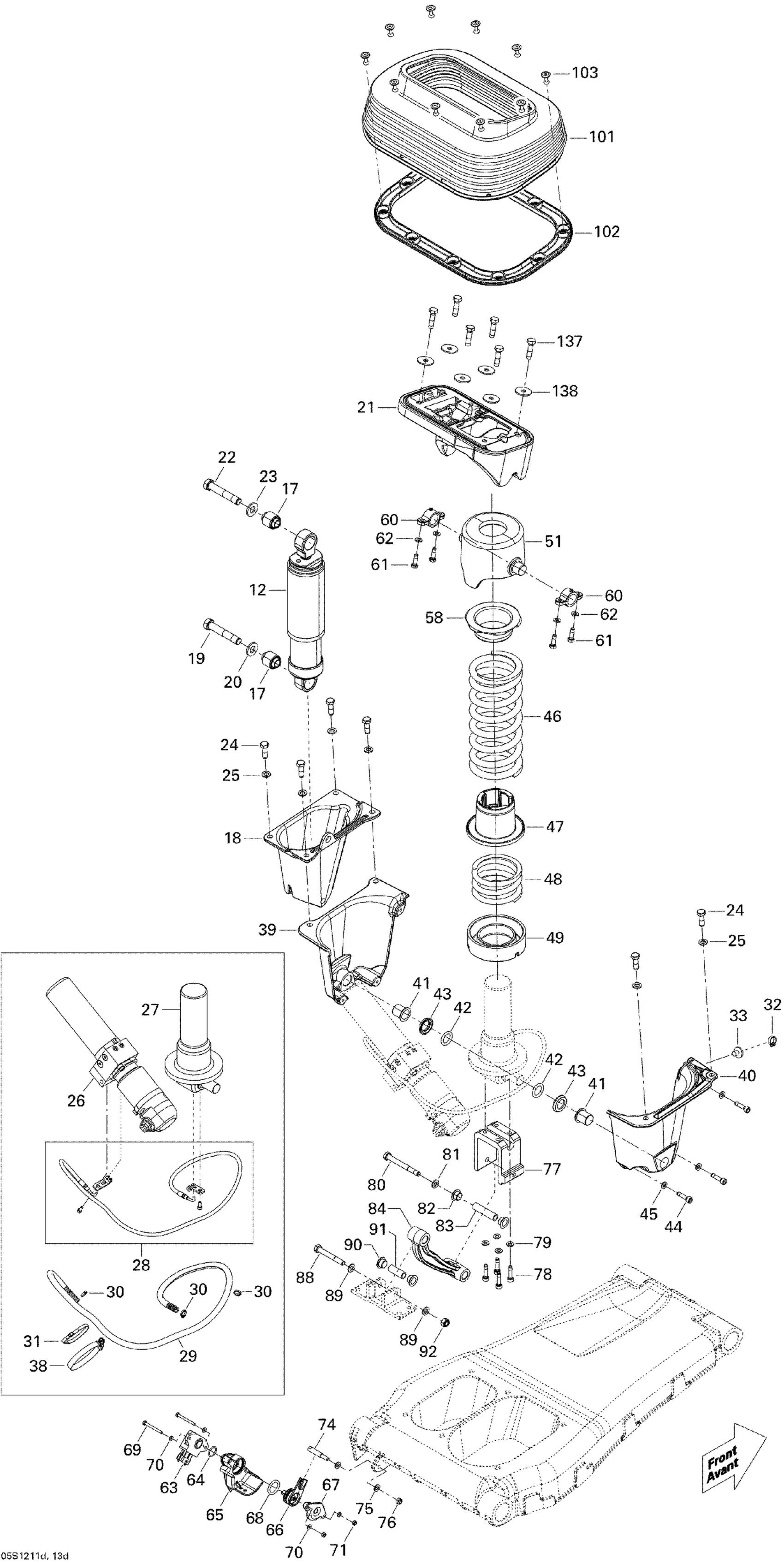

Sea-doo RXT 260 (IS), 2012 Seat Suspension 4 Diagram

#

Description
Price

12

SHOCK ABSORBER - Call your local BRP dealership | RXT IS

279000004

Unavailable

17

Bushing

279000051

$77.99

18

SHOCK LOWER HOLDER - Call your local BRP dealership

279000055

Unavailable

19

HEX. SCREW M12 X 70, SCOTCH GRIP - Call your local BRP dealership

207227060

Unavailable

20

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

21

Shock Upper Holder

279000057

$199.99

22

HEX. SCREW M12 X 70, SCOTCH GRIP - Call your local BRP dealership

207227060

Unavailable

23

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

24

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

25

Flat Washer M8, Stainless

234080600

$1.48

26

PUMP ASS'Y - Call your local BRP dealership This part replaces 279000207.

279000208

Unavailable

27

ACTUATOR - Call your local BRP dealership

279000117

Unavailable

28

CONNECTOR HOSE - Call your local BRP dealership

279000162

Unavailable

29

Tubing 6 Mm 3000Mm Long

219704425

$13.75

30

Tie Wrap 94 mm | 4X4

293750001

$1.03

31

Tie Wrap 368 mm

293750008

$1.04

32

Tie-Rap 180 mm

414115200

$0.11

33

Mount Dart

293730040

$1.04

33

Mount Dart

293730040

$1.04

38

Norma Clamp

293650079

$11.60

39

LH SPRING HOLDER - Call your local BRP dealership

279000070

Unavailable

40

RH SPRING HOLDER - Call your local BRP dealership

279000074

Unavailable

41

BUSHING - Call your local BRP dealership

279000103

Unavailable

42

O-RING - Call your local BRP dealership

279000104

Unavailable

43

BUSHING - Call your local BRP dealership

279000105

Unavailable

44

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

45

Stainless Flat Washer M6

234061600

$0.33

46

PAINTED SPRING - Call your local BRP dealership | RXT IS

279000005

Unavailable

47

SPRING SPACER - Call your local BRP dealership | RXT IS

279000118

Unavailable

48

PAINTED SPRING - Call your local BRP dealership | RXT IS

279000119

Unavailable

49

LOWER SPRING PROTECTOR - Call your local BRP dealership | RXT IS

279000133

Unavailable

51

UPPER SPRING HOLDER - Call your local BRP dealership

279000061

Unavailable

58

UPPER SPRING PROTECTOR - Call your local BRP dealership

279000134

Unavailable

60

CLAMP - Call your local BRP dealership

279000106

Unavailable

61

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

62

Flat Washer 4 mm, Stainless

234041600

$1.15

63

Position Sensor

420866120

$98.99

64

O-Ring

270000544

$4.65

65

POSITION SENSOR BRACKET - Call your local BRP dealership

279000098

Unavailable

66

SENSOR LEVER - Call your local BRP dealership

279000099

Unavailable

67

POSITION SENSOR COVER - Call your local BRP dealership

279000107

$8.29

68

O-Ring

279000108

$6.03

69

Hex. Screw M4 X 40

207144060

$4.44

70

Stainless Flat Washer M6

234061600

$0.33

71

Elastic Stop Nut M4

232541200

$2.11

74

THREADED ROD - Call your local BRP dealership

279000139

Unavailable

75

Stainless Flat Washer M6

234061600

$0.33

76

Elastic Stop Nut M6, Brass

232561200

$4.23

77

SPRING ALIGNMENT ADAPTOR - Call your local BRP dealership

279000154

Unavailable

78

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

79

Stainless Flat Washer M6

234061600

$0.33

80

HEX. SCREW M8 X 75, SCOTCH GRIP - Call your local BRP dealership

207287560

Unavailable

81

Flat Washer M8, Stainless

234080600

$1.48

82

BUSHING - Call your local BRP dealership

279000137

$8.69

83

SPACER - Call your local BRP dealership

279000138

Unavailable

84

SPRING ALIGNMENT ARM - Call your local BRP dealership

279000157

Unavailable

88

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086060

$1.90

89

Flat Washer M8, Stainless

234080600

$1.48

90

BUSHING - Call your local BRP dealership

279000137

$8.69

91

SPACER - Call your local BRP dealership

279000153

Unavailable

92

Hex. Elastic Nut M8 Brass

232581200

$2.22

101

CENTRAL BELLOWS - Call your local BRP dealership

279000008

Unavailable

102

Retaining Plate

279000010

$19.99

103

Pop Rivet 3/16"

293150123

$4.29

137

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

138

Flat Washer 8 mm, Stainless

250200175

$3.06
