Description

Price

1

Elastic Stop Nut M6, Brass

232561200

$4.23

2

Flat Washer 4 mm, Stainless

234041600

$1.15

3

Hex. Flange Screw K40 X 16

241141660

$1.48

5

Mirror Spring

269500453

$10.49

7

WHITE UPPER FRONT DEFLECTOR, STD - Call your local BRP dealership

269501981

Unavailable

10

Left Latch

269501964

$30.99

10

Right Latch

269501965

$30.99

12

HOOD ASS'Y KIT - Call your local BRP dealership | GTX S This part replaces 269501883.

295501128

Unavailable

13

White, LH Mirror Housing

269502205

$68.99

14

White, RH Mirror Housing

269502206

$68.99

15

LH Mirror Ass'y

269501918

$68.99

18

RH Mirror Ass'y

269501920

$68.99

20

Shock Absorber | Includes 150 to 150d

269501664

$134.99

21

Not Available As Spare Parts

XXX

Unavailable

24

Spacer

291001203

$13.49

25

Not Available As Spare Parts

XXX

Unavailable

29

Rubber Bumper

293830135

$15.99

30

Shock Absorber End Fitting

269501984

$11.49

31

Tie Wrap 94 mm | 4X4

293750001

$1.03

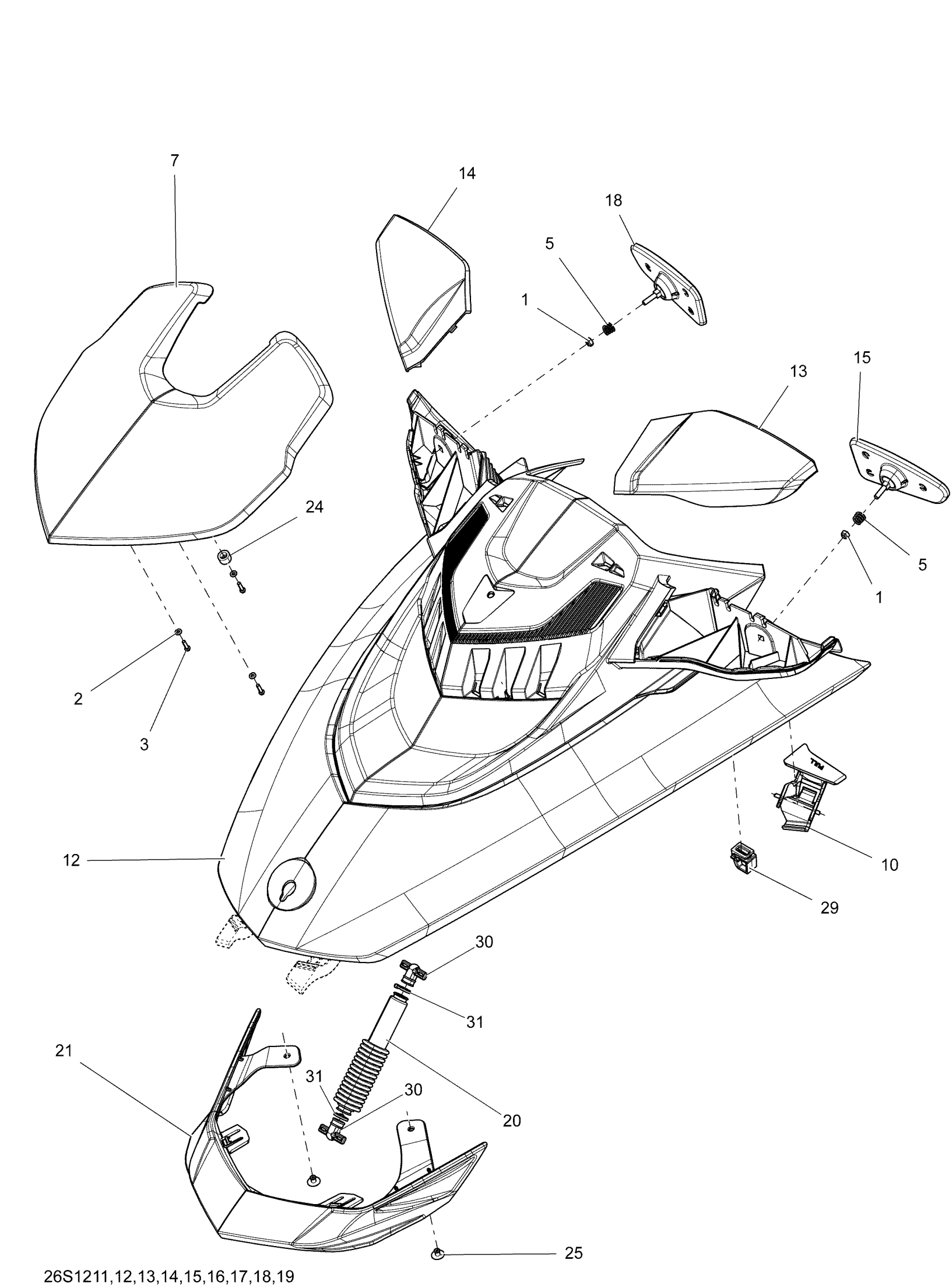

Sea-doo RXT 260 (IS), 2012 09- Front Cover Diagram

Elastic Stop Nut M6, Brass

Flat Washer 4 mm, Stainless

Hex. Flange Screw K40 X 16

Mirror Spring

WHITE UPPER FRONT DEFLECTOR, STD - Call your local BRP dealership

Left Latch

Right Latch

HOOD ASS'Y KIT - Call your local BRP dealership | GTX S This part replaces 269501883.

White, LH Mirror Housing

White, RH Mirror Housing

LH Mirror Ass'y

RH Mirror Ass'y

Shock Absorber | Includes 150 to 150d

Not Available As Spare Parts

Spacer

Not Available As Spare Parts

Rubber Bumper

Shock Absorber End Fitting

Tie Wrap 94 mm | 4X4
