Description

Price

1

Hex. Screw M6 X 30

207063060

$1.89

2

Hex. Screw M6 X 35

207163560

$1.49

3

Hex. Screw M6 X 40

207064060

$1.69

4

Hex. Screw M6 X 50

207165060

$0.92

5

Hex Screw M6 X 80

207168060

$6.77

6

Hex. Nut 1/4"-28

211100056

$0.69

7

Elastic Stop Nut M6, Brass

232561200

$4.23

8

Flat Washer 4 mm, Stainless

234042600

$1.15

9

Stainless Flat Washer M6

234061600

$0.33

10

Flat Washer M6, Stainless

234062600

$0.77

11

Hex. Flange Screw K40 X 25

241142560

$2.64

12

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

13

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

14

Black, Cap

277000203

$9.39

15

Ball Joint

277000775

$51.99

18

Half Ring

277001527

$10.37

19

End Piece

277001583

$14.49

20

Wiper Rod

277001582

$11.11

21

Ball Joint

277001180

$35.99

29

Steering Column

277001963

$381.49

30

Steering Cover | IBR

277001969

$68.99

31

Steering Cable

277001602

$285.99

32

Steering Support Pivot

277001605

$20.99

33

Handle Ass'y | Includes 780 to 780c

277001658

$132.49

35

Gauge Support

277001953

$61.99

36

Gauge Support Cover

277001613

$28.99

37

LOCK - Call your local BRP dealership

277001616

$18.99

38

Throttle Handle

277001944

$38.99

39

TOP FOAM - Call your local BRP dealership

277001621

Unavailable

40

Handlebar Grip

277002286

$19.99

42

Housing Cover RH

277001625

$19.99

43

Housing Cover LH

277001626

$19.99

44

Thrust Support Ass'y

277001655

$28.99

45

Reverse Handle

277001945

$43.99

46

Gauge Trim, Black

277001630

$55.99

47

White Steering Pad | Package STD

277001769

$52.99

48

Pivot

277001652

$15.99

49

Wear Ring

277001653

$12.17

50

Spacer

277001654

$15.99

52

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

53

Steering Support | Includes 710 to 710b

277001942

$114.99

54

Wear Ring

277002318

$15.99

55

Support Ass'y | Includes 460 to 460b

277002179

$22.49

56

Switch Knob, Red

277001802

$10.59

56

Knob Switch, Grey

277001803

$6.98

57

Housing Cover LH

277001626

$19.99

58

Insert Grip Handle

277001863

$8.83

59

Grommet | Model with Suspension

293720083

$20.99

60

Rubber Bumper

293830005

$8.09

61

Rubber Washer

293830063

$1.90

62

Bushing

293900091

$4.52

2a

Hex. Screw M6 X 35

207063560

$2.22

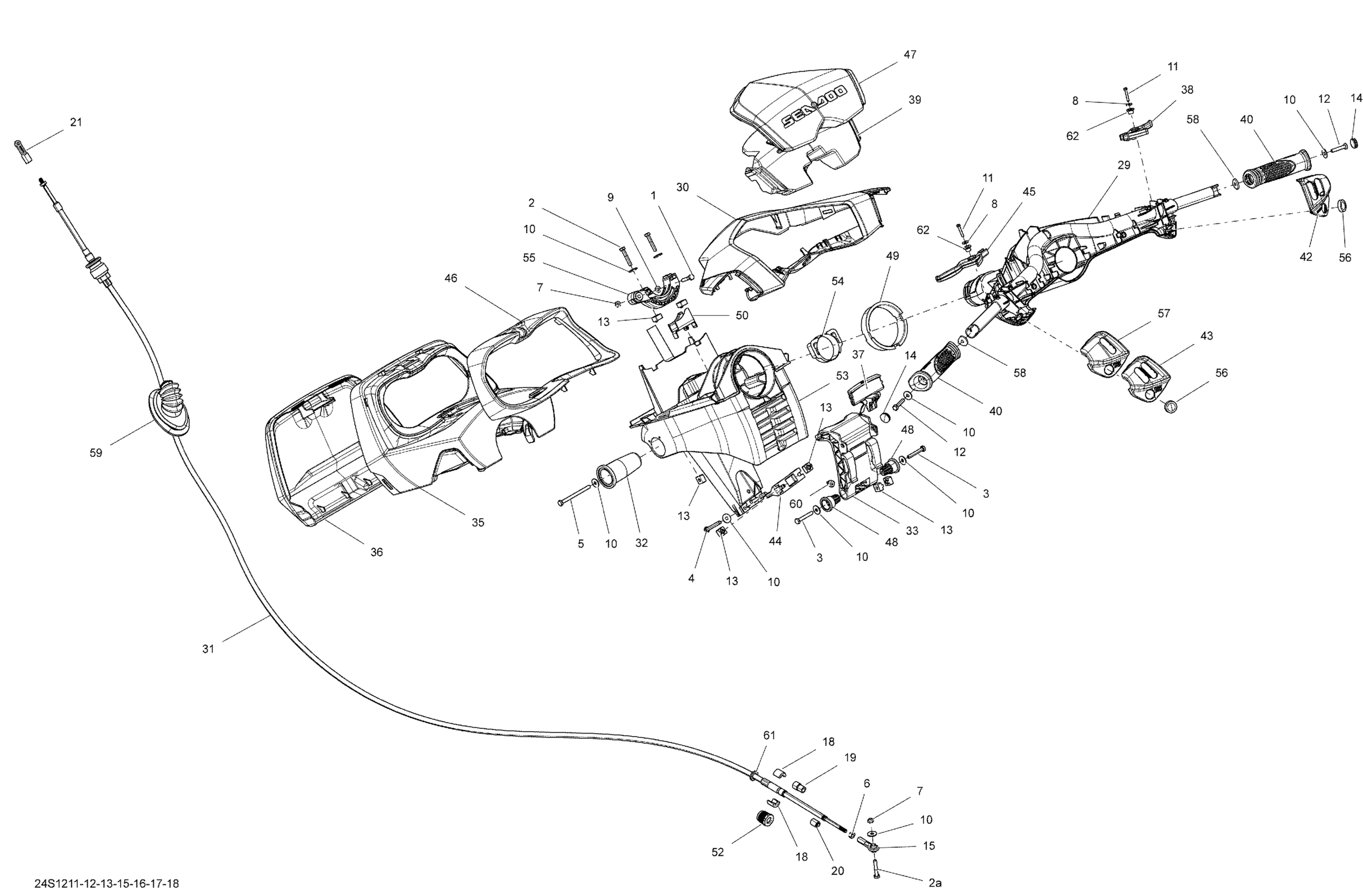

Sea-doo RXT 260 (IS), 2012 Steering Diagram

Hex. Screw M6 X 30

Hex. Screw M6 X 35

Hex. Screw M6 X 40

Hex. Screw M6 X 50

Hex Screw M6 X 80

Hex. Nut 1/4"-28

Elastic Stop Nut M6, Brass

Flat Washer 4 mm, Stainless

Stainless Flat Washer M6

Flat Washer M6, Stainless

Hex. Flange Screw K40 X 25

Hex. Screw M6 X 30, Scotch Grip

Housing Nut M6 | Included 550f to 550f2

Black, Cap

Ball Joint

Half Ring

End Piece

Wiper Rod

Ball Joint

Steering Column

Steering Cover | IBR

Steering Cable

Steering Support Pivot

Handle Ass'y | Includes 780 to 780c

Gauge Support

Gauge Support Cover

LOCK - Call your local BRP dealership

Throttle Handle

TOP FOAM - Call your local BRP dealership

Handlebar Grip

Housing Cover RH

Housing Cover LH

Thrust Support Ass'y

Reverse Handle

Gauge Trim, Black

White Steering Pad | Package STD

Pivot

Wear Ring

Spacer

Steering Cable Lock This part replaces 277000784.

Steering Support | Includes 710 to 710b

Wear Ring

Support Ass'y | Includes 460 to 460b

Switch Knob, Red

Knob Switch, Grey

Housing Cover LH

Insert Grip Handle

Grommet | Model with Suspension

Rubber Bumper

Rubber Washer

Bushing

Hex. Screw M6 X 35
