02- Fuel System

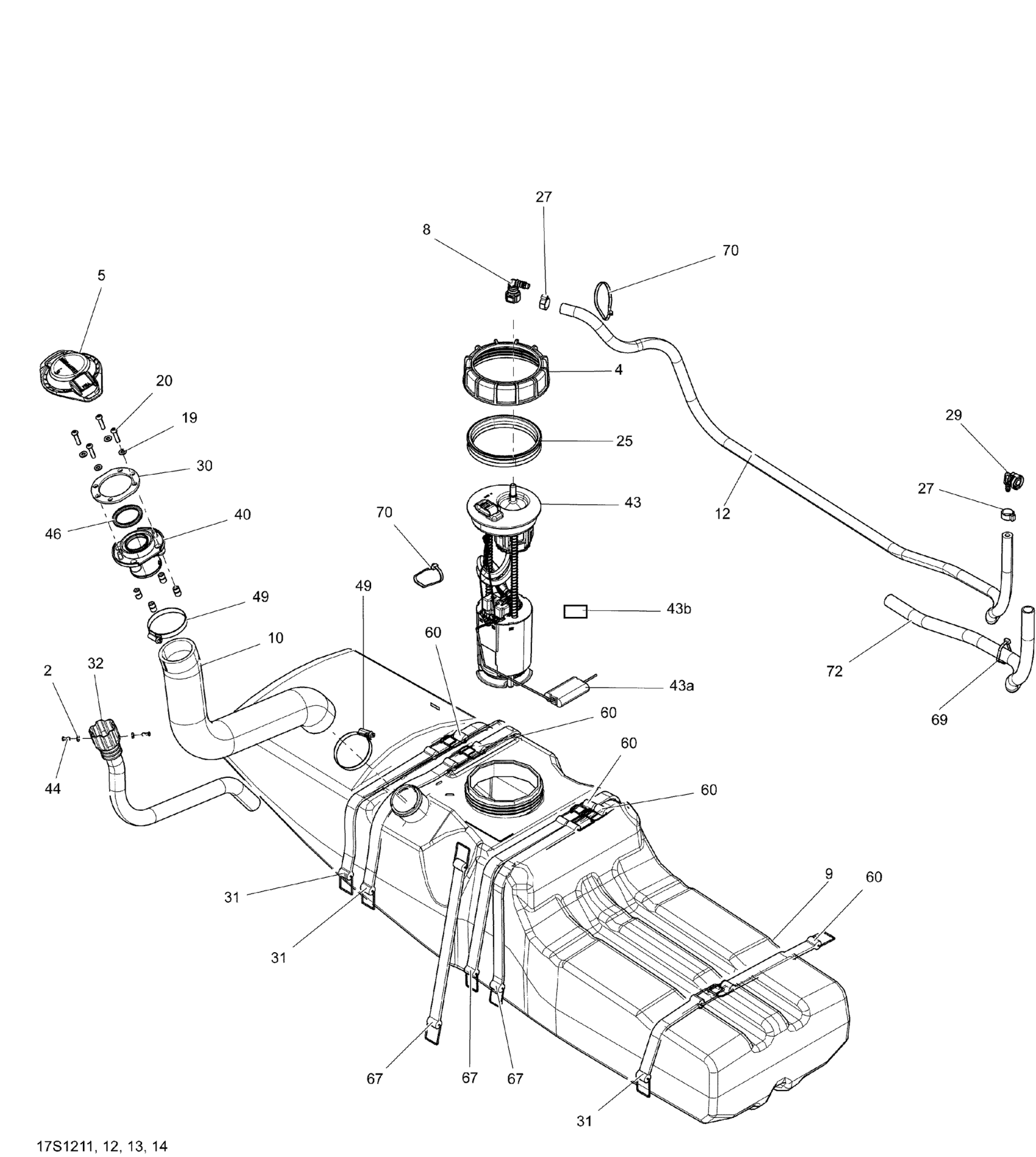

Sea-doo RXT 260 (IS), 2012 02- Fuel System Diagram
#
Description
Price
2
Flat Washer M3, Stainless
234032600
$0.55
4
Special Nut M130
250100062
$21.99
5
Fuel Cap Ass'y
275500832
$69.99
8
Quick Attach 90°
275500700
$16.49
9
FUEL TANK ASS'Y - Call your local BRP dealership | Includes 10 to 10a
275500783
Unavailable
10
Hose
275500919
$90.99
12
HOSE I.D. 7.9MM 3000MM LONG - Call your local BRP dealership
219704395
Unavailable
19
Stainless Flat Washer M6
234061600
$0.33
20
Torx Screw M6 X 25, Scotch Grip
250000328
$2.19
25
Gasket
293250173
$18.49
27
Crimp Clamp
293650053
$3.09
29
Elbow Fitting 90°
293710105
$14.22
30
Not Available As Spare Part - Friction Washer
Unavailable
31
Fuel Tank Strap
293850087
$19.99
32
FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.
275500757
Unavailable
40
Fuel Filler Neck
275500848
$39.49
43
Pump Fuel Ass'y | Includes 300 to 300b
275500996
$425.99
43a
Sensor Lever
275500780
$224.99
43b
Fuel Filter
270600113
$33.99
44
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
46
X-Ring
293300139
$23.99
49
Norma Clamp
293650081
$12.18
60
Fuel Tank Strap
293850094
$22.49
67
Fuel Tank Strap
293850095
$19.99
69
Tie Wrap 368 mm
293750008
$1.04
70
Tie-Rap 180 mm
414115200
$0.11
72
Tubing 16 Mm 1000Mm Long
219704408
$7.49
