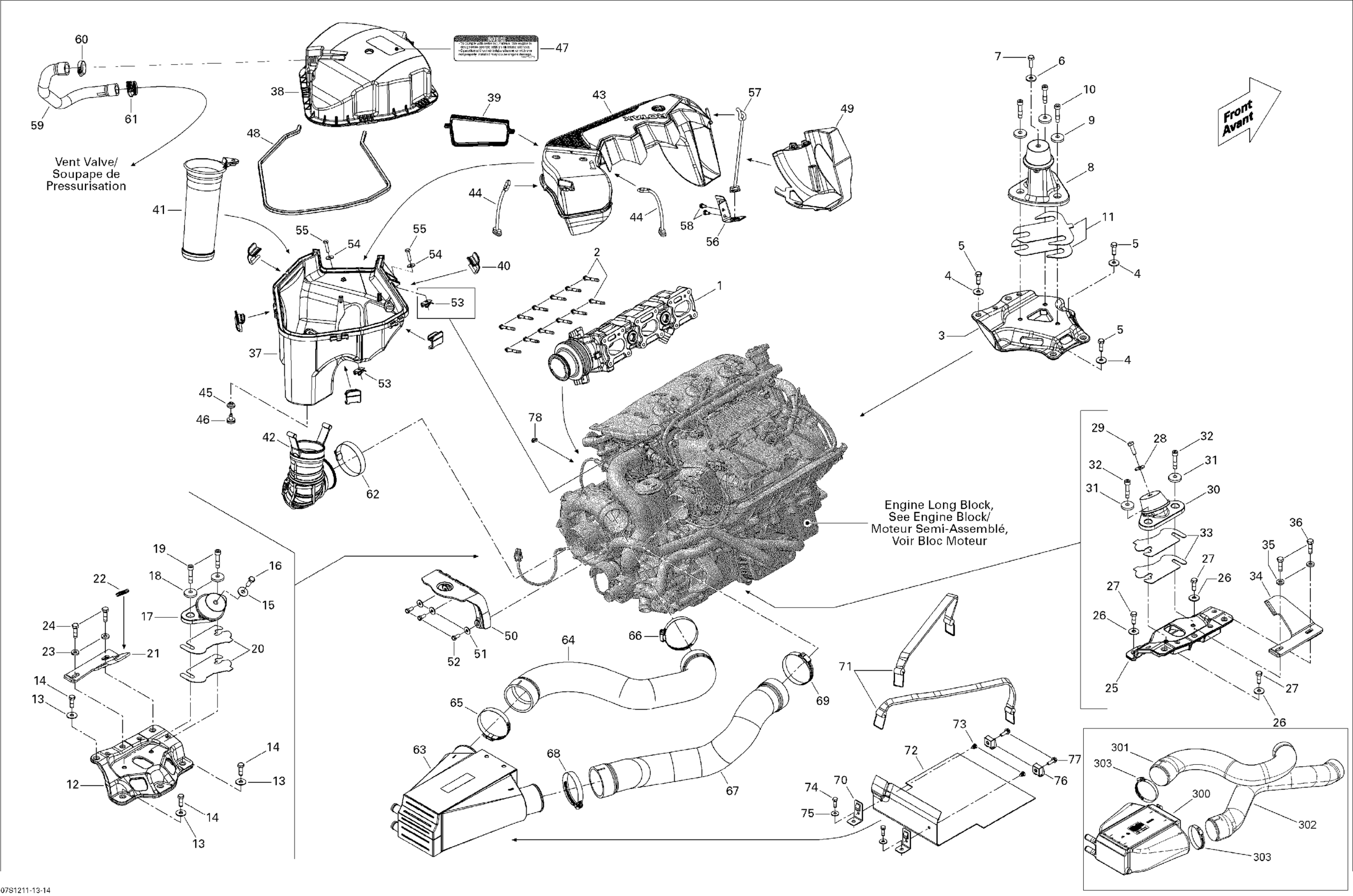

Sea-doo RXT 260 (IS), 2012 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$839.99

2

Torx Flange Screw M6 X 45

420641198

$4.12

3

SPACER - Call your local BRP dealership

270000767

Unavailable

4

Flat Washer 8 mm, Stainless

234082600

$2.43

5

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.91

6

Flat Washer 8 mm, Stainless

234082600

$2.43

7

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

8

Rubber Mount

270000886

$129.99

9

Cone Washer

250200018

$5.61

10

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.91

11

Shim 1.3 mm

270000770

$16.49

12

SPACER - Call your local BRP dealership

270000763

Unavailable

13

Flat Washer 8 mm, Stainless

234082600

$2.43

14

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.91

15

Flat Washer 8 mm, Stainless

234082600

$2.43

16

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

17

Engine Support Ass'y

270001081

$109.99

18

Cone Washer

250200018

$5.61

19

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.91

20

Shim 1.3 mm

270000762

$12.99

21

LH STOPPER - Call your local BRP dealership

270000796

Unavailable

22

TRIM, BLACK - Call your local BRP dealership

204610371

Unavailable

23

Flat Washer M8.5 x 18

293050001

$3.07

24

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.77

25

Spacer

270000766

$78.49

26

Flat Washer 8 mm, Stainless

234082600

$2.43

27

Hex. Screw M8 X 25, Scotch Grip | Hull LFI

250000525

$3.91

28

Flat Washer 8 mm, Stainless

234082600

$2.43

29

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

30

Engine Support Ass'y

270001081

$109.99

31

Cone Washer

250200018

$5.61

32

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.91

33

Shim 1.3 mm

270000762

$12.99

34

RH Stopper

270000799

Unavailable

35

Flat Washer M8.5 x 18

293050001

$3.07

36

Hex. Screw M8 X 30, Scotch Grip

250000526

$0.77

37

AIR SILENCER LOW - Call your local BRP dealership

273000250

Unavailable

38

Air Silencer Upper

273000249

$61.99

39

SEAL - Call your local BRP dealership

293250190

$15.49

40

Clip

269501718

$15.89

41

Intake Hose

273000359

$48.99

42

CONNECTOR HOSE - Call your local BRP dealership

273000251

Unavailable

43

INTAKE TUBE - Call your local BRP dealership

273000253

Unavailable

44

Strap

269501299

$19.49

45

GROMMET - Call your local BRP dealership

293720064

Unavailable

46

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

47

Air Silencer Notice Decal

219903177

Unavailable

48

NEOPRENE SEAL - Call your local BRP dealership

293200123

Unavailable

49

DEFLECTOR - Call your local BRP dealership

273000271

Unavailable

50

AIR BOX SUPPORT - Call your local BRP dealership

270000735

Unavailable

51

Flat Washer M6, Stainless

234062600

$0.77

52

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

53

Panel Nut M6 X 1

420942108

$14.28

54

Flat Washer M6, Stainless

234062600

$0.77

55

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.47

56

AIR BOX BRACKET - Call your local BRP dealership

273000260

Unavailable

57

Strap

273000261

$16.49

58

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

59

Formed Hose

270000807

$65.49

60

Tridon Gear Clamp

293650051

$4.19

61

Tridon Gear Clamp

293650051

$4.19

62

Tridon Clamp

293650179

$11.49

63

Intercooler

276000273

Unavailable

64

Inlet Hose This part replaces 273000282.

273000404

$68.99

65

Tridon Clamp

293650179

$11.49

66

Tridon Clamp

293650179

$11.49

67

Outlet Hose This part replaces 273000300.

273000405

$90.99

68

Tridon Clamp

293650179

$11.49

69

Tridon Clamp

293650179

$11.49

70

STRAP CLIP 90 - Call your local BRP dealership

275500743

Unavailable

71

Fuel Tank Strap

293850093

$21.99

72

RUBBER PAD - Call your local BRP dealership | Engine 1503 HO 4-TEC

293830146

Unavailable

73

Black, Dart

293730016

$9.97

74

Hex. Flange Screw M6.81 x 20

243162060

$3.72

75

Flat Washer M6, Stainless

234062600

$0.77

76

Not Available As Spare Parts

XXX

Unavailable

77

Not Available As Spare Parts

XXX

Unavailable

78

Tie Wrap 142 mm

293750002

$1.25

300

Intercooler | Model GTR

276000397

$476.49

301

Formed Hose | Engine 1503 HO 4-TEC

273000361

$93.99

302

Formed Hose | Engine 1503 HO 4-TEC

273000362

$93.99

303

Tridon Gear Clamp

293650244

$9.29
