01- Cooling System

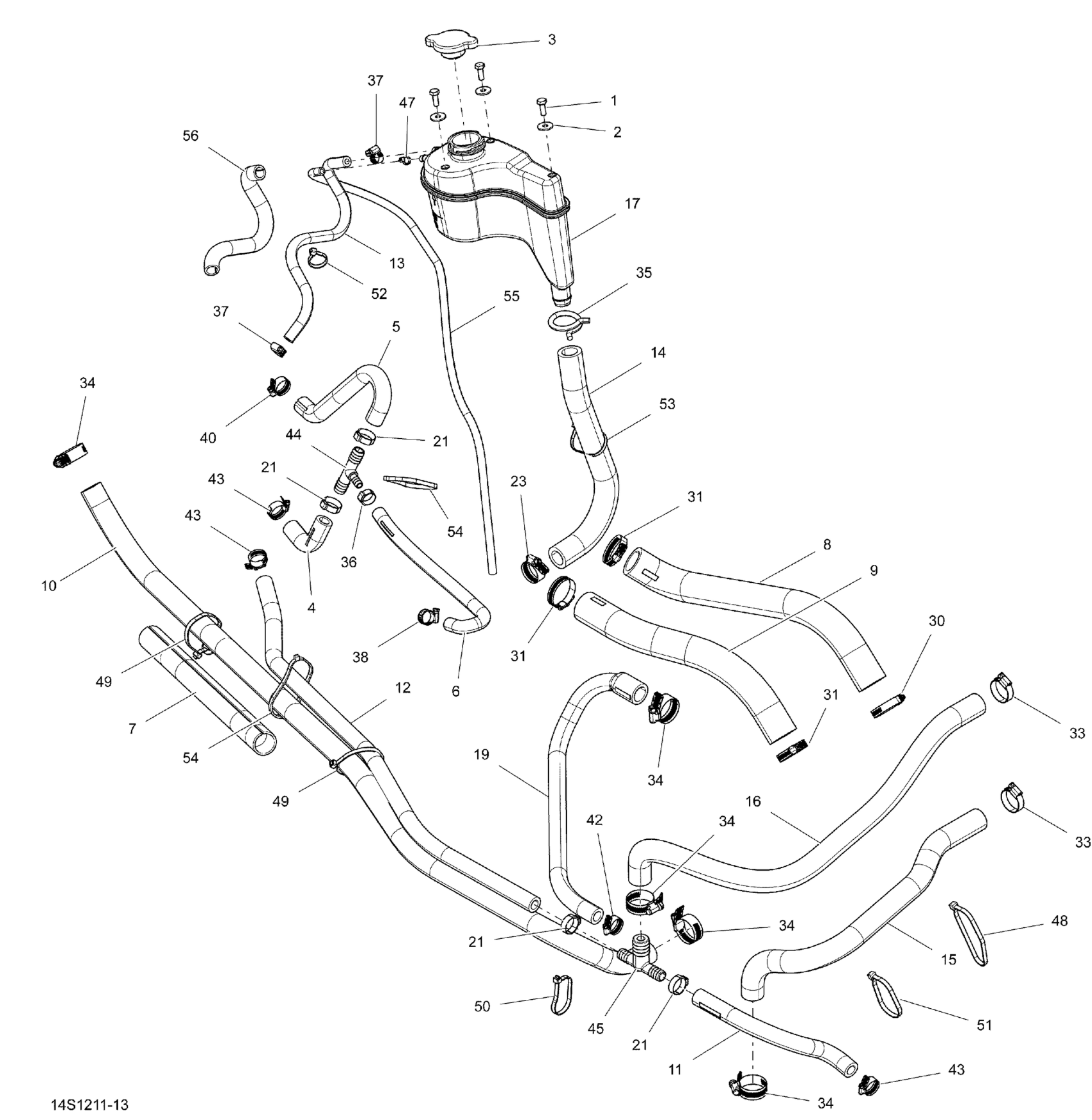

Sea-doo RXT 260 (IS), 2012 01- Cooling System Diagram
#
Description
Price
1
Hex. Screw M6 X 16, Scotch Grip
207361660
$1.15
2
Flat Washer M6, Stainless
234062600
$0.77
3
Pressure Cap | Includes 720 to 720a
276000100
$25.99
4
Hose, Bypass Lower | With Catalyst This part replaces 276000137.
276000455
$19.49
5
Hose, Bypass Upper | Without Catalyst This part replaces 276000244.
276000484
$19.49
6
Formed Hose | Without Catalyst
276000246
$19.49
7
Tubing 25 MM 1000MM Long
219704402
$15.99
8
Radiator Hose This part replaces 276000240.
276000491
$49.99
9
Radiator Hose
276000241
$32.99
10
FORMED HOSE - Call your local BRP dealership
276000238
Unavailable
11
FORMED HOSE - Call your local BRP dealership
276000239
Unavailable
12
Was 276000001 Hose 12.5 mm
219704394
$51.99
13
Was 275500549 Hose 1/4"
219704357
$194.99
14
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
15
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
16
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
17
Coolant Tank
276000265
$134.99
19
FORMED HOSE - Call your local BRP dealership
276000305
Unavailable
21
Oetiker Clamp
293650012
$7.49
23
Tridon Gear Clamp
293650019
$5.82
30
Tridon Gear Clamp
293650185
$13.99
31
Tridon Gear Clamp
293650185
$13.99
33
Tridon Gear Clamp
293650051
$4.19
34
Tridon Gear Clamp
293650172
$3.09
35
Spring Clamp
293650115
$3.09
36
Oetiker Clamp | Europe
293650030
$5.19
37
Tridon Gear Clamp
293650170
$1.99
38
Tridon Gear Clamp
293650171
$3.09
40
Tridon Gear Clamp
293650172
$3.09
42
Tridon Gear Clamp
293650172
$3.09
43
Tridon Gear Clamp
293650172
$3.09
44
T-Fitting
293710116
$17.62
45
T-Fitting
293710132
$12.65
47
Tie Wrap 94 mm | 4X4
293750001
$1.03
48
Tie Wrap 368 mm
293750008
$1.04
49
Tie Wrap 368 mm
293750008
$1.04
50
Tie Wrap 368 mm
293750008
$1.04
51
Tie Wrap 368 mm
293750008
$1.04
52
Tie Wrap 94 mm | 4X4
293750001
$1.03
53
Tie-Rap 180 mm
414115200
$0.11
54
Tie Wrap 368 mm
293750008
$1.04
55
Polyurethane Hose 10000Mm Long
219704410
$56.99
56
Was 409901800 Tubing (13 mm)
219704400
$14.49
