- Partiron
- OEM Parts
- Sea-doo
- Watercraft
- 2010
- RXT
- RXT 215, 2010
01- Engine And Air Intake Silencer

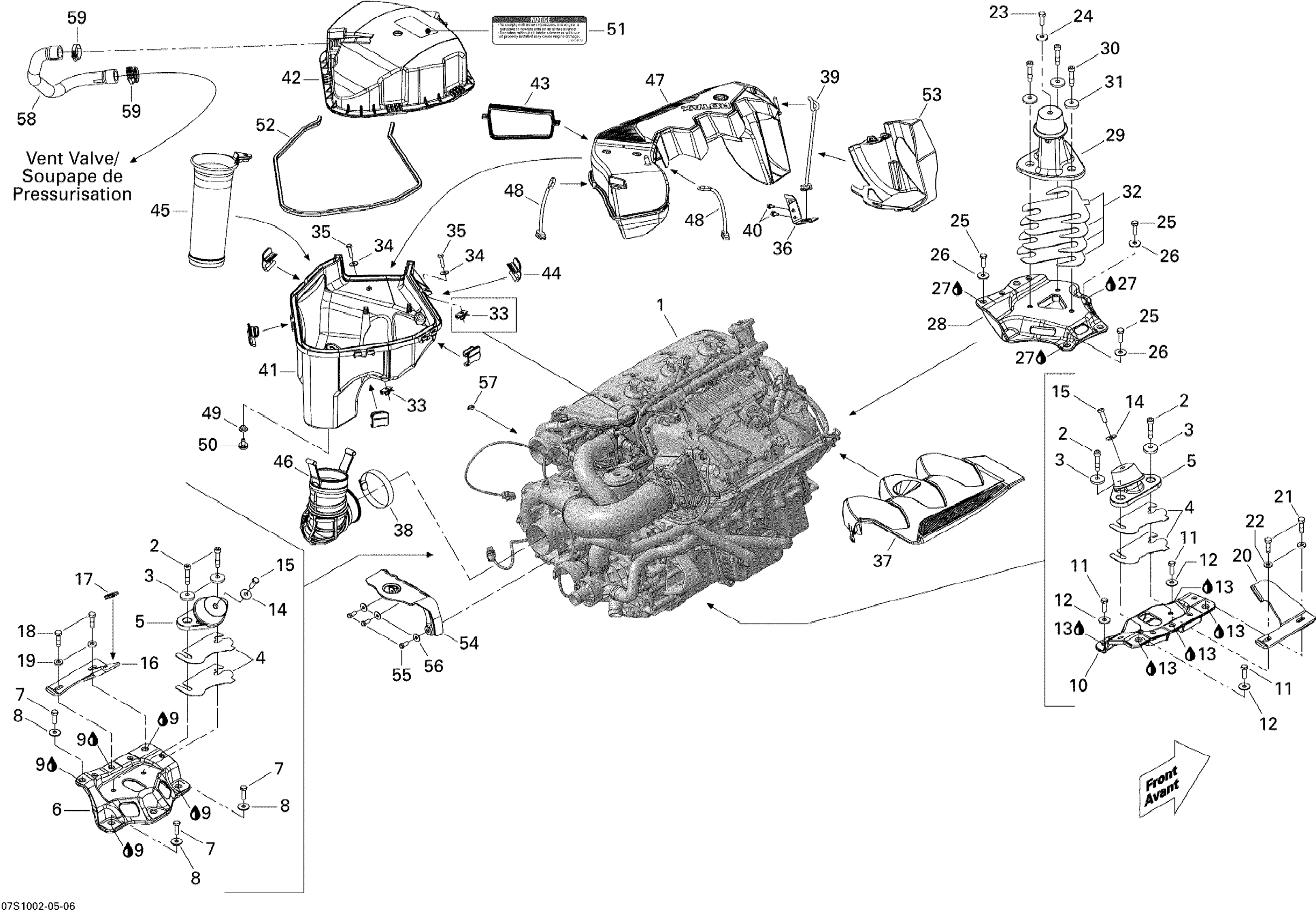

Sea-doo RXT 215, 2010 01- Engine And Air Intake Silencer Diagram
#
1
Engine Long Block This part replaces 420150338.
420150394
$4.00
1
Engine Long Block This part replaces 420150338.
420150394
$4.00
2
Torx-Button M/S M8 X 40 Stlss S.Gri
250000845
$3.91
3
Cone Washer
250200018
$5.61
4
Shim 1.3 mm
270000762
$12.99
5
Engine Support Ass'y
270001081
$109.99
6
SPACER - Call your local BRP dealership
270000763
Unavailable
7
Hex. Screw M8 X 25, Scotch Grip
207382560
$2.43
8
Flat Washer 8 mm, Stainless
234082600
$2.43
9
Loctite 271, 10 ml
293800005
$26.99
10
Spacer
270000766
$78.49
11
Hex. Screw M8 X 25, Scotch Grip
207382560
$2.43
12
Flat Washer 8 mm, Stainless
234082600
$2.43
13
Loctite 271, 10 ml
293800005
$26.99
14
Flat Washer 8 mm, Stainless
234082600
$2.43
15
Hex. Screw M8 X 25, Scotch Grip
207382560
$2.43
16
LH STOPPER - Call your local BRP dealership
270000796
Unavailable
17
TRIM, BLACK - Call your local BRP dealership
204610371
Unavailable
18
Hex. Screw M8 X 30, Scotch Grip
207383060
$1.90
19
Flat Washer M8.5 x 18
293050001
$3.07
20
RH Stopper
270000799
Unavailable
21
Hex. Screw M8 X 30, Scotch Grip
207383060
$1.90
22
Flat Washer M8.5 x 18
293050001
$3.07
23
Hex. Screw M8 X 25, Scotch Grip
207382560
$2.43
24
Flat Washer 8 mm, Stainless
234082600
$2.43
25
Hex. Screw M8 X 25, Scotch Grip
207382560
$2.43
26
Flat Washer 8 mm, Stainless
234082600
$2.43
27
Loctite 271, 10 ml
293800005
$26.99
28
SPACER - Call your local BRP dealership
270000767
Unavailable
29
Rubber Mount
270000886
$129.99
30
Torx-Button M/S M8 X 40 Stlss S.Gri
250000845
$3.91
31
Cone Washer
250200018
$5.61
32
Shim 1.3 mm
270000770
$16.49
33
Panel Nut M6 X 1
420942108
$14.28
34
Flat Washer M6, Stainless
234062600
$0.77
35
Hex. Screw M6 X 25, Scotch Grip | With Catalyst
207362560
$1.47
36
AIR BOX BRACKET - Call your local BRP dealership
273000260
Unavailable
37
Engine Cover | Model RXT 260, RXT 260 RS
270000804
$71.99
38
Tridon Clamp
293650179
$11.49
39
Strap
273000261
$16.49
40
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
41
AIR SILENCER LOW - Call your local BRP dealership
273000250
Unavailable
42
Air Silencer Upper
273000249
$61.99
43
SEAL - Call your local BRP dealership
293250190
$15.49
44
Clip
269501718
$15.89
45
Intake Hose
273000359
$48.99
46
CONNECTOR HOSE - Call your local BRP dealership
273000251
Unavailable
47
INTAKE TUBE - Call your local BRP dealership
273000253
Unavailable
48
Strap
269501299
$19.49
49
GROMMET - Call your local BRP dealership
293720064
Unavailable
50
CHECK VALVE - Call your local BRP dealership
275500454
Unavailable
51
Air Silencer Notice Decal
219903177
Unavailable
52
NEOPRENE SEAL - Call your local BRP dealership
293200123
Unavailable
53
DEFLECTOR - Call your local BRP dealership
273000271
Unavailable
54
AIR BOX SUPPORT - Call your local BRP dealership
270000735
Unavailable
55
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
56
Flat Washer M6, Stainless
234062600
$0.77
57
Tie Wrap 142 mm
293750002
$1.25
58
Formed Hose
270000807
$65.49
59
Tridon Gear Clamp
293650051
$4.19
