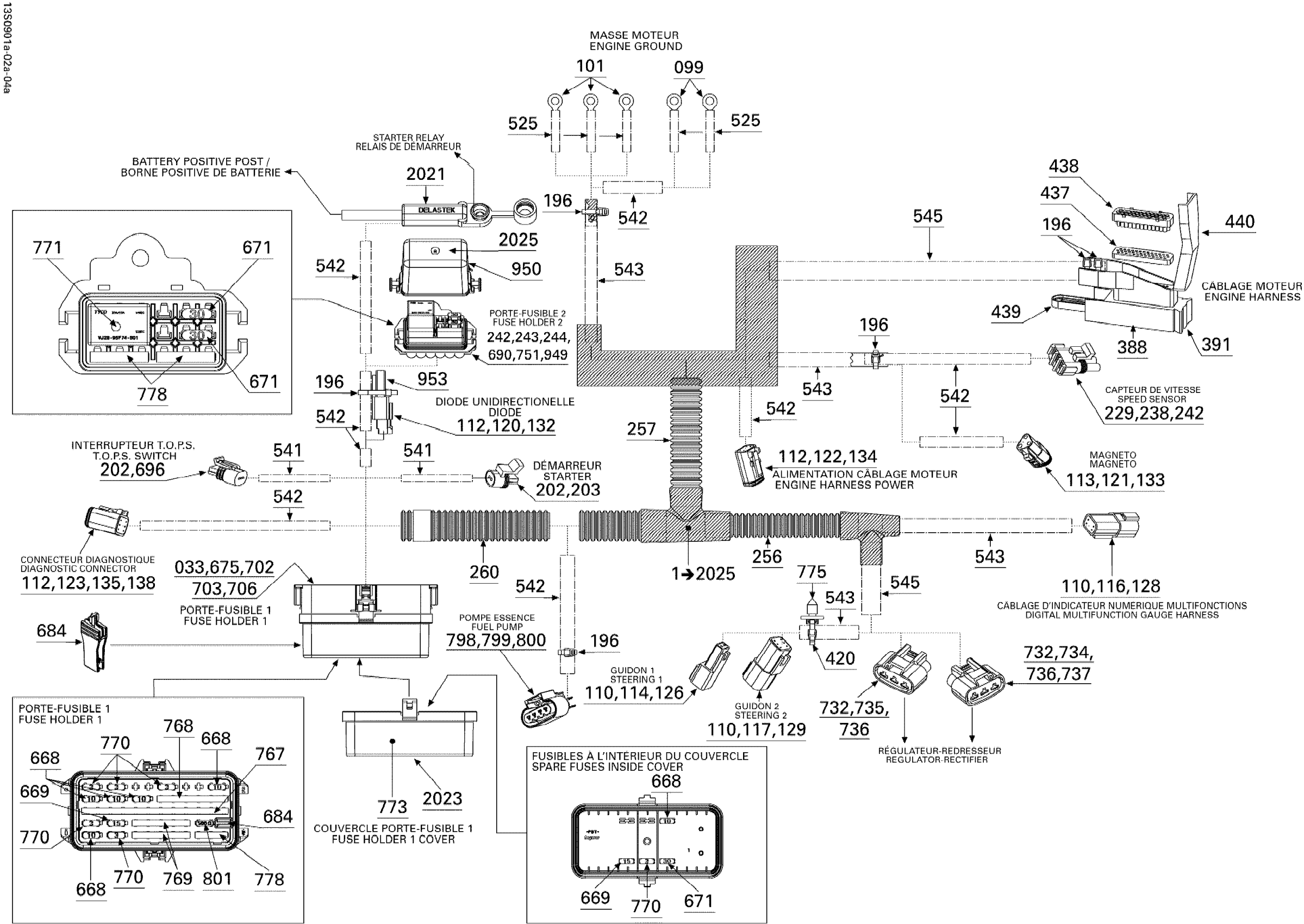

Sea-doo RXT 215, 2009 Electrical Harness 1 Diagram

#

Description
Price

1

MAIN WIRING HARNESS - Call your local BRP dealership | Includes 1 to 2025

278002276

Unavailable

33

Wire Seal

278000999

$3.19

99

Open Barrel

278000992

$2.21

101

Open Barrel Terminal

278001392

$4.79

110

Male Terminal

278000631

$4.39

112

Female Terminal

278000632

$2.09

113

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

114

Male Housing, 2 Circuits

409206900

$9.59

116

Female Housing, 4 Circuits

278000635

$16.49

117

Male Terminal Housing, 6 Circuits

710001539

$19.99

120

Female Connector, 2 Circuits

409207300

$9.85

121

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

122

Male Connector, 4 Circuits | CE

278000739

$19.49

123

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

126

Male Lock, 2 Circuits

409207500

$3.19

128

Female Wedge, 4 Circuits

278000636

$4.39

129

Female Lock, 6 Circuits

278000735

$3.19

132

Male Lock, 2 Circuits

409207500

$3.19

133

Female Lock

409207200

$4.39

134

Male Lock, 4 Circuits | CE

278000738

$3.09

135

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

138

Sealing Cap

293000052

$3.19

196

Tie Wrap 142 mm

293750002

$1.25

202

Female Terminal

278001114

$3.19

203

Male Connector, 2 Circuits

278001113

$16.86

229

Female Terminal

278000223

$3.19

238

Male Housing, 3 Circuits

278000273

$9.59

242

Wire Seal

278000218

$4.39

243

Wire Seal

710000048

$7.69

244

Wire Seal

278000216

$3.19

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

257

Was 409901600 Tubing 19mm

219704398

$95.99

260

Was 515175319 Tubing 22 mm

219704423

$14.99

388

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

391

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

420

Tie-Rap 180 mm

414115200

$0.11

437

SEAL - Call your local BRP dealership

515175886

Unavailable

438

Latch

515175883

$9.12

439

LOCK - Call your local BRP dealership

515175884

Unavailable

440

COVER - Call your local BRP dealership

515175885

Unavailable

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

541

Tubing 6 Mm 3000Mm Long

219704425

$13.75

542

Was 409901700 Tubing (9 mm)

219704399

$84.99

543

Tubing 12 mm

409902000

Unavailable

545

Tubing 16 Mm 1000Mm Long

219704408

$7.49

668

Little Fuse, 10 Amperes

710000744

$8.79

669

Little Fuse, 15 Ampere

710000745

$8.49

671

Little Fuse, 30 Amperes

710000747

$8.49

675

Fuse Box Base Ass´y

415129856

$50.99

684

Fuse Puller

710000781

$8.09

690

Female Terminal

710000890

$4.55

696

Connector, 3 Circuits

278002064

$25.99

702

Female Terminal

710000836

$5.61

703

Female Terminal

710000837

$5.39

706

Cap

710000840

$5.89

732

Female Terminal

710000877

$9.12

734

Female Housing, 3 Circuits

710000879

$25.99

735

Housing, 3 Circuits

710000880

$21.99

736

Seal

710000881

$17.99

737

Cap

710000882

$11.49

751

Female Terminal

710000918

$7.69

767

Bus Bar

278002165

$8.79

768

Bus Bar

278002165

$8.79

769

Bus Bar

278002165

$8.79

770

Little Fuse, 3 AMP

710001008

$3.79

771

Relay, 30 AMP | Obsolete. ATV order 515176774

278002168

Unavailable

773

Fuse Cover

710001026

$21.99

775

Mount Dart

293730040

$1.04

778

Bus Bar

278002165

$8.79

798

Male Housing, 4 Circuits

278002185

$7.90

799

Wire Seal

278002186

$5.50

800

Female Terminal

278002187

$6.39

801

RESISTANCE 500 OHMS - Call your local BRP dealership

278002188

Unavailable

949

Fuse Box Ass'y

278002285

$28.49

950

Fuse Box Cover

278002286

$27.49

953

DIODE CAP - Call your local BRP dealership

278002306

Unavailable

2021

Battery Cable

278002163

$63.49

2023

FUSE DECAL - Call your local BRP dealership

278002171

Unavailable

2025

FUSE DECAL - Call your local BRP dealership

278002192

Unavailable
