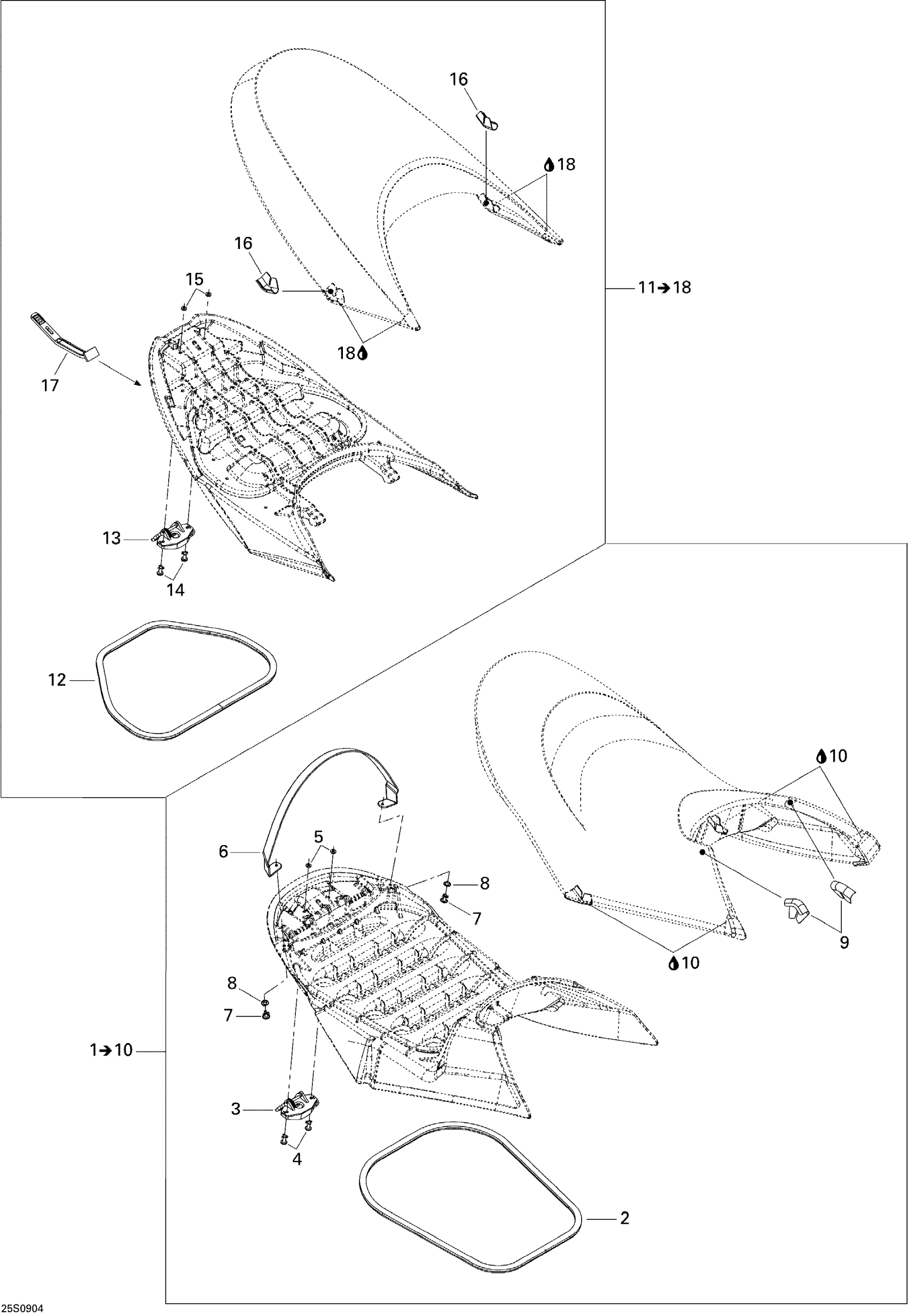

Sea-doo RXT 215, 2009 Seat Diagram

#

Description
Price

1

FRONT SEAT ASS'Y - Call your local BRP dealership | Includes 1 to 10, Silver Metallic Model

269001441

Unavailable

1

FRONT SEAT ASS'Y - Call your local BRP dealership | Includes 1 to 10, Bright Yellow Model

269001558

Unavailable

2

Was 293200062 Seal

219704366

$70.87

3

Latch Ass'y

269700109

$23.10

4

Rivet 1/4"

293150151

$7.42

5

Stainless Flat Washer M6

234061600

$0.28

6

SEAT STRAP - Call your local BRP dealership | Silver Metallic Model

269001335

Unavailable

6

SEAT STRAP - Call your local BRP dealership | Bright Yellow Model

269001445

Unavailable

7

Rivet | Model-T3

293150067

$2.63

8

Grommet

293720067

$10.55

9

SEAT CORNER - Call your local BRP dealership

269001088

Unavailable

9

Seat Corner

269000459

Unavailable

10

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

11

REAR SEAT ASS'Y - Call your local BRP dealership | Includes 11 to 18, Silver Metallic Model

269001453

Unavailable

11

Rear Seat Ass'y | Includes 11 to 18, Bright Yellow Model

269001570

Unavailable

12

Was 293200062 Seal

219704366

$70.87

13

Latch Ass'y

269700109

$23.10

14

Rivet 1/4"

293150151

$7.42

15

Stainless Flat Washer M6

234061600

$0.28

16

Not Available As Spare Part - Friction Washer

Unavailable

16

Seat Corner

269000459

Unavailable

17

Strap

269502417

$16.39

18

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable
