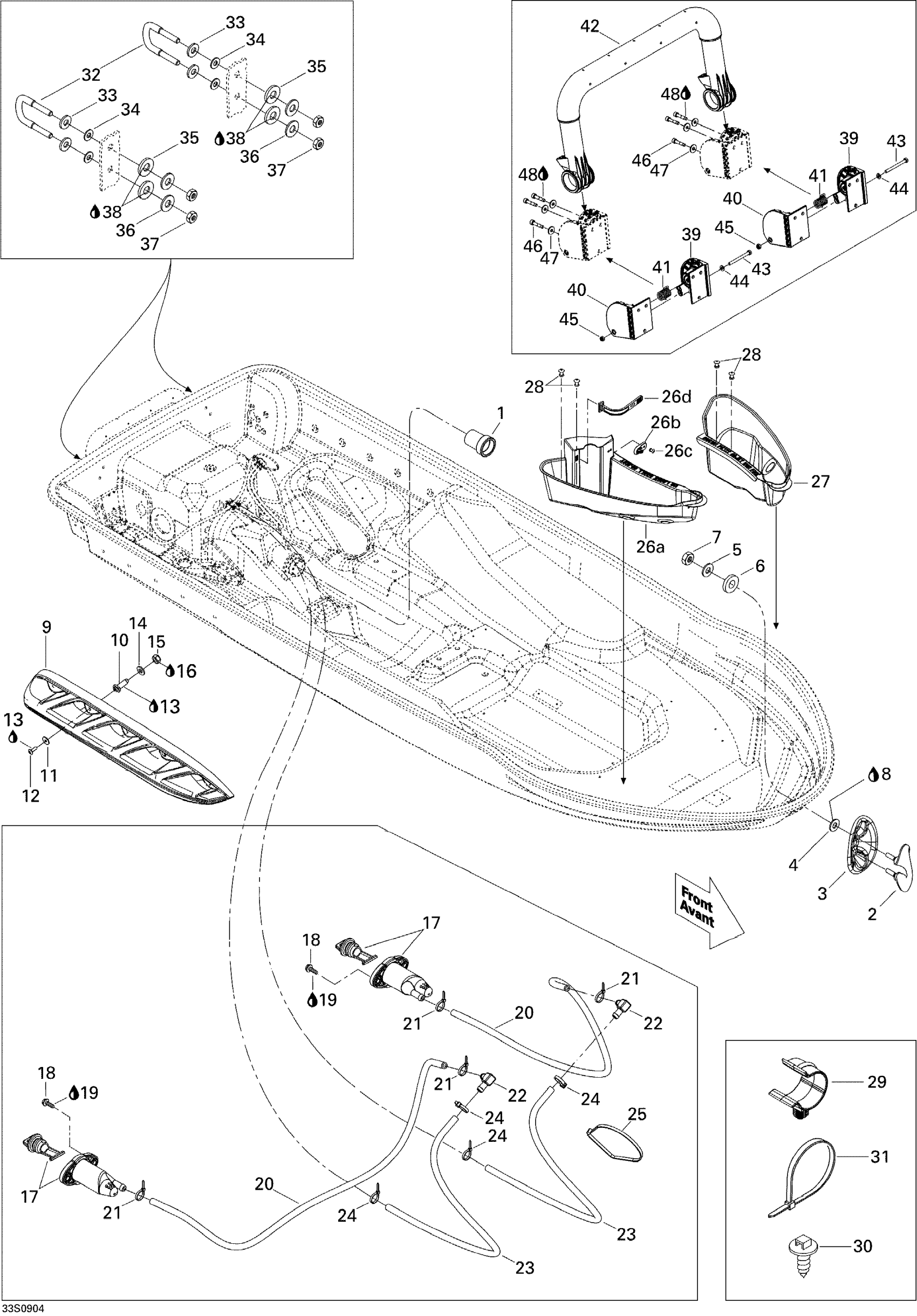

Sea-doo RXT 215, 2009 Hull Diagram

#

Description
Price

1

HULL INSERT, 50 MM - Call your local BRP dealership

292000974

Unavailable

2

Eye-Bow (Black) This part replaces 292000708.

292000452

$38.03

3

Black Shell

292001837

$17.13

4

Stainless, Flat Washer 8 mm

234081600

$0.52

5

Flat Washer 8 mm, Stainless

250200175

$1.48

6

Rubber Washer

293830037

$2.68

7

Hex. Elastic Nut M8 Brass

232581200

$1.48

8

Silicone Sealant 51388, 300 ml

296000309

$36.99

9

RH Sponson

292001878

$83.55

9

LH Sponson

292001877

$83.55

10

SPONSON ADAPTER - Call your local BRP dealership

292001046

Unavailable

11

Flat Washer M6.6 X 22

250200022

$2.15

12

TORX SCREW M6.6 X 20, STAINLESS - Call your local BRP dealership

250000299

Unavailable

13

Silicone Sealant 51388, 300 ml

296000309

$36.99

14

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

15

NUT-STOP ELASTIC DIN.985A2 - Call your local BRP dealership

250100078

Unavailable

16

Loctite 243, 10 ml

293800060

$21.49

17

Drain Plug

292001252

$32.81

18

Hex. Screw 10-14 X 7/8”

211000023

$3.34

19

Silicone Sealant 51388, 300 ml

296000309

$36.99

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

21

Tie Wrap 94 mm | 4X4

293750001

$0.96

22

ELBOW FITTING 90 - Call your local BRP dealership

293710117

Unavailable

23

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

24

Tie Wrap 94 mm | 4X4

293750001

$0.96

25

Tie Wrap 368 mm

293750008

$0.97

26a

RH Storage Tray

292001158

Unavailable

26b

Hook

269500521

Unavailable

26c

Avdel Rivet

293150027

$2.30

26d

Strap

269502417

$16.39

27

LH Storage Tray

292001307

Unavailable

28

RIVET 1/4 X 1/2 - Call your local BRP dealership

293150169

Unavailable

29

Not Available As Spare Parts

XXX

Unavailable

30

Mount Dart

293730040

$0.99

31

Tie-Rap 180 mm

414115200

$0.10

31

Tie Wrap 368 mm

293750008

$0.97

32

U-Clamp

292000933

$37.28

33

Flat Washer M8.5 x 18

293050001

$1.48

34

Flat Washer 8 mm, Nylon

234081100

$1.15

35

Rubber Washer

293830037

$2.68

36

Flat Washer 8 mm, Stainless

250200175

$1.48

37

Hex. Elastic Nut M8 Brass

232581200

$1.48

38

Silicone Sealant 51388, 300 ml

296000309

$36.99

39

A Section Support

292001509

$59.99

40

B Section Support

292001510

$59.99

41

Spring

292001259

$24.60

42

Overmolded Bar

292001204

$141.01

43

Hex. Screw M6 x 65 | Produced Before February 01 2010

207066560

$1.78

44

Stainless Flat Washer M6

234061600

$0.28

45

Hex. Elastic Stop Nut M6

232561600

$1.06

46

Socket Screw M6 X 30, Scotch Grip

250000386

$1.79

47

Flat Washer M6, Stainless

234062600

$0.73

48

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99
