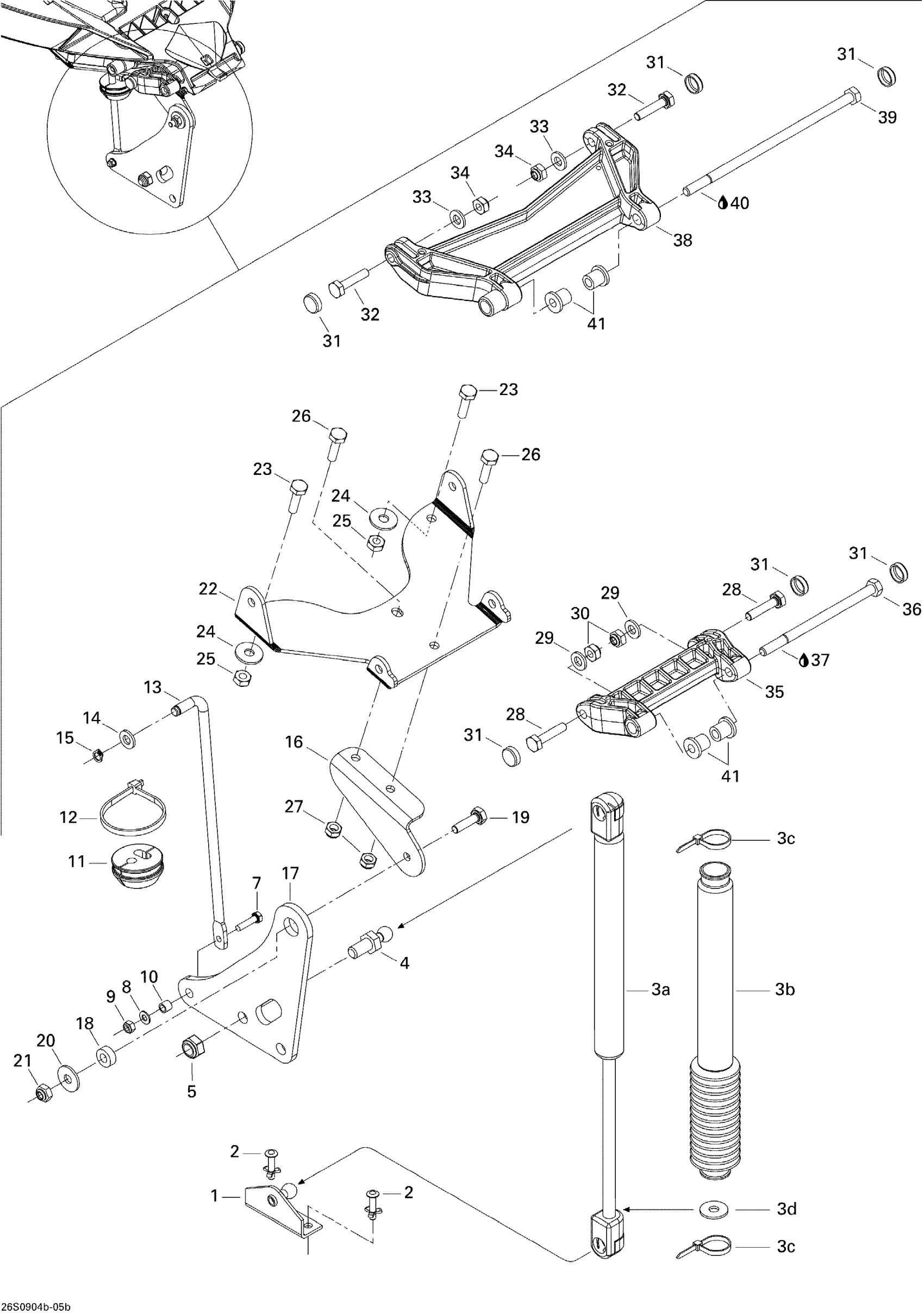

Sea-doo RXT 215, 2009 Front Storage Compartment 2 Diagram

#

Description
Price

1

SHOCK SUPPORT - Call your local BRP dealership

291002124

Unavailable

2

Avdel Rivet 3/16"

293150037

$0.54

3a

Gas Shock Ass'y

269501625

$69.37

3b

BELLOW - Call your local BRP dealership

269501557

Unavailable

3c

Tie Wrap 94 mm | 4X4

293750001

$0.96

3d

Flat Washer, Aluminum

250200033

Unavailable

4

Ball Head Stud

250300016

$13.42

5

Hex. Elastic Nut M8 Brass

232581200

$1.48

7

Hex. Screw M4 X 16 | Europe

207141660

$1.40

8

Flat Washer 4 mm, Stainless

234041600

$1.04

9

Elastic Stop Nut M4

232541600

$1.06

10

SPACER - Call your local BRP dealership

269501130

Unavailable

11

CABLE GROMMET - Call your local BRP dealership | North America

293720070

Unavailable

12

Tie-Rap 180 mm

414115200

$0.10

13

ROD - Call your local BRP dealership

269500842

Unavailable

14

Stainless Flat Washer M6

234061600

$0.28

15

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

16

SUPPORT LEVER - Call your local BRP dealership

269501742

Unavailable

17

LEVER - Call your local BRP dealership

269501576

Unavailable

18

SPACER - Call your local BRP dealership

269501172

Unavailable

19

Hex. Forming Screw M6 X 20

207162060

$1.18

20

Flat Washer M6, Stainless

234062600

$0.73

21

Elastic Stop Nut M6, Brass

232561200

$4.03

22

PIVOT SUPPORT - Call your local BRP dealership

269501639

Unavailable

23

Hex. Screw M6 X 25

207162560

$1.40

24

Flat Washer M6, Stainless

234062600

$0.73

25

Elastic Stop Nut M6, Brass

232561200

$4.03

26

Hex. Screw M6 X 25

207162560

$1.40

27

Elastic Stop Nut M6, Brass

232561200

$4.03

28

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

29

Stainless Flat Washer M6

234061600

$0.28

30

Elastic Stop Nut M6, Brass

232561200

$4.03

31

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

32

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

33

Stainless Flat Washer M6

234061600

$0.28

34

Elastic Stop Nut M6, Brass

232561200

$4.03

35

FRONT ARM - Call your local BRP dealership

269501482

Unavailable

36

Hex. Screw M6 X 100

230060060

$6.99

37

Loctite 243, 10 ml

293800060

$21.49

38

REAR ARM - Call your local BRP dealership

269501481

Unavailable

39

Hex. Screw M6 X 150

230065060

$9.40

40

Loctite 271, 10 ml

293800005

$23.85

41

Sleeve

269500706

$4.30
