Description

Price

1

Steering Harness Ass’y | SERV

278002383

$359.99

2

Female Terminal

278000632

$2.09

3

Female Connector, 2 Circuits

409207300

$9.85

4

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

5

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

6

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

7

START/STOP SWITCH - Call your local BRP dealership

278001733

Unavailable

8

Interrupteur *Safety Switch | SERV This part replaces 278002350.

278002774

$114.99

9

Buzzer | SERV

278002290

$36.99

10

Digital Multifunction Gauge Harness | Includes 16 to 21

278002111

$49.99

11

Female Terminal

278000632

$2.09

12

Male Connector, 4 Circuits | CE

278000739

$19.49

13

Male Lock, 4 Circuits | CE

278000738

$3.09

14

Female Terminal

278001114

$3.19

15

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

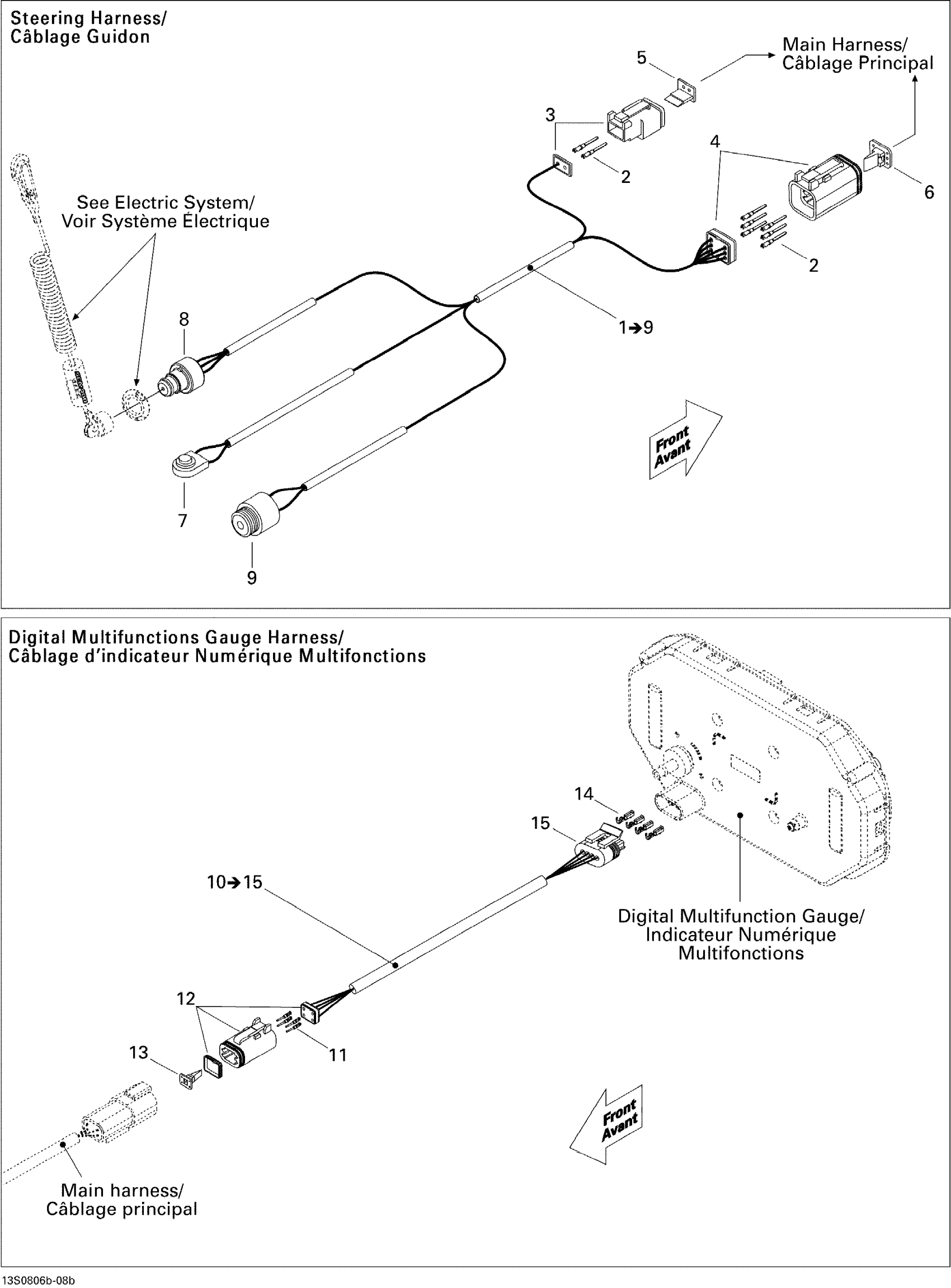

Sea-doo RXT 215, 2008 Electrical Harness 2 Diagram

Steering Harness Ass’y | SERV

Female Terminal

Female Connector, 2 Circuits

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

START/STOP SWITCH - Call your local BRP dealership

Interrupteur *Safety Switch | SERV This part replaces 278002350.

Buzzer | SERV

Digital Multifunction Gauge Harness | Includes 16 to 21

Female Terminal

Male Connector, 4 Circuits | CE

Male Lock, 4 Circuits | CE

Female Terminal

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership
