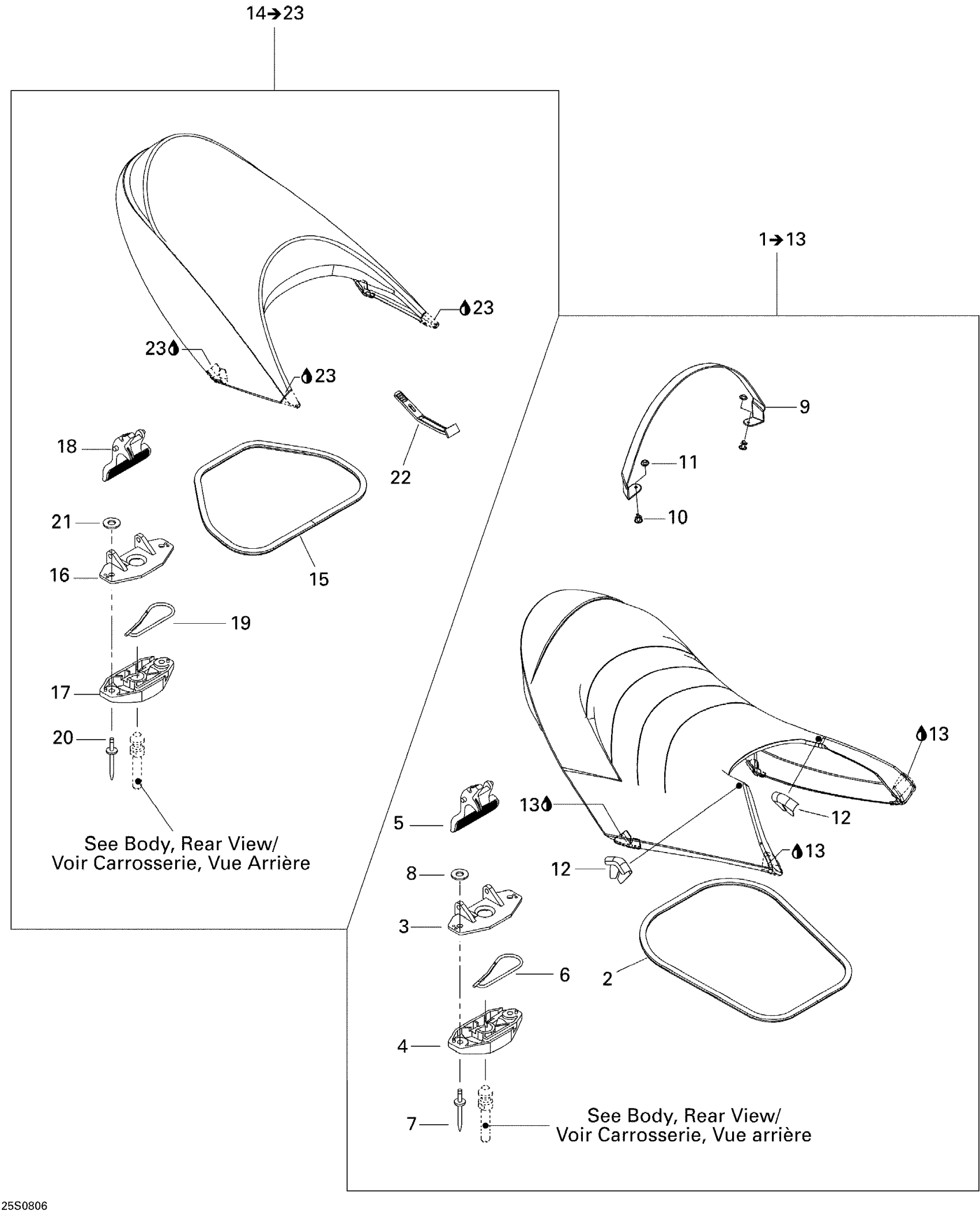

Sea-doo RXT 215, 2008 Seat Diagram

#

Description
Price

1

FRONT SEAT ASS'Y - Call your local BRP dealership | Includes 1 to 10, Silver Metallic Model

269001441

Unavailable

1

FRONT SEAT ASS'Y, RED/WHITE - Call your local BRP dealership | Includes 1 to 13, Viper Red

269001443

Unavailable

2

Was 293200062 Seal

219704366

$76.49

3

Latch Ass'y

269700109

$24.99

4

Latch Ass'y

269700109

$24.99

5

Latch Ass'y

269700109

$24.99

6

Latch Spring

269700017

$9.19

7

Rivet 1/4"

293150151

$8.04

8

Stainless Flat Washer M6

234061600

$0.33

9

SEAT STRAP - Call your local BRP dealership | Silver Metallic Model

269001335

Unavailable

9

SEAT STRAP - Call your local BRP dealership | Bright Yellow Model

269001445

Unavailable

10

Rivet | Model-T3

293150067

$2.89

11

Grommet

293720067

$12.99

12

SEAT CORNER - Call your local BRP dealership

269001088

Unavailable

13

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

14

REAR SEAT ASS'Y - Call your local BRP dealership | Includes 10 to 16

269001434

Unavailable

14

REAR SEAT ASS'Y - Call your local BRP dealership | Includes 11 to 18, Silver Metallic Model

269001453

Unavailable

15

Was 293200062 Seal

219704366

$76.49

16

Latch Ass'y

269700109

$24.99

17

Latch Ass'y

269700109

$24.99

18

Latch Ass'y

269700109

$24.99

19

Latch Spring

269700017

$9.19

20

Rivet 1/4"

293150151

$8.04

21

Stainless Flat Washer M6

234061600

$0.33

22

Strap

269502417

$17.69

23

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99
