- Partiron
- OEM Parts
- Sea-doo
- Watercraft
- 2008
- RXT
- RXT 215, 2008
09- Body, Front View

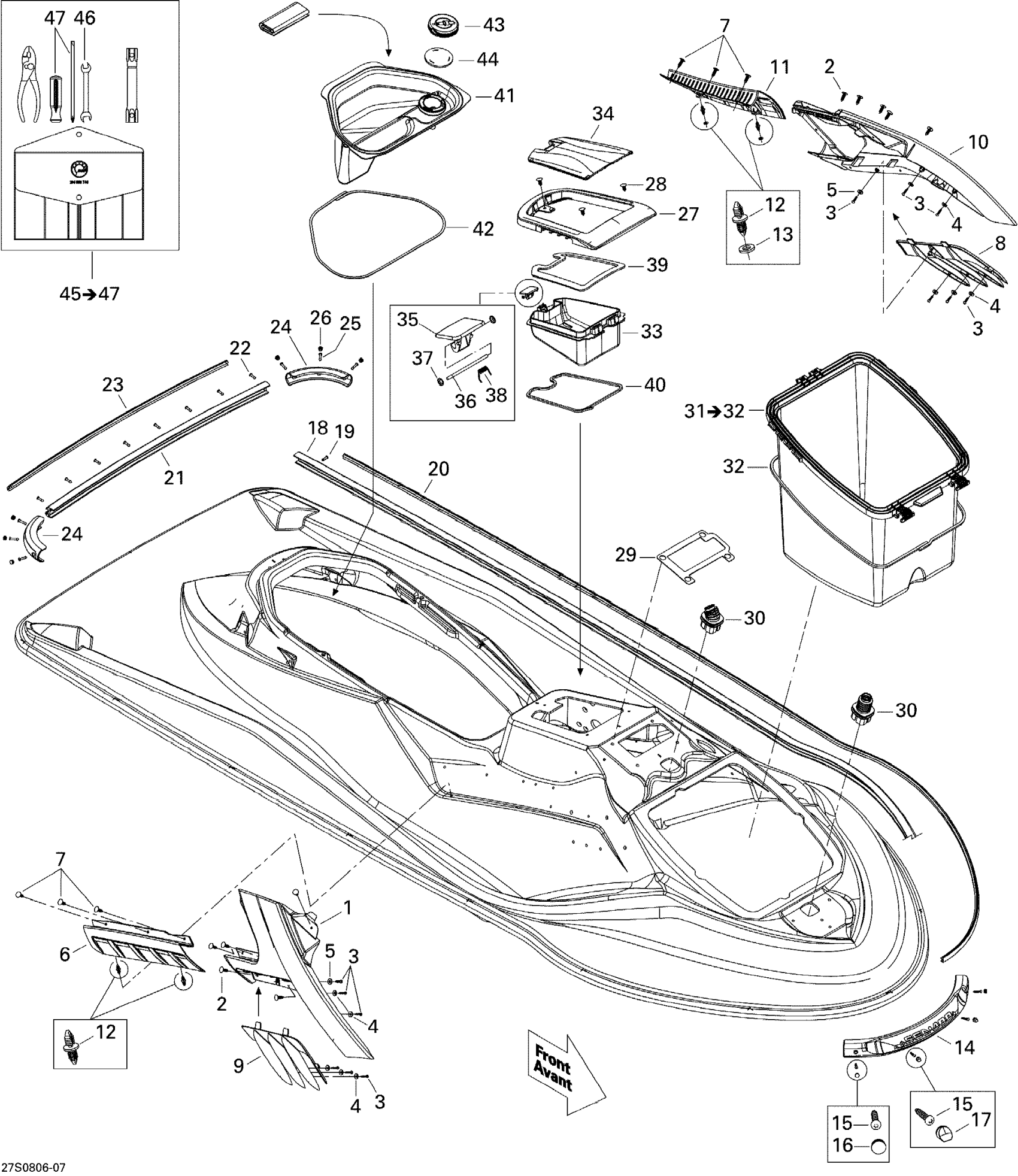

Sea-doo RXT 215, 2008 09- Body, Front View Diagram
#
1
RH SIDE MOULDING - Call your local BRP dealership | Bright Yellow Model
269501515
Unavailable
1
RH SIDE MOULDING - Call your local BRP dealership | Silver Metallic Model
269501652
Unavailable
2
Black, Dart
293730006
$0.99
3
Hex. Flange Screw K40 X 25
241142560
$2.64
4
WASHER 4.3 MM, NYLON - Call your local BRP dealership
250200055
Unavailable
5
Flat Washer 4 mm, Stainless
234042600
$1.15
6
RH SIDE GRILL - Call your local BRP dealership | Bright Yellow Model
269501518
Unavailable
6
RH SIDE GRILL - Call your local BRP dealership | Silver Metallic Model
269501653
Unavailable
7
Black, Dart
293730006
$0.99
8
RH SIDE MOULDING - Call your local BRP dealership | Bright Yellow Model
269501531
Unavailable
8
RH SIDE MOULDING, CHROME - Call your local BRP dealership | Silver Metallic Model
269501406
Unavailable
9
LH SIDE MOULDING - Call your local BRP dealership | Bright Yellow Model
269501532
Unavailable
9
LH SIDE MOULDING, CHROME - Call your local BRP dealership | Silver Metallic Model
269501408
Unavailable
10
LH SIDE MOULDING - Call your local BRP dealership | Bright Yellow Model
269501516
Unavailable
10
LH SIDE MOULDING - Call your local BRP dealership | Silver Metallic Model
269501654
Unavailable
11
LH SIDE GRILL - Call your local BRP dealership | Bright Yellow Model
269501517
Unavailable
11
LH Side Grille | Silver Metallic Model
269501655
Unavailable
12
DART, DOUBLE - Call your local BRP dealership
293730008
Unavailable
13
Seal
293200099
Unavailable
14
BUMPER NOSE, BLACK - Call your local BRP dealership
291001942
Unavailable
15
TORX SCREW 10-14 X 1-1/8 - Call your local BRP dealership
250000236
Unavailable
16
Bumper Plug, Black
291001519
$5.49
17
Bumper Plug, Black
291001040
$7.39
18
Black, Side Bumper
204050270
$179.99
19
Pop Rivet 3/16"
293150005
$0.52
20
SIDE BUMPER TRIM, VIPER RED - Call your local BRP dealership
291001897
Unavailable
20
SIDE BUMPER TRIM - Call your local BRP dealership
204050271
Unavailable
21
REAR BUMPER, BLACK - Call your local BRP dealership
291002242
Unavailable
22
Pop Rivet 3/16"
293150005
$0.52
23
Rear Bumper Trim, Viper Red
291001484
Unavailable
23
Black, Rear Bumper Trim - Call your local BRP dealership
204050279
Unavailable
24
Bumper Corner
291002244
$48.99
25
Pop Rivet 3/16"
293150013
$1.37
26
Bumper Plug, Black
291000339
$2.99
27
Cover Trim, Black
269501031
$53.99
28
Black, Dart
293730006
$0.99
29
GASKET - Call your local BRP dealership
293250171
Unavailable
30
GROMMET - Call your local BRP dealership
293720042
Unavailable
31
STORAGE BOX - Call your local BRP dealership
269501583
Unavailable
32
Gasket 1000Mm Long
219704374
$2.01
33
GLOVE BOX - Call your local BRP dealership
269500968
Unavailable
34
GLOVE BOX DOOR - Call your local BRP dealership
269501648
Unavailable
35
Latch, Black
269500553
$21.99
36
Pin
211400008
$9.10
37
Push Nut | Not shown
211100002
$2.19
38
Latch Spring
291000922
$7.39
39
GASKET - Call your local BRP dealership
293250126
Unavailable
40
GASKET - Call your local BRP dealership
293250127
Unavailable
41
Rear Tray
269501036
Unavailable
42
GASKET PAC = 1.0m - Call your local BRP dealership
293250008
Unavailable
43
COVER - Call your local BRP dealership
269000788
Unavailable
44
COVER SEAL - Call your local BRP dealership
269000810
Unavailable
45
TOOL KIT - Call your local BRP dealership | Includes 43 to 46
294000744
Unavailable
46
FORK WRENCH - Call your local BRP dealership
529017300
Unavailable
47
SCREW DRIVER - Call your local BRP dealership
529000004
Unavailable
