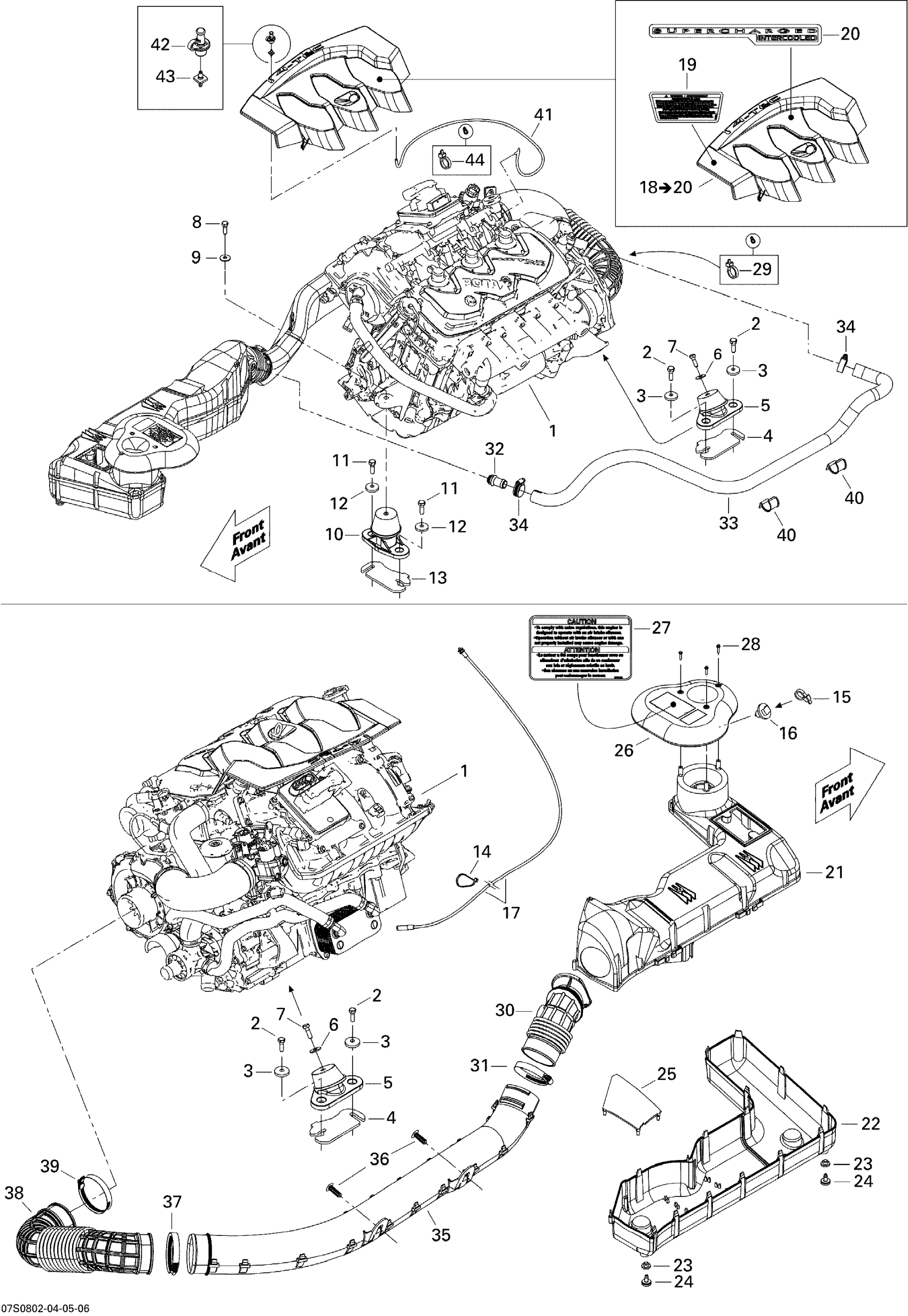

Sea-doo RXT 215, 2008 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Long Block This part replaces 420150338.

420150394

$3,999.99

1

Engine Long Block This part replaces 420150338.

420150394

$3,999.99

2

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.18

3

Cone Washer

250200018

$4.64

4

Shim 1.3 mm

270000762

$9.04

5

Engine Support Ass'y

270001081

$84.47

6

Flat Washer 8 mm, Stainless

234082600

$1.98

7

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

8

Hex. Screw M8 X 25, Scotch Grip

207382560

$1.98

9

Flat Washer 8 mm, Stainless

234082600

$1.98

10

Engine Support Ass'y

270001096

$77.32

11

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.18

12

Cone Washer

250200018

$4.64

13

Shim 1.3 mm

270000762

$9.04

14

Tie-Rap 180 mm

414115200

$0.09

15

Tie Wrap 142 mm

293750002

$0.88

16

Mount Dart

293730040

$0.86

17

THROTTLE CABLE - Call your local BRP dealership

277001121

Unavailable

18

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

19

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

20

IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership

219902676

Unavailable

21

AIR SILENCER UPPER - Call your local BRP dealership

273000245

Unavailable

22

AIR SILENCER LOWER - Call your local BRP dealership

273000190

Unavailable

23

GROMMET - Call your local BRP dealership

293720064

Unavailable

24

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

25

DEFLECTOR - Call your local BRP dealership

273000206

Unavailable

26

AIR SILENCER COVER - Call your local BRP dealership

273000266

Unavailable

27

Caution Decal, Air Silencer

219902673

Unavailable

28

Hex. Flange Screw K40 X 16

241141660

$1.25

29

Tie Wrap 142 mm

293750002

$0.88

30

INTAKE HOSE - Call your local BRP dealership

273000186

Unavailable

31

Tridon Clamp

293650179

$8.81

32

Breather Valve

273000234

$10.63

33

FORMED HOSE - Call your local BRP dealership

270000838

Unavailable

34

Tridon Gear Clamp

293650051

$3.61

35

HOSE INTAKE - Call your local BRP dealership | Engine 1500 HO ACE, 1630 ACE HO

273000233

Unavailable

36

Black, Dart

293730006

$0.81

37

Tridon Clamp

293650179

$8.81

38

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

Unavailable

39

Tridon Clamp

293650179

$8.81

40

Retainer

275500664

$10.91

41

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

42

GROMMET CAP - Call your local BRP dealership

293830120

Unavailable

43

CONNECTOR - Call your local BRP dealership

293710107

$0.93

44

Tie Wrap 142 mm

293750002

$0.88
