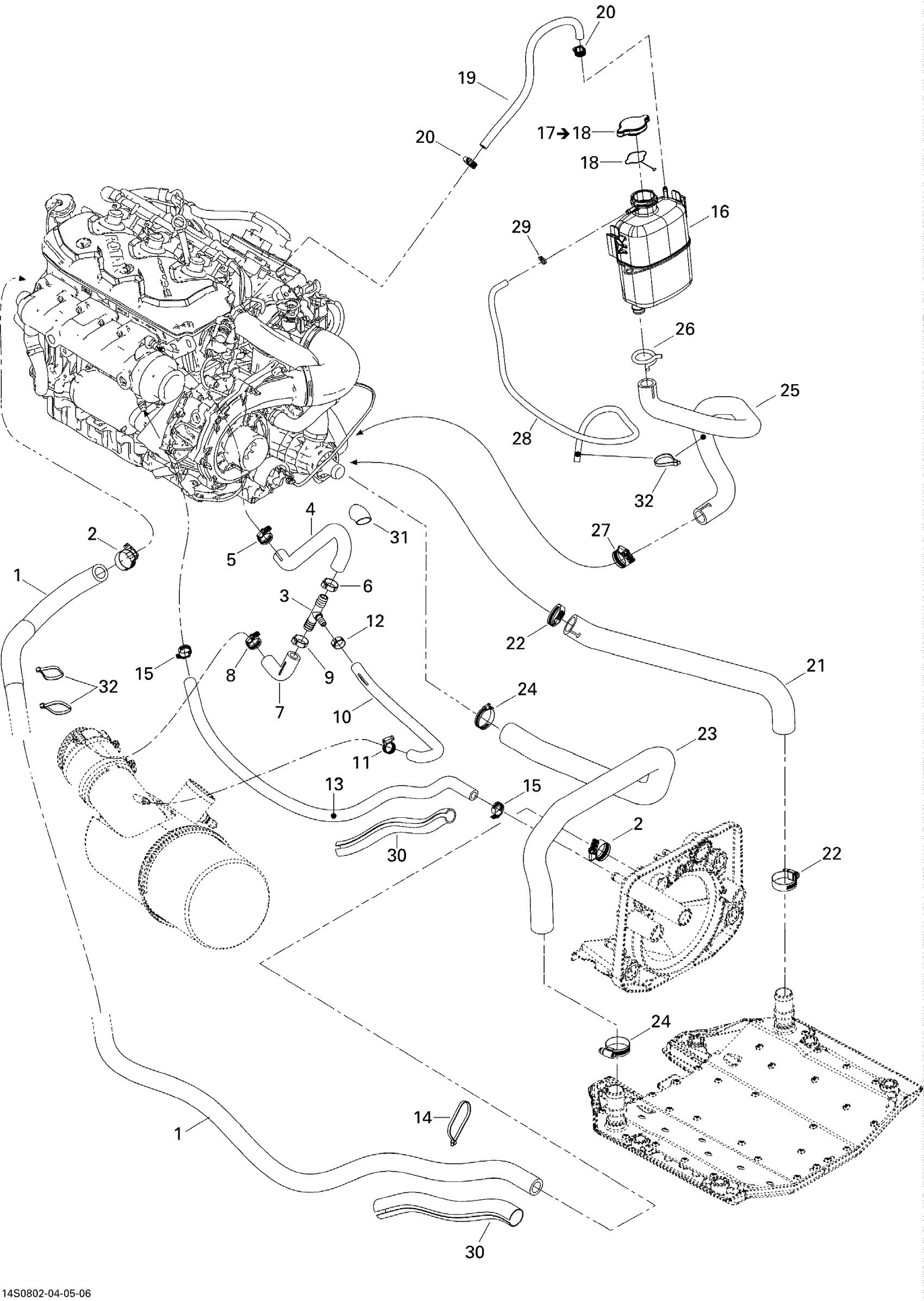

Sea-doo RXT 215, 2008 Cooling System Diagram

#

Description
Price

1

Formed Hose

276000138

Unavailable

2

Tridon Gear Clamp

293650051

$4.19

3

T-Fitting

293710116

$17.62

4

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

5

Tridon Gear Clamp

293650172

$3.09

6

Oetiker Clamp

293650012

$7.49

7

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

8

Tridon Gear Clamp

293650172

$3.09

9

Oetiker Clamp

293650012

$7.49

10

Formed Hose | Without Catalyst

276000246

$19.49

11

Tridon Gear Clamp

293650171

$3.09

12

Oetiker Clamp | Europe

293650030

$5.19

13

Was 276000001 Hose 12.5 mm

219704394

$51.99

14

Tie Wrap 368 mm

293750008

$1.04

15

Tridon Gear Clamp

293650172

$3.09

16

Coolant Tank

276000086

$109.99

17

Pressure Cap | Includes 720 to 720a

276000100

$25.99

18

Latch - Call your local BRP dealership | Not Shown

276000127

Unavailable

19

Was 275500549 Hose 1/4"

219704357

$194.99

20

Tridon Gear Clamp

293650170

$1.99

21

RH Radiator Hose

276000248

$58.99

22

Tridon Gear Clamp

293650045

$5.69

23

LH RADIATOR HOSE - Call your local BRP dealership

276000250

Unavailable

24

Tridon Gear Clamp

293650045

$5.69

25

Formed Return Hose

276000144

Unavailable

26

Spring Clamp

293650115

$3.09

27

Tridon Gear Clamp

293650019

$5.82

28

Polyurethane Hose 10000Mm Long

219704410

$56.99

29

Tie Wrap 94 mm | 4X4

293750001

$1.03

30

Tubing 25 MM 1000MM Long

219704402

$15.99

31

PROTECTOR TUBE 25 MM - Call your local BRP dealership

276000162

Unavailable

32

Tie-Rap 180 mm

414115200

$0.11
