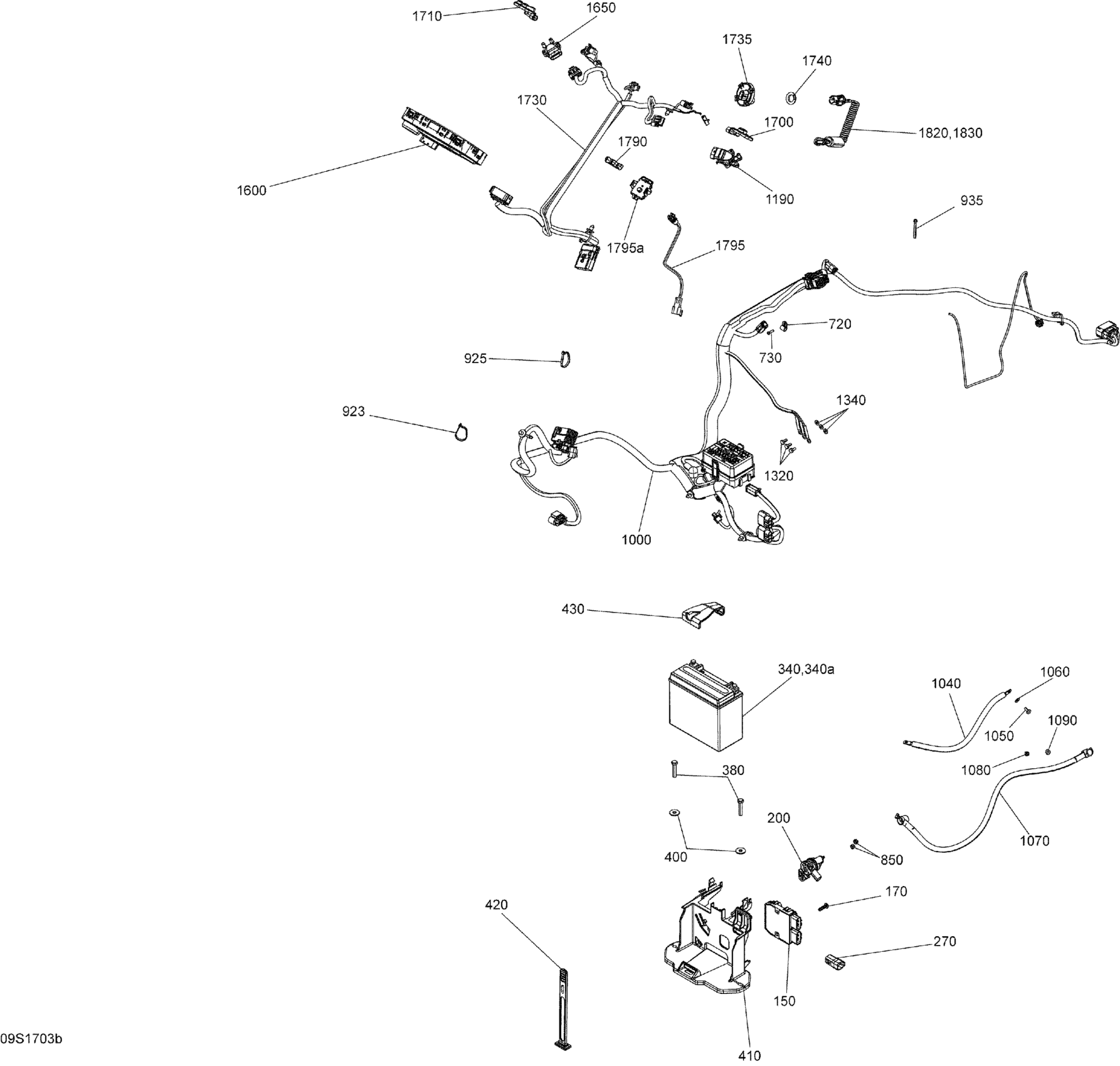

Sea-doo RXT, 2017 Electrical System - All Models Diagram

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

Torx Screw Plastite M6

250000466

$6.98

Starter Relay

278003012

$42.49

Diagnostic Connector

278002704

$19.49

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Battery Bolt Kit

250000282

$7.29

Hex. Screw M8 X 40

207184060

$2.22

Flat Washer 8 mm, Stainless

234082600

$2.43

Batt. Support | Except Engine 900HO ACE

278003136

$28.99

Strap

269502417

$17.69

Clip

278003521

$17.62

Hose Clamp

293650257

$5.99

Flange Torx Screw K40 X 16

250000287

$2.11

Elastic Stop Nut M6, Brass

232561200

$4.23

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 180 mm

414115200

$0.11

Tie Rap, 533 mm

293750047

$2.09

Main Harness

278003243

$1.00

Main Harness

278003333

$1.00

Cable Ground

278003211

$39.99

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

Stainless Flat Washer M6

234061600

$0.33

Starter Cable

278003369

$39.99

Elastic Stop Nut M6, Brass

232561200

$4.23

Stainless Flat Washer M6

234061600

$0.33

LH Throttle Sensor

278002284

$119.99

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

Stainless Flat Washer M6

234061600

$0.33

LCD Gauge | Model GTR-X

278003531

$819.99

LCD Gauge | Model GTX LTD S 260

278003380

$959.99

Throttle Position Sensor

278002283

$119.99

Switch LH VTS/Sport/Eco | Package STD

278002767

$126.99

Switch RH Mode/Set

278002602

$126.99

Steering Harness Ass'y

278003266

$319.99

Steering Harness Ass'y

278003265

$319.99

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

Safety Nut (DESS Switch)

278002963

$3.28

Not Available As Spare Part - Friction Washer

Unavailable

-Sensor Simulator O.T.A.S. Ass'y | Model GTI Engine 130, 155

278003615

$104.99

Safety Lanyard Ass'y, RFID

278003400

$84.99

Safety Lanyard Ass'y, Learning / RFID

278003401

$84.99
