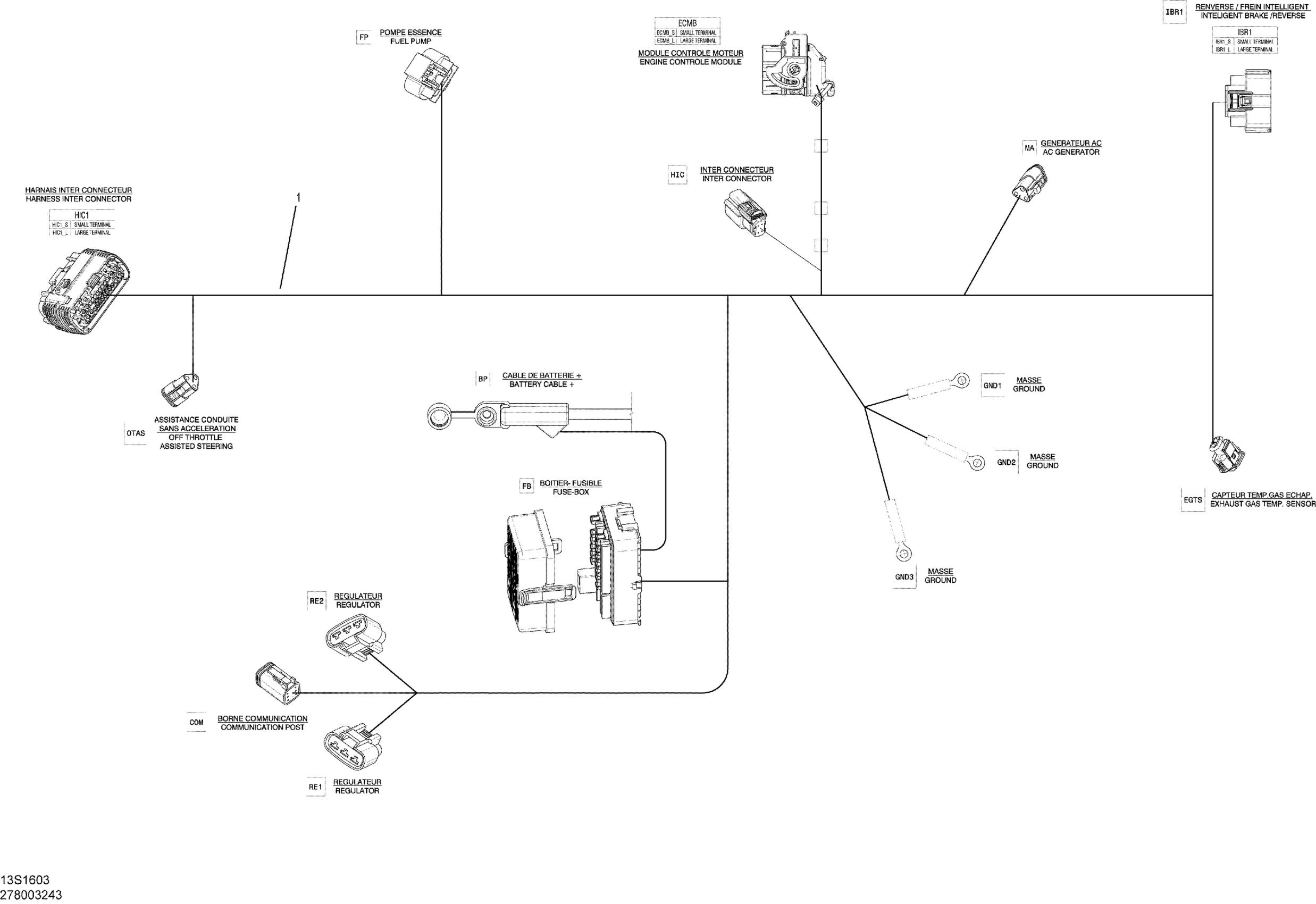

Sea-doo RXT, 2017 Electrical Harness - Main Harness - 278003243 (Refer to Electrical System for Model) Diagram

#

Description
Price

1

Main Harness

278003243

$1.00

BP

Battery Cable

278002815

$45.49

COM

Housing, 6 Circuits

278002896

$14.99

COM

Male Wedge, 6 Circuits

515175678

$5.39

COM

Sealing Cap

293000052

$3.19

COM

Female Terminal

278000632

$2.09

COM

Female Terminal

278001665

$4.55

ECMB_L

Plug

710001593

$2.21

ECMB_L

Female Terminal

710001590

$2.09

ECMB_L

Female Terminal

710001727

$3.19

ECMB_S

Cover, 48 positions

710001591

$12.18

ECMB_S

Female Terminal Housing, 48 Circuits

710001588

$48.49

ECMB_S

Plug

710001592

$2.21

ECMB_S

Female Terminal

710001589

$2.21

EGTS

Housing

710001136

$13.22

EGTS

Seal

415128501

$1.89

EGTS

Female Terminal

710001137

$4.55

FB

Bus Bar

278002165

$8.79

FB

Bus Bar

278002165

$8.79

FB

Bus Bar

278002165

$8.79

FB

Bus Bar

278002165

$8.79

FB

Bus Bar

278002165

$8.79

FB

Bus Bar

278002165

$8.79

FB

Bus Bar

278002165

$8.79

FB

Fuse Cover This part replaces 278002529.

278002823

$14.83

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 5 Amperes

710000742

$8.79

FB

Little Fuse, 10 Amperes

710000744

$8.79

FB

Little Fuse, 10 Amperes

710000744

$8.79

FB

Little Fuse, 10 Amperes

710000744

$8.79

FB

Little Fuse, 10 Amperes

710000744

$8.79

FB

Little Fuse, 15 Ampere

710000745

$8.49

FB

Little Fuse, 15 Ampere

710000745

$8.49

FB

Little Fuse, 30 Amperes

710000747

$8.49

FB

Little Fuse, 30 Amperes

710000747

$8.49

FB

Little Fuse, 30 Amperes

710000747

$8.49

FB

Little Fuse, 3 AMP

710001008

$3.79

FB

Little Fuse, 3 AMP

710001008

$3.79

FB

Little Fuse, 3 AMP

710001008

$3.79

FB

Fuse Base Ass'y This part replaces 278002878.

278002946

$33.99

FB

Seal Plug

278002880

$7.86

FB

Relay 30 Amp

278003828

$13.99

FB

Wire Seal

278000218

$4.39

FB

Wire Seal

710000048

$7.69

FB

Wire Seal

278001065

$7.69

FB

Female Terminal

710000890

$4.55

FB

Female Terminal

710000918

$7.69

FB

Female Terminal

278002578

$1.04

FP

Male Housing, 4 Circuits

278002185

$7.90

FP

Wire Seal

278002186

$5.50

FP

Female Terminal

278002187

$6.39

GND1

Open Barrel

278000992

$2.21

GND2

Open Barrel Terminal

278001392

$4.79

GND3

Open Barrel Terminal

278001392

$4.79

HIC

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278002854

Unavailable

HIC

Female Terminal | Not Shown

278002642

$3.79

HIC1_L

Female Terminal

278002455

$3.79

HIC1_S

HOUSING - Call your local BRP dealership

278002451

Unavailable

HIC1_S

Female Terminal | Not Shown

278002453

$5.79

HIC1_S

Female Terminal | Not Shown

278002642

$3.79

IBR1_L

Seal Plug

278002880

$7.86

IBR1_L

Seal

278003046

$0.92

IBR1_L

Female Terminal

278003045

$2.99

IBR1_S

Female Housing ,16 Circuits

278003484

$17.59

IBR1_S

Sealing Cap

278002860

$1.79

IBR1_S

Female Terminal | Not Shown

278002453

$5.79

MA

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515175671

Unavailable

MA

Female Lock, 3 Circuits

515175676

$5.39

MA

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

OTAS

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

OTAS

Female Lock

409207200

$4.39

OTAS

Female Terminal

278001665

$4.55

RE1

Housing, 3 Circuits

710000880

$21.99

RE1

Seal

710000881

$17.99

RE1

Female Terminal

710000877

$9.12

RE2

Female Housing, 3 Circuits

710000879

$25.99

RE2

Cap

710000882

$11.49

RE2

Seal

710000881

$17.99

RE2

Female Terminal

710000877

$9.12
