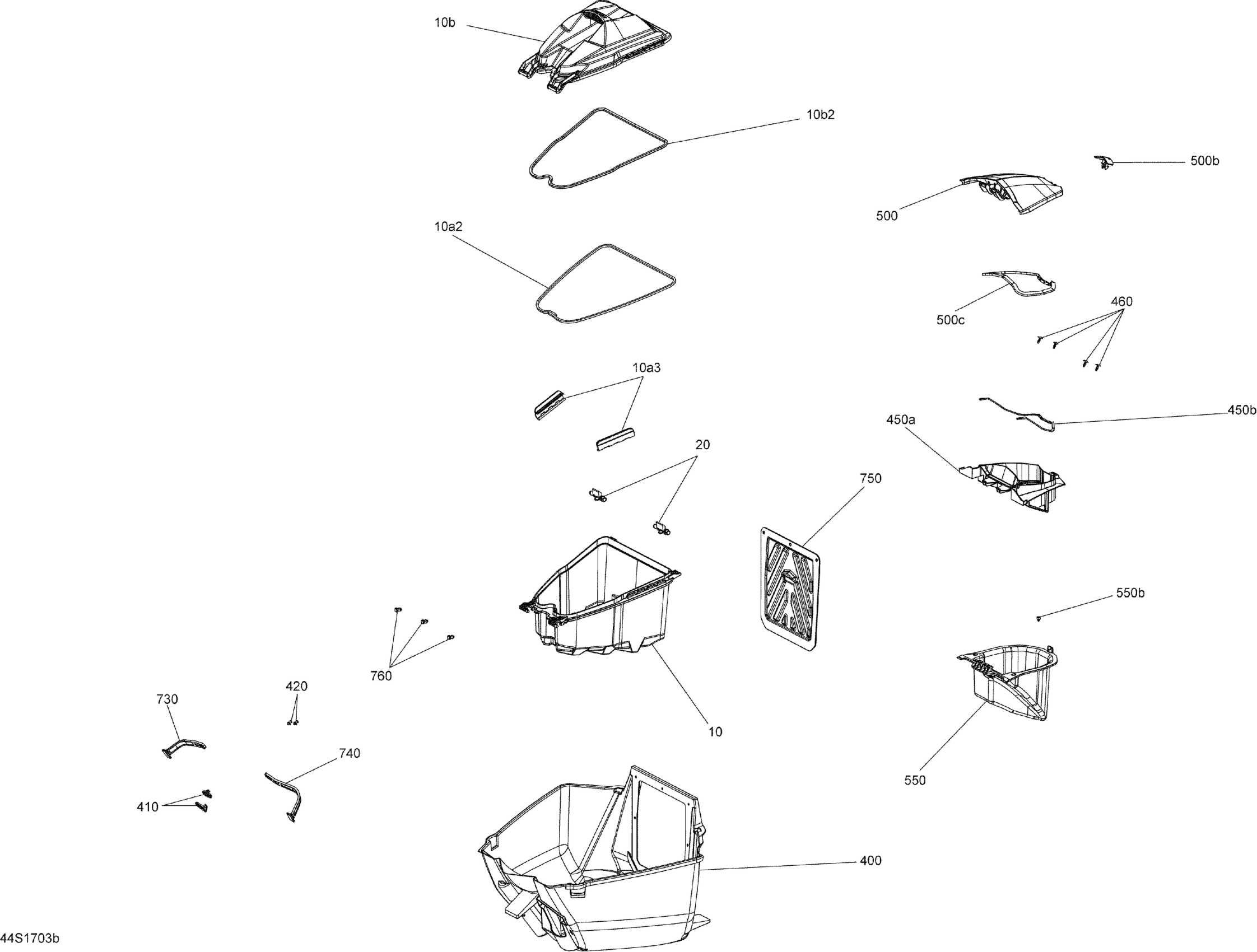

Sea-doo RXT, 2017 09- Storage Compartments - All Models Diagram

Description

Price

10a>10a3

Storage Bin Ass'y | Includes 10a to 10a2

264000118

$76.99

10a2

Gasket 1000Mm Long

219704374

$2.01

10a3

Clip

269501609

$16.17

10b

Storage Bin Cover Ass'y | Includes 10b to 10b2

264000120

$39.99

10b2

NEOPRENE SEAL - Call your local BRP dealership

293250210

Unavailable

Latch

264000024

$19.99

450a

GLOVE BOX EXT. - Call your local BRP dealership

264000112

Unavailable

450b

SEAL 1000MM LONG - Call your local BRP dealership

219704381

Unavailable

460

Black, Dart

293730011

$0.99

500>500c

Glove Door Ass'y | Includes 500 to 500c

264000111

$88.99

500b

Black, Latch

264000164

$15.99

500c

GASKET - Call your local BRP dealership

293250367

$25.99

550>550b

GLOVE BOX ASS'Y - Call your local BRP dealership | Includes 550 to 550b

264000031

Unavailable

550b

Rubber Bumper

293830005

$8.09

400

Not Available As Spare Part - Friction Washer

Unavailable

410

Hook

269500521

$9.09

420

Avdel Rivet

293150027

$2.49

730

Strap

269502417

$17.69

740

Strap

269502145

$14.30

750

DOOR COMPARTMENT - Call your local BRP dealership

264000114

Unavailable

760

Tuflok Plastic Rivet

293150230

$1.47
