Partiron

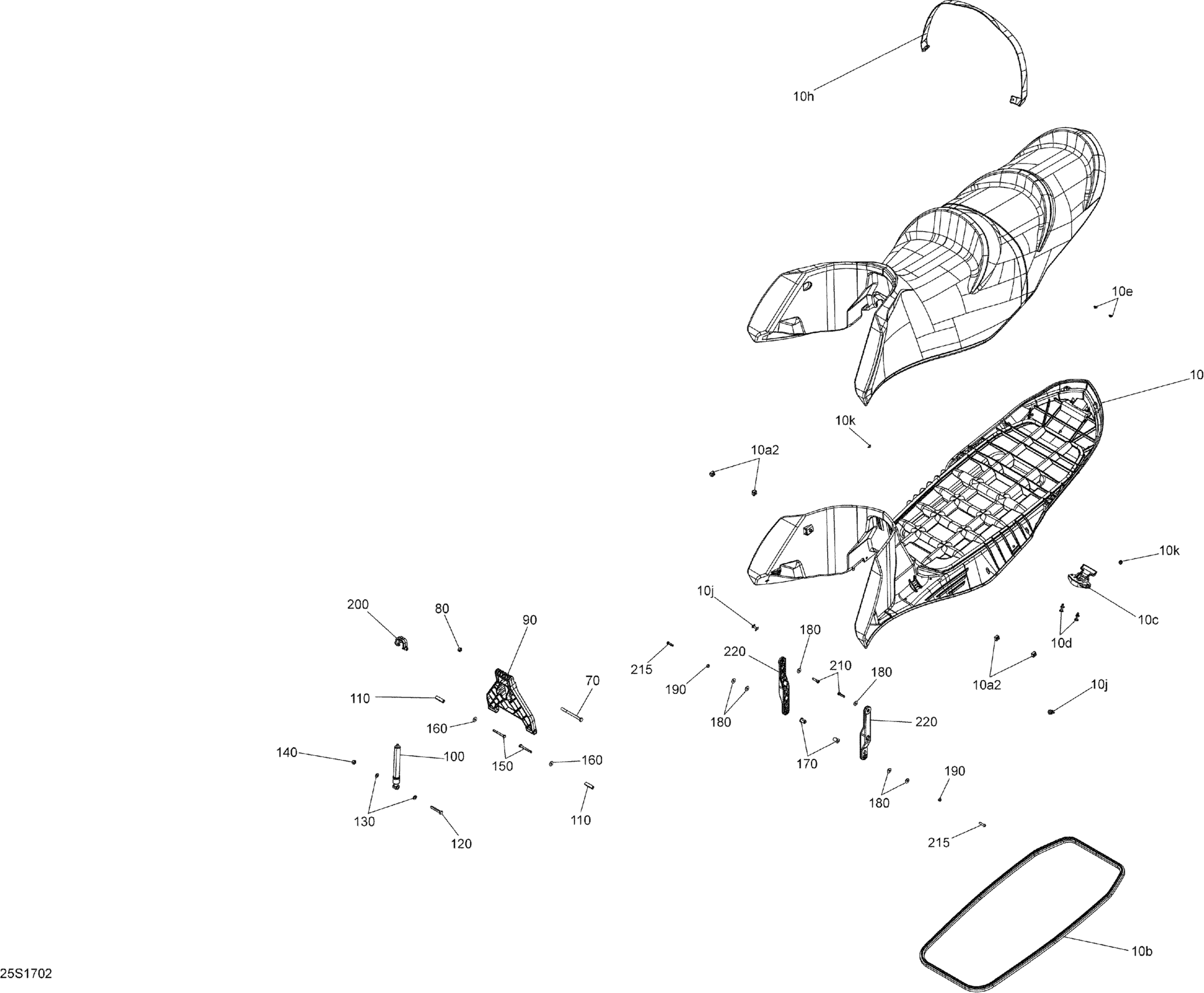

Sea-doo RXT, 2017 Seat - All Models Diagram

#

Description
Price

10>10k

Seat Ass'y | RXT-X Dragon Red

269002918

$967.17

10>10k

Antracite Silver, Seat Ass'y | RXT-X White

269003016

$967.17

10>10k

Gulfstream Blue, Seat Ass'y | RXT Black

269003068

$989.99

10a2

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

10b

Was 293200062 Seal

219704366

$61.72

10c

Latch Ass'y

269700116

$25.97

10d

Rivet 1/4"

293150151

$6.46

10e

Grommet

293720067

$9.19

10h

Seat Strap | RXT-X Dragon Red

269002834

$36.99

10h

SEAT STRAP - Call your local BRP dealership | RXT-X White

269002991

Unavailable

10h

Seat Strap | RXT Black

269001676

$36.99

10j

Rivet | Model-T3

293150067

$2.29

10k

Grommet

293720067

$9.19

70

HEX. SCREW M8 X 100 - Call your local BRP dealership

230080060

Unavailable

80

Hex. Elastic Nut M8 Brass

232581200

$1.29

90

Center Arm

269502120

$19.47

100

Shock

269002895

$51.32

110

Spacer

269001589

$14.27

120

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

130

Stainless, Flat Washer 8 mm

234081600

$0.46

140

Hex. Elastic Nut M8 Brass

232581200

$1.29

150

Hex. Screw M6 X 55, Scotch Grip | Except Europe

207265560

$6.08

160

Flat Washer M6, Stainless

234062600

$0.64

170

Expansion Nut M6 X 1

250100150

$1.74

180

Flat Washer M6, Stainless

234062600

$0.64

190

Spacer

269001588

$9.62

200

End Fitting

269002077

$12.32

210

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.70

215

Torx Screw M6 X 25, Scotch Grip

250000328

$1.46

220

LATERAL ARM - Call your local BRP dealership | Model without Suspension

269002978

Unavailable
