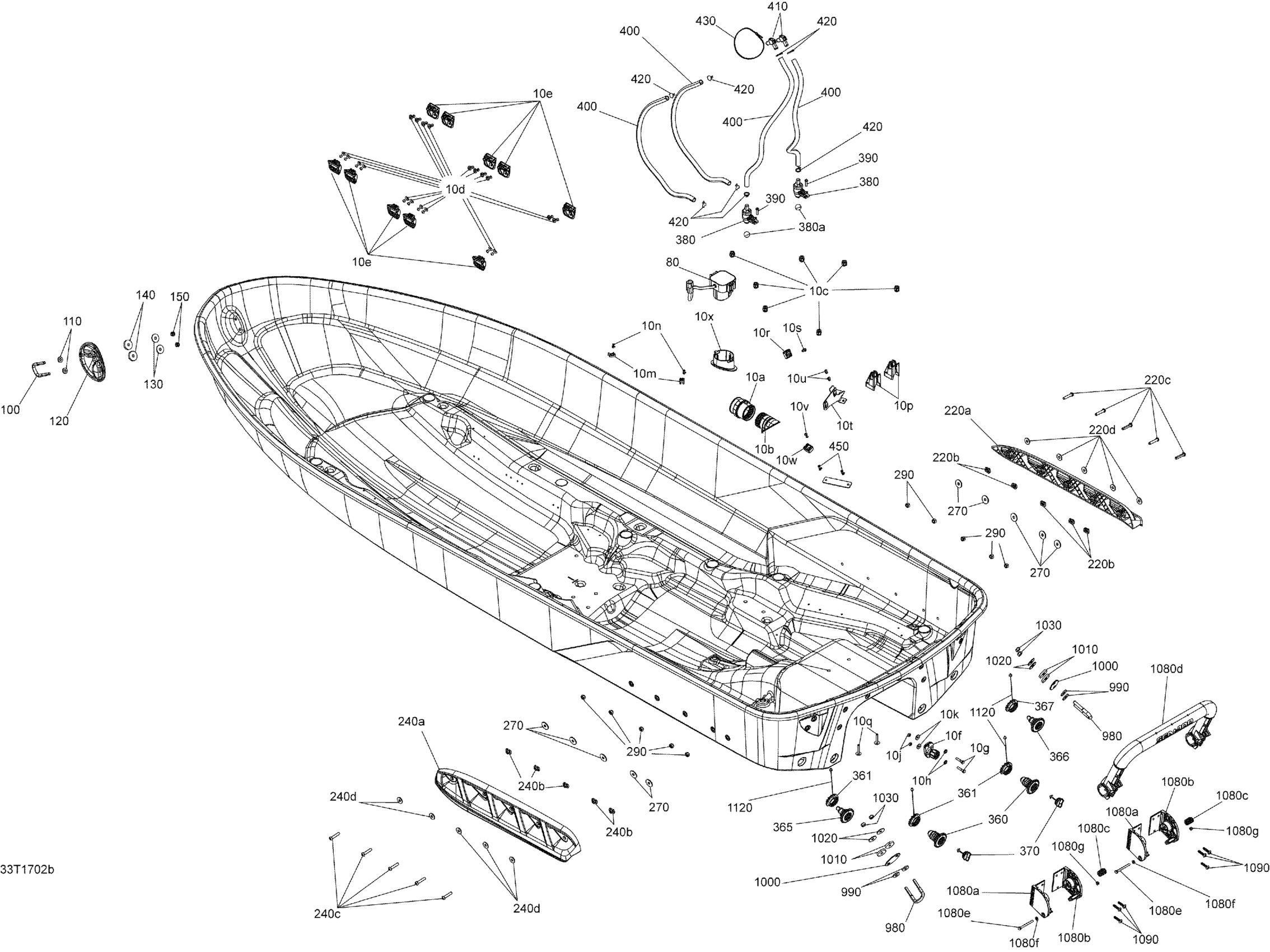

Sea-doo RXT, 2017 Hull - All Models Diagram

#

Description
Price

10a

HULL INSERT - Call your local BRP dealership

293450355

$15.64

10b

Outer Hull Insert

293450309

$20.12

10c

Not Available As Spare Part - Friction Washer

Unavailable

10d

Pop Rivet 3/16"

293150123

$3.43

10e

Strap Retaining

270000933

$5.47

10f

Cable Adaptor Ass'y

277001881

$15.57

10g

Hex. Screw M6 X 30

207063060

$1.51

10h

Sealing Washer

250200114

$3.61

10j

Elastic Stop Nut M6, Brass

232561200

$3.51

10k

Flat Washer M6, Stainless

234062600

$0.64

10m

Tie Rap Mount

293750026

$2.41

10n

Avdel Rivet 3/16"

293150037

$0.47

10p

Strap Anchor

270000988

$8.06

10q

Hexagonal Cap Screw M6 X35

250000399

$3.61

10r

Strap Anchor

270000854

$5.30

10s

Pop Rivet 3/16"

293150043

$1.61

10t

STRAP ANCHOR - Call your local BRP dealership | Package LTD

270000976

Unavailable

10u

Pop Rivet 3/16"

293150043

$1.61

10v

Strap Anchor

270000854

$5.30

10w

Pop Rivet 3/16"

293150043

$1.61

100

U-Clamp

292000933

$32.47

110

Flat Washer M8.5 x 18

293050001

$1.29

120

BOW CUP - Call your local BRP dealership

292001867

Unavailable

130

Flat Washer 8 mm, Stainless

250200175

$1.29

140

Rubber Washer

293830037

$2.68

150

Hex. Elastic Nut M8 Brass

232581200

$1.29

220a

RH Sponson This part replaces 292001426.

292001871

$74.60

220a

RH Sponson

292001878

$72.77

220b

RH Spacer Sponson This part replaces 292001428.

292001873

$40.92

220b

Spacer Sponson

292001349

$9.84

220c

Torx-Head Screw M8 X 35 This part replaces 250000572.

250000994

$4.84

220c

Torx Screw M8 X 40, Stainless

250000452

$3.73

220d

Flat Washer 8 mm, Stainless

234082600

$1.98

220e

Square Head Stud

292001471

$15.99

220f

Push Nut

292001503

$0.81

240a

Sponson LH This part replaces 292001427.

292001872

$64.97

240a

LH Sponson

292001877

$72.77

240b

Spacer Sponson LH This part replaces 292001429.

292001874

$42.87

240b

Spacer Sponson

292001349

$9.84

240c

Torx-Head Screw M8 X 35 This part replaces 250000572.

250000994

$4.84

240c

Torx Screw M8 X 40, Stainless

250000452

$3.73

240d

Flat Washer 8 mm, Stainless

234082600

$1.98

240e

Square Head Stud

292001471

$15.99

240f

Push Nut

292001503

$0.81

270

Flat Washer 8 mm, Stainless

250200175

$1.29

290

Hex. Elastic Nut M8 Brass

232581200

$1.29

360

Drain Ass'y

292001580

$12.86

361

Plastic Nut

292001825

$6.37

365

Drain Neck Ass'y

292001317

$21.42

366

Drain Neck Ass'y

292001317

$21.42

367

Plastic Nut

292001825

$6.37

370

Plug Ass'y | Includes 300f to 300f2

292002022

$11.14

380>380a

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$20.12

380a

Floating Ball

293830080

$5.56

390

Hex. Screw 10-14 X 7/8”

211000023

$2.91

400

Was 275500008 Hose 12 mm

219704356

$5.94

410

Fitting Elbow 90°

293710152

$14.92

420

Tie Wrap 94 mm | 4X4

293750001

$0.83

430

Tie Wrap 368 mm

293750008

$0.85

450

Avdel Rivet 3/16"

293150037

$0.47

980

U-Clamp

292000933

$32.47

990

Flat Washer

279000336

$8.35

1000

Black, Finition Plate

291001386

$8.57

1010

Rubber Washer

293830037

$2.68

1020

Flat Washer 8 mm, Stainless

250200175

$1.29

1030

Hex. Elastic Nut M8 Brass

232581200

$1.29

1080a

A Section Support

292001509

$58.47

1080b

B Section Support

292001510

$58.47

1080c

Spring

292001259

$21.42

1080d

Overmolded Bar

292001204

$122.82

1080e

Hex. Screw M6 x 65 | Produced Before February 01 2010

207066560

$1.55

1080f

Stainless Flat Washer M6

234061600

$0.25

1080g

Hex. Elastic Stop Nut M6

232561600

$0.92

1090

Plastite Screw Torx Cone HD.M6.81X3

250001138

$1.61

1120

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$59.12
