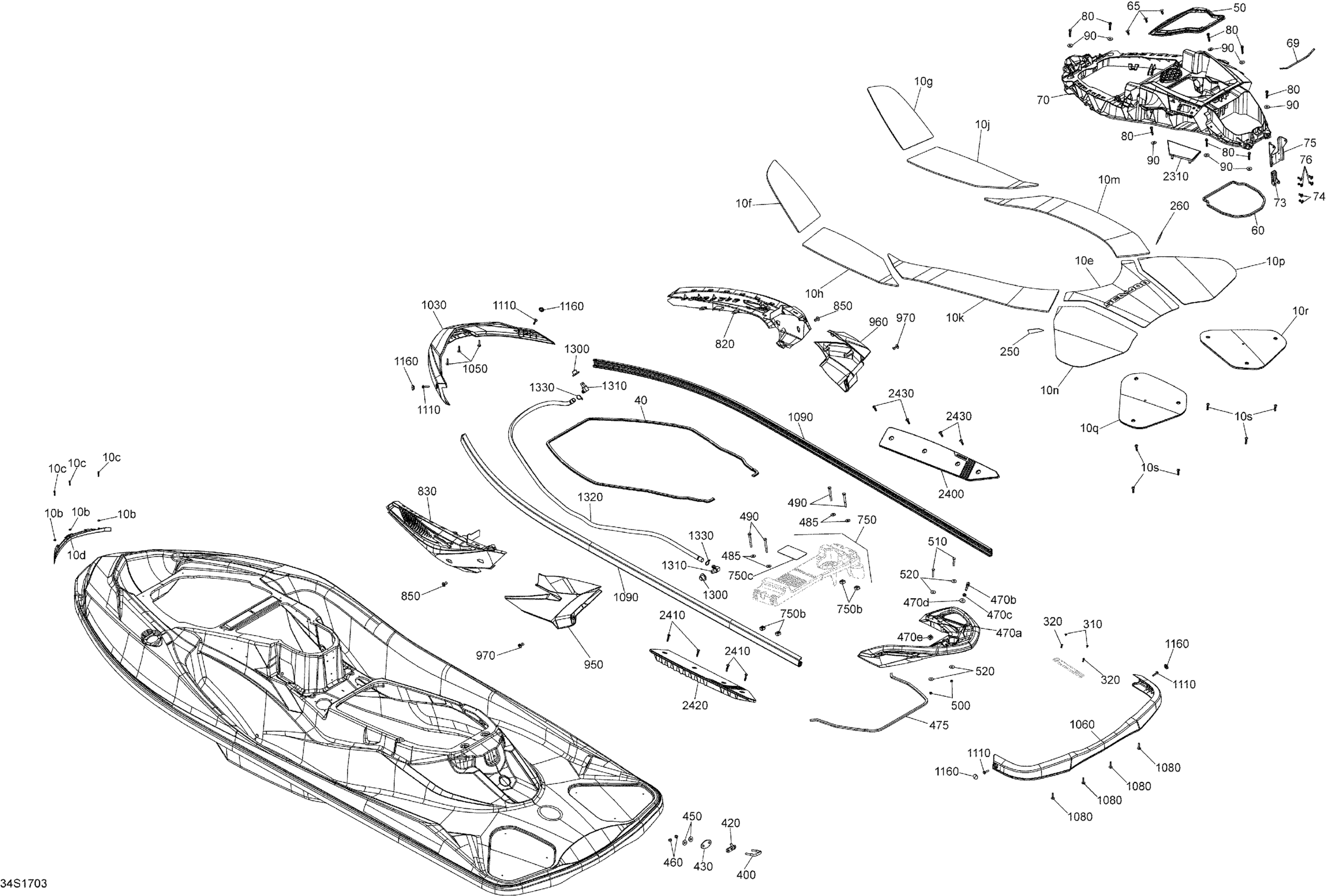

Sea-doo RXT, 2017 Body - All Models Diagram

Flat Washer 4 mm, Stainless

234042600

$0.92

Hex. Flange Screw K40 X 25

241142560

$2.17

DECK NOSE - Call your local BRP dealership

291002818

$13.12

Carpet

291004291

$51.97

LH Front Carpet

291003580

$23.10

ANTI SLIP MAT FL - Call your local BRP dealership | Model RXT-X 300, RXT-X RS 300

291004285

Unavailable

ANTI SLIP MAT FR - Call your local BRP dealership

291003581

$20.87

ANTI SLIP MAT FR - Call your local BRP dealership | Model RXT-X 300, RXT-X RS 300

291004286

Unavailable

ANTI SLIP MAT CTRL L - Call your local BRP dealership

291004299

Unavailable

ANTI SLIP MAT CTRL L - Call your local BRP dealership | Model RXT-X 300, RXT-X RS 300

291004287

Unavailable

Carpet

291004300

$38.03

ANTI SLIP MAT CTRL R - Call your local BRP dealership | Model RXT-X 300, RXT-X RS 300

291004288

Unavailable

Carpet

291004289

$59.67

Carpet

291004290

$59.67

Carpet

291004336

$33.12

Carpet

291004337

$33.12

LH SPACER - Call your local BRP dealership

291004295

Unavailable

RH SPACER - Call your local BRP dealership

291004296

Unavailable

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$1.74

GASKET - Call your local BRP dealership

293250259

Unavailable

NEOPRENE SEAL - Call your local BRP dealership

293250365

Unavailable

NEOPRENE SEAL - Call your local BRP dealership

293250200

Unavailable

Black Dart

293730010

$0.81

SEAL 1000MM LONG - Call your local BRP dealership

219704381

Unavailable

Front Module

291004595

$251.46

CASE - Call your local BRP dealership

269002893

Unavailable

Pop Rivet 3/16"

293150123

$3.43

SEAT PIVOT - Call your local BRP dealership

291004210

Unavailable

Pop Rivet 3/16"

293150123

$3.43

Plastite Hex. Screw M6.8 X 35

243163560

$3.61

Flat Washer 8 mm, Stainless

234082600

$1.98

LH Nonskid

291002626

$11.15

RH NONSKID - Call your local BRP dealership

291002937

Unavailable

Rivet 1/8"

293150016

$0.29

Black, Snap Cap

293000014

$0.85

U-Clamp

292000933

$32.47

Hook | Package LTD

291002351

$67.13

Black, Finition Plate

291001386

$8.57

Flat Washer 8 mm, Stainless

234082600

$1.98

Hex. Elastic Nut M8 Brass

232581200

$1.29

Black Rear Handle

291004622

$76.02

Black Rear Handle

291004622

$76.02

REAR HANDLE ASSY - Call your local BRP dealership | Model RXT-X White

291004624

Unavailable

Seat Stud

291003878

$44.00

Hex. Jam Nut M10

232100600

$1.85

Flat Washer 10 mm, Stainless

234002600

$1.85

Elastic Nut M10 Housing

271001732

Unavailable

Gasket 3000Mm Long

219704378

$22.07

Hex. Screw M6 x 55

207065560

$0.83

Flat Washer M6, Stainless

234062600

$0.64

Elastic Stop Nut M6, Brass

232561200

$3.51

Hex. Screw M6 X 40

207164060

$2.74

Flat Washer M6.6 X 22

250200022

$1.87

LOWER DECK ASS'Y - Call your local BRP dealership | Includes 750 to 750c

291002947

Unavailable

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

CAUTION ENGINE OIL - Call your local BRP dealership

219903184

Unavailable

FRONT RH COSMETIC ASS - Call your local BRP dealership | Model RXT-X Dragon Red

291004234

Unavailable

FRONT RH COSMETIC ASS - Call your local BRP dealership | Model RXT-X White

291004434

Unavailable

FRONT RH COSMETIC ASS - Call your local BRP dealership | Model RXT 260, RXT 260 RS

291004612

Unavailable

Front LH Cosmetic Ass | Model RXT-X Dragon Red

291004235

$342.52

FRONT LH COSMETIC ASS - Call your local BRP dealership | Model RXT-X White

291004435

Unavailable

FRONT LH COSMETIC ASS - Call your local BRP dealership | Model RXT 260, RXT 260 RS

291004613

Unavailable

Pop Rivet 3/16"

293150123

$3.43

LH COSMETIC - Call your local BRP dealership | Model RXT-X Dragon Red

291004170

Unavailable

LH COSMETIC - Call your local BRP dealership | Model RXT 260, RXT 260 RS

291004535

Unavailable

LH COSMETIC - Call your local BRP dealership | Model RXT-X White This part replaces 291004560.

291004634

Unavailable

RH COSMETIC - Call your local BRP dealership | Model RXT-X Dragon Red

291004171

Unavailable

RH COSMETIC - Call your local BRP dealership | Model RXT 260, RXT 260 RS

291004536

Unavailable

Rh Cosmetic | Model RXT-X White This part replaces 291004561.

291004635

$137.28

Pop Rivet 3/16"

293150123

$3.43

Front Bumper

291004275

$63.67

Hexagonal Cap Screw M6 X35

250000399

$3.61

Rear Bumper

291004274

$96.17

Hexagonal Cap Screw M6 X35

250000399

$3.61

Black, Side Bumper

291004451

$47.42

Hexagonal Cap Screw M6 X35

250000399

$3.61

Bumber Cap | Except Cab Package

291002744

$10.21

Grommet

513033435

$3.73

Elbow Fitting

414523600

$3.99

Was 275500008 Hose 12 mm

219704356

$5.94

Tie Wrap 94 mm | 4X4

293750001

$0.83

FRONT REWINDER CAP - Call your local BRP dealership

291002756

Unavailable

FOOTREST RH - Call your local BRP dealership | Model RXT-X 300, RXT-X RS 300

291004194

Unavailable

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87

FOOTREST LH - Call your local BRP dealership | Model RXT-X 300, RXT-X RS 300

291004195

Unavailable

Plastite Screw Torx Cone HD.M6.81X3

250001194

$3.87
