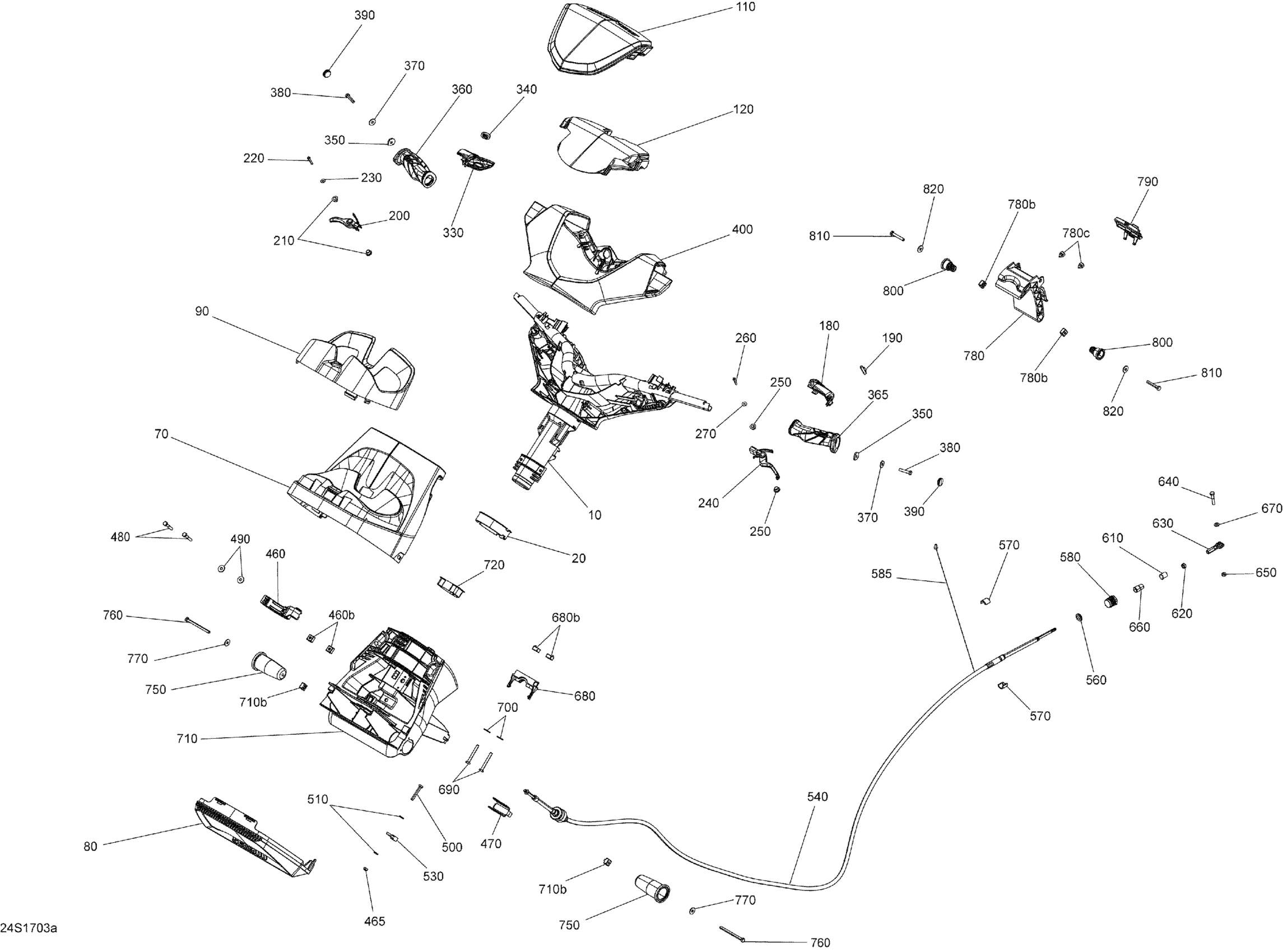

Sea-doo RXT, 2017 Steering - 260 Diagram

#

Description
Price

10

Steering Column

277001963

$306.12

20

Wear Ring

277001653

$9.74

70

Gauge Support

277001953

$48.07

80

Gauge Support Cover

277001613

$22.07

90

Gauge Trim, Black

277001630

$43.52

110

Black Steering Pad | Package SE, B-414 Metalic Blue Long Beach

277001904

$44.82

120

Handlebar Foam

277001921

$71.47

180

Housing Cover LH

277001626

$15.57

190

Red, Knob Switch

277001887

$7.54

200

Throttle Handle

277001944

$30.52

210

Bushing

293900091

$3.34

220

Hex. Flange Screw K40 X 25

241142560

$2.17

230

Flat Washer 4 mm, Stainless

234042600

$0.92

240

Reverse Handle

277001945

$34.42

250

Bushing

293900091

$3.34

260

Hex. Flange Screw K40 X 25

241142560

$2.17

270

Flat Washer 4 mm, Stainless

234042600

$0.92

330

Housing Cover RH

277001625

$15.57

340

Grey Knob Switch

277001888

$9.00

350

Insert Grip Handle

277001863

$7.70

360

Deep Black, RH Handle Grip

277001946

$15.57

365

Deep Black, LH Handle Grip

277001958

$15.57

370

Flat Washer M6, Stainless

234062600

$0.64

380

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.75

390

Black, Cap

277000203

$7.48

400

Steering Cover | IBR

277001969

$53.27

460>460b

Support Ass'y | Includes 460 to 460b

277002179

$17.52

460b

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

465

Elastic Stop Nut M6, Brass

232561200

$3.51

470

Spacer

277001654

$11.40

480

Hex. Screw M6 X 35

207163560

$1.17

490

Flat Washer M6, Stainless

234062600

$0.64

500

Hex. Screw M6 X 40

207064060

$1.40

510

Stainless Flat Washer M6

234061600

$0.25

530

Ball Joint

277001180

$27.92

540

Steering Cable

277001602

$228.77

560

Rubber Washer

293830063

$1.51

570

Half Ring

277001527

$8.35

580

Steering Cable Lock This part replaces 277000784.

277001729

$10.41

585

Was 293800013 Loctite 56765

219704454

$63.40

610

Wiper Rod

277001582

$8.83

620

Hex. Nut 1/4"-28

211100056

$0.56

630

Ball Joint

277000775

$40.27

640

Hex. Screw M6 X 35

207063560

$1.85

650

Elastic Stop Nut M6, Brass

232561200

$3.51

660

End Piece

277001583

$11.14

670

Stainless Flat Washer M6

234061600

$0.25

680>680b

Thrust Support Ass'y

277001655

$22.72

680b

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

690

Hex. Screw M6 X 50

207165060

$0.75

700

Flat Washer M6, Stainless

234062600

$0.64

710>710b

Steering Support | Includes 710 to 710b

277001942

$90.32

710b

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

720

Wear Ring

277002318

$12.43

750

Steering Support Pivot

277001605

$14.92

760

Hex Screw M6 X 80

207168060

$6.36

770

Flat Washer M6, Stainless

234062600

$0.64

780>780c

Handle Ass'y | Includes 780 to 780c

277001658

$107.87

780b

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

780c

Rubber Bumper

293830005

$5.33

790

LOCK - Call your local BRP dealership

277001616

$15.64

800

Pivot

277001652

$12.43

810

Hex. Screw M6 X 40

207064060

$1.40

820

Flat Washer M6, Stainless

234062600

$0.64
