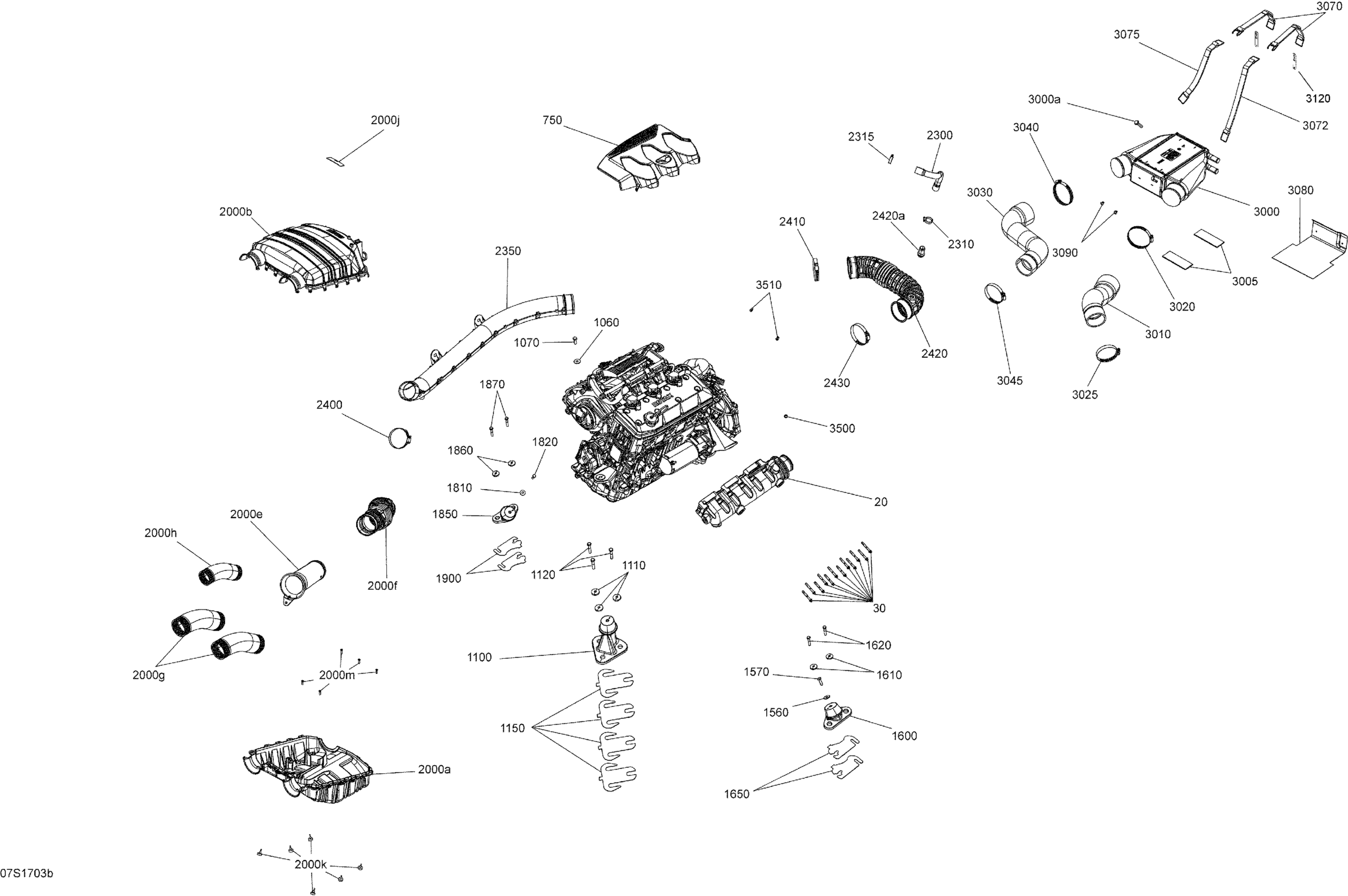

Sea-doo RXT, 2017 Engine - All Models Diagram

#

Description
Price

20

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$839.99

30

Torx Flange Screw M6 X 45

420641198

$4.12

750

Engine Cover | Model RXT 260, RXT 260 RS

270000804

$71.99

750

Engine Cover Ass'y | Includes 750 TO 750b

270001002

$71.99

1060

Flat Washer 8 mm, Stainless

234082600

$2.43

1070

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

1100

Rubber Mount

270000886

$129.99

1110

Cone Washer

250200018

$5.61

1120

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1150

Shim 1.3 mm

270000770

$16.49

1560

Flat Washer 8 mm, Stainless

234082600

$2.43

1570

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

1600

Engine Support Ass'y

270001081

$109.99

1610

Cone Washer

250200018

$5.61

1620

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1650

Shim 1.3 mm

270000762

$12.99

1810

Flat Washer 8 mm, Stainless

234082600

$2.43

1820

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

1850

Engine Support Ass'y

270001081

$109.99

1860

Cone Washer

250200018

$5.61

1870

Hexagonal Head Cap Screw M8 X 45

250000782

$2.85

1900

Shim 1.3 mm

270000762

$12.99

2000a

Airbox Base

273000342

$48.99

2000a

SILENCER_INTAKE LWR - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000356

Unavailable

2000b

Airbox Cover

273000373

$75.99

2000b

SILENCER_INTAKE UP - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000372

Unavailable

2000e

Intake Hose

273000359

$48.99

2000f

HOSE CONNECTOR - Call your local BRP dealership | Engine 1500 HO ACE, 1630 ACE HO

273000322

Unavailable

2000g

Air Silencer Hose

273000290

$22.49

2000h

AIR SILENCER TUBE - Call your local BRP dealership | Model RXT 260, RXT 260 RS

273000299

Unavailable

2000j

Air Silencer Notice Decal

219903177

Unavailable

2000k

Rubber Stopper

708000759

$4.19

2000m

Flange Torx Screw K40 X 16

250000287

$2.11

2300

Formed Hose

270000950

$10.99

2310

Tridon Gear Clamp

293650051

$4.19

2315

Tridon Gear Clamp

293650051

$4.19

2350

HOSE INTAKE - Call your local BRP dealership | Engine 1500 HO ACE, 1630 ACE HO

273000233

Unavailable

2400

Tridon Clamp

293650179

$11.49

2410

Tridon Clamp

293650179

$11.49

2420>2420a

Hose Intake, Rear | Model GTR

273000328

$54.99

2420a

Breather Valve

273000234

$14.49

2430

Tridon Clamp

293650179

$11.49

3000>3000a

Intercooler | Includes 3000 to 3000a

276000335

$625.49

3000>3000a

Intercooler | Model GTR

276000397

$476.49

3000a

Anode Zinc

271001942

$18.76

3005

PAD-RUBBER - Call your local BRP dealership | Engine 1503 HO 4-TEC

293830180

Unavailable

3010

Hose Air Intake Intercooler

273000401

$66.49

3010

Formed Hose | Engine 1503 HO 4-TEC

273000361

$93.99

3020

Tridon Gear Clamp

293650244

$9.29

3025

Tridon Clamp

293650179

$11.49

3030

Outlet Hose | Engine 1630 ACE HO This part replaces 273000339.

273000406

$90.99

3030

Formed Hose | Engine 1503 HO 4-TEC

273000362

$93.99

3040

Tridon Gear Clamp

293650244

$9.29

3045

Tridon Clamp

293650179

$11.49

3070

Fuel Tank Strap

293850093

$21.99

3070

Fuel Tank Strap

293850094

$22.49

3072

Fuel Tank Strap

293850093

$21.99

3075

Fuel Tank Strap

293850095

$19.99

3080

RUBBER PAD - Call your local BRP dealership | Engine 1503 HO 4-TEC

293830146

Unavailable

3080

Pad-Rubber

293830178

$20.99

3090

Black, Dart

293730016

$9.97

3120

HOLDING STRAP - Call your local BRP dealership

270000946

Unavailable

3500

Tie Wrap 142 mm

293750002

$1.25

3510

Tie Wrap 142 mm

293750002

$1.25
