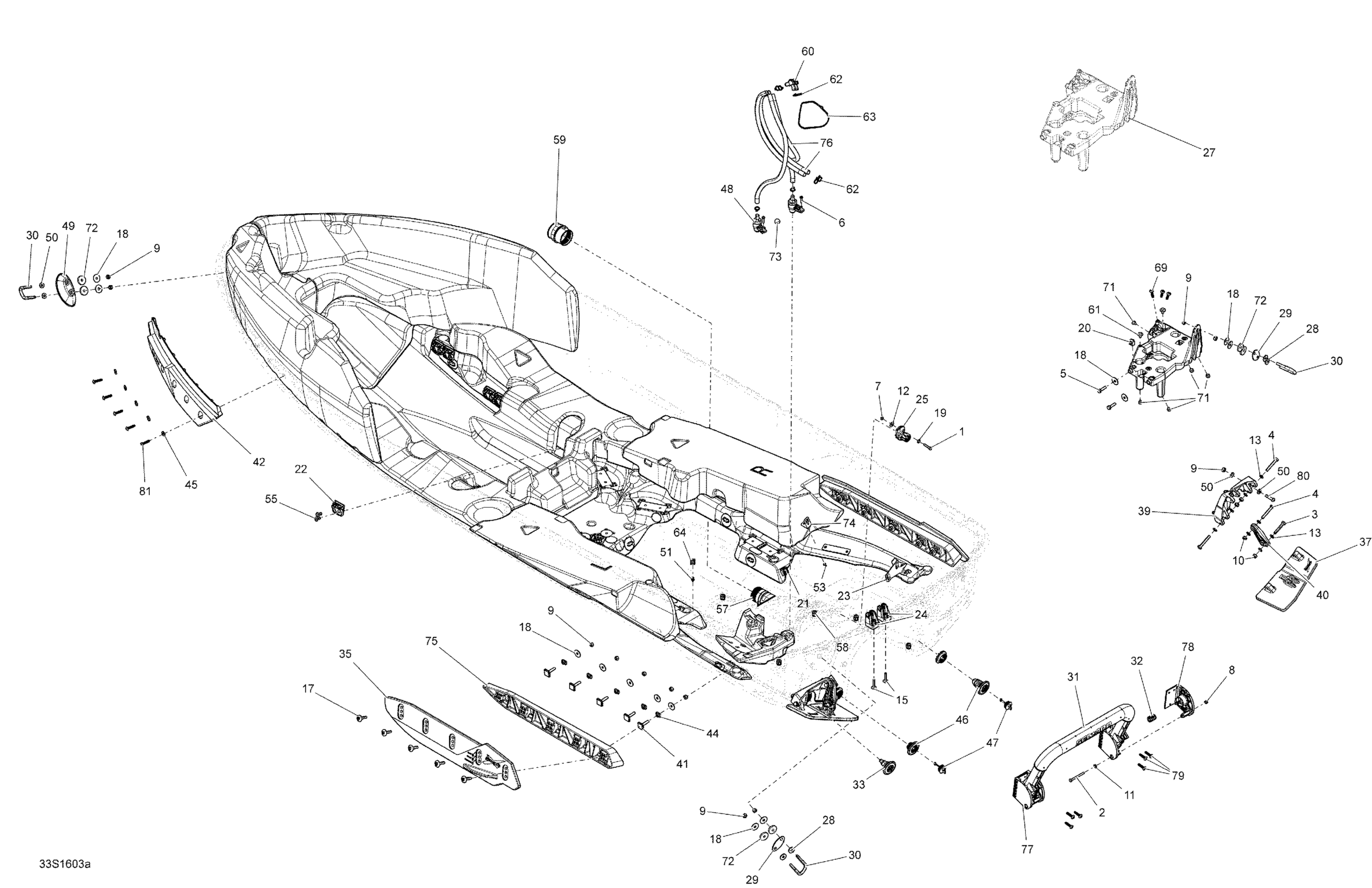

Sea-doo RXT, 2016 Hull Diagram

#

Description
Price

1

Hex. Screw M6 X 30

207063060

$1.89

2

Hex. Screw M6 x 65 | Produced Before February 01 2010

207066560

$2.11

3

HEX. SCREW M8 X 50 - Call your local BRP dealership

207085060

Unavailable

4

HEX. SCREW M8 X 55 - Call your local BRP dealership

207085560

Unavailable

5

Hex. Screw M8 X 30

207183060

$1.58

6

Hex. Screw 10-14 X 7/8”

211000023

$3.59

7

Elastic Stop Nut M6, Brass

232561200

$4.23

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

Hex. Elastic Nut M8 Brass

232581200

$2.22

9

Hex. Elastic Nut M8 Brass

232581200

$2.22

10

Hex. Elastic Nut M8

232581600

$1.48

11

Stainless Flat Washer M6

234061600

$0.33

12

Flat Washer M6, Stainless

234062600

$0.77

13

Stainless, Flat Washer 8 mm

234081600

$0.55

15

Hexagonal Cap Screw M6 X35

250000399

$4.44

16

Torx Screw M8 X 40, Stainless

250000452

$3.91

17

Torx-Head Screw M8 X 35 This part replaces 250000572.

250000994

$3.91

18

Flat Washer 8 mm, Stainless

234082600

$2.43

18

Flat Washer 8 mm, Stainless

250200175

$3.06

18

Flat Washer 8 mm, Stainless

250200175

$3.06

19

Sealing Washer

250200114

$4.44

20

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

21

Strap Anchor

270000854

$7.76

22

Strap Retaining

270000933

$6.99

22

Strap Retaining

270000933

$6.99

23

STRAP ANCHOR - Call your local BRP dealership | Package LTD

270000976

Unavailable

24

Strap Anchor

270000988

$10.28

25

Cable Adaptor Ass'y

277001881

$19.99

26

Depth Sensor Base

278001994

$27.99

27

BATTERY BASE ASS'Y - Call your local BRP dealership | Includes 70 to 70c

278003273

Unavailable

28

Flat Washer

279000336

$11.57

29

Black, Finition Plate

291001386

$10.99

30

U-Clamp

292000933

$59.49

31

Overmolded Bar

292001204

$159.99

32

Spring

292001259

$27.99

33

Drain Neck Ass'y

292001317

$27.99

33a

Plastic Nut

292001825

$9.79

34

Spacer Sponson

292001349

$10.99

35

RH Sponson

292001878

$93.99

35

LH Sponson

292001877

$93.99

35

RH Sponson This part replaces 292001426.

292001871

$83.99

35

Sponson LH This part replaces 292001427.

292001872

$83.99

37

RH TRIM TAB - Call your local BRP dealership

292001461

Unavailable

37

LH TRIM TAB - Call your local BRP dealership

292001460

Unavailable

39

RH SUPPORT PLATE - Call your local BRP dealership

292001463

Unavailable

39

LH SUPPORT PLATE - Call your local BRP dealership

292001462

Unavailable

40

LINK ARM - Call your local BRP dealership

292001464

Unavailable

41

Square Head Stud

292001471

$15.99

42

RH FRONT DEFLECTOR - Call your local BRP dealership

292001479

Unavailable

42

LH FRONT DEFLECTOR - Call your local BRP dealership

292001478

Unavailable

44

Push Nut

292001503

$1.15

45

Flat Washer

292001507

$5.69

46

Drain Ass'y

292001580

$16.49

46a

Plastic Nut

292001825

$9.79

47

Plug Ass'y | Includes 300f to 300f2

292002022

$14.49

48

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$25.99

49

BOW CUP - Call your local BRP dealership

292001867

Unavailable

50

Flat Washer M8.5 x 18

293050001

$3.07

50

Flat Washer M8.5 x 18

293050001

$3.07

51

Avdel Rivet 3/16"

293150037

$0.56

51

Avdel Rivet 3/16"

293150037

$0.56

53

Pop Rivet 3/16"

293150043

$2.09

55

Pop Rivet 3/16"

293150123

$4.29

56

Pop Rivet 3/16

293150186

$2.09

57

Outer Hull Insert

293450309

$25.99

58

Not Available As Spare Part - Friction Washer

Unavailable

59

HULL INSERT - Call your local BRP dealership

293450355

$18.99

60

Fitting Elbow 90°

293710152

$18.49

61

Mount Dart

293730040

$1.04

62

Tie Wrap 94 mm | 4X4

293750001

$1.03

63

Tie Wrap 368 mm

293750008

$1.04

64

Tie Rap Mount

293750026

$3.09

64

Tie Rap Mount

293750026

$3.09

69

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

70

Depth Sensor

278002954

$373.99

71

Rubber Bumper

293830005

$8.09

72

Rubber Washer

293830037

$2.68

73

Floating Ball

293830080

$7.19

74

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

75

RH Spacer Sponson This part replaces 292001428.

292001873

$41.99

75

Spacer Sponson LH This part replaces 292001429.

292001874

$54.99

76

Was 275500008 Hose 12 mm

219704356

$20.49

77

A Section Support

292001509

$59.99

78

B Section Support

292001510

$59.99

79

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30

80

SOCKET SCREW, M8 X 35 - Call your local BRP dealership

205483560

Unavailable

81

Plastite Screw Torx Cone HD.M6.81X3

250001138

$2.30
