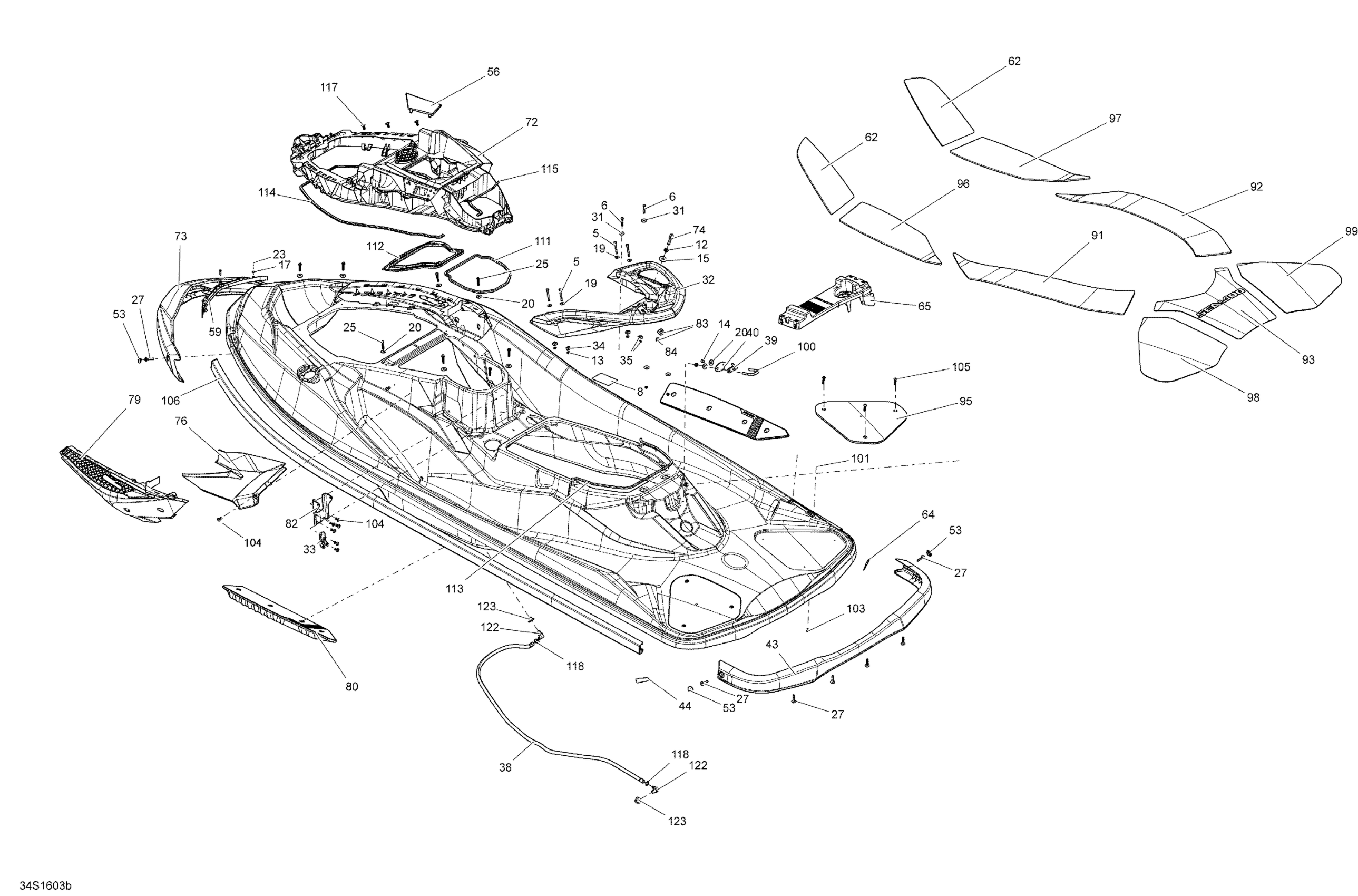

Sea-doo RXT, 2016 Body - Without Suspension Diagram

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

Socket Head Screw M6 X 35

205063560

$2.12

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

205364060

Unavailable

SOCKET SCREW HEAD M6 X 45 - Call your local BRP dealership

205364560

Unavailable

Hex. Screw M6 x 55

207065560

$0.96

Hex. Screw M6 X 40

207164060

$3.15

Push Nut | Not shown

211100002

$0.96

CAUTION ENGINE OIL - Call your local BRP dealership

219903184

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Hex. Screw M6 X 100

230060060

$6.99

Hex. Jam Nut M10

232100600

$2.12

Elastic Stop Nut M6, Brass

232561200

$4.03

Hex. Elastic Nut M8 Brass

232581200

$1.48

Flat Washer 10 mm, Stainless

234002600

$2.12

Flat Washer M3, Stainless

234032600

$0.52

Flat Washer 4 mm, Stainless

234042600

$1.06

Stainless Flat Washer M6

234061600

$0.28

Flat Washer M6, Stainless

234062600

$0.73

Flat Washer 8 mm, Stainless

234082600

$2.27

Hex. Flange Screw K40 X 13

241141360

$0.64

Hex. Flange Screw K40 X 16

241141660

$1.43

Hex. Flange Screw K40 X 25

241142560

$2.49

Oval Philipp Screw KA30 x 12

241731260

$0.93

Plastite Hex. Screw M6.8 X 35

243163560

$4.15

Flange Torx Screw K40 X 16

250000287

$2.00

Hexagonal Cap Screw M6 X35

250000399

$4.15

Torx Screw M8 X 40, Stainless

250000452

$3.73

Torx Screw Plastite M6

250000466

$6.45

Flat Washer 8 mm, Stainless

250200175

$1.48

Flat Washer M6.6 X 22

250200022

$2.15

Black Rear Handle

291004622

$87.28

CASE - Call your local BRP dealership

269002893

Unavailable

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$6.24

Housing Nut M6 | Included 550f to 550f2

269502408

$5.07

Strap

269501299

$17.13

Ball Spring

269501651

$10.82

Was 275500008 Hose 12 mm

219704356

$6.82

Hook | Package LTD

291002351

$67.13

Black, Finition Plate

291001386

$9.84

Bumper Plug, Black

291001519

$4.91

Support Sub-Ass'y | Includes 1900 TO 1900d

291002553

$261.16

Rear Bumper

291004274

$110.42

LH Nonskid

291002626

$11.15

ALUMINUM POST - Call your local BRP dealership

291002642

Unavailable

Lateral Arm LH

291002711

$29.82

Lateral Arm RH

291002712

$29.82

BUTTON - Call your local BRP dealership

291002726

Unavailable

UNDER CAM - Call your local BRP dealership

291002727

Unavailable

ROPE GUIDE - Call your local BRP dealership

291002729

Unavailable

ROPE 3/16 3000MM LONG - Call your local BRP dealership

219704363

Unavailable

Bumber Cap | Except Cab Package

291002744

$11.72

Button Cap

291002754

$5.84

DOUBLE CAGE NUT ASS'Y - Call your local BRP dealership

291002755

Unavailable

FRONT REWINDER CAP - Call your local BRP dealership

291002756

Unavailable

INSIDE COVER - Call your local BRP dealership

291002762

Unavailable

Molded Handle

291004766

$182.81

DECK NOSE - Call your local BRP dealership

291002818

$13.12

Wakeboard Rack

295100453

$218.63

Lower Anchorage

291002864

$13.52

ANTI SLIP MAT FR - Call your local BRP dealership

291003581

$20.87

LH Front Carpet

291003580

$23.10

ANTI SLIP MAT FL - Call your local BRP dealership | Model RXT-X 300, RXT-X RS 300

291004285

Unavailable

ANTI SLIP MAT FR - Call your local BRP dealership | Model RXT-X 300, RXT-X RS 300

291004286

Unavailable

Warning Label

219903137

Unavailable

RH NONSKID - Call your local BRP dealership

291002937

Unavailable

LOWER DECK ASS'Y - Call your local BRP dealership | Includes 750 to 750c

291002947

Unavailable

REWIND COVER - Call your local BRP dealership

291002948

Unavailable

Elastic Rope Ass'y

291002979

$35.04

Latch

291002980

$26.09

JAM CLEAT SYSTEM ASS'Y - Call your local BRP dealership | Includes 2300a to 2300a2

291003023

Unavailable

Wakeboard Rack

295100453

$218.63

Upper Anchorage

291003582

$13.52

Front Module

291004595

$251.46

Front Bumper

291004275

$73.10

Seat Stud

291003878

$44.00

RH Cosmetic | Engine 260HP

291004241

Unavailable

LH Cosmetic | Engine 260HP

291004238

Unavailable

RH COSMETIC - Call your local BRP dealership | Model RXT-X Dragon Red

291004171

Unavailable

LH COSMETIC - Call your local BRP dealership | Model RXT-X Dragon Red

291004170

Unavailable

Rh Cosmetic | Model RXT-X White This part replaces 291004561.

291004635

$137.28

LH COSMETIC - Call your local BRP dealership | Model RXT-X White This part replaces 291004560.

291004634

Unavailable

Front RH Cosmetic Ass | Engine 260HP

291004340

Unavailable

Front LH Cosmetic Ass | Engine 260HP

291004341

Unavailable

FRONT RH COSMETIC ASS - Call your local BRP dealership | Model RXT-X Dragon Red

291004234

Unavailable

Front LH Cosmetic Ass | Model RXT-X Dragon Red

291004235

$393.25

FRONT RH COSMETIC ASS - Call your local BRP dealership | Model RXT-X White

291004434

Unavailable

FRONT LH COSMETIC ASS - Call your local BRP dealership | Model RXT-X White

291004435

Unavailable

FOOTREST RH - Call your local BRP dealership | Model RXT-X 300, RXT-X RS 300

291004194

Unavailable

FOOTREST LH - Call your local BRP dealership | Model RXT-X 300, RXT-X RS 300

291004195

Unavailable

SEAT PIVOT - Call your local BRP dealership

291004210

Unavailable

Elastic Nut M10 Housing

271001732

Unavailable

Elastic Stop Nut M10, Brass

232501200

$2.48

Carpet

291004289

$59.67

Carpet

291004290

$59.67

Carpet

291004291

$59.67

LH SPACER - Call your local BRP dealership

291004295

Unavailable

RH SPACER - Call your local BRP dealership

291004296

Unavailable

ANTI SLIP MAT CTRL L - Call your local BRP dealership

291004299

Unavailable

ANTI SLIP MAT CTRL L - Call your local BRP dealership | Model RXT-X 300, RXT-X RS 300

291004287

Unavailable

Carpet

291004300

$38.03

ANTI SLIP MAT CTRL R - Call your local BRP dealership | Model RXT-X 300, RXT-X RS 300

291004288

Unavailable

Carpet

291004336

$38.03

Carpet

291004337

$38.03

U-Clamp

292000933

$37.28

Black, Snap Cap

293000014

$0.97

Flat Washer M8.5 x 18

293050001

$1.48

Rivet 1/8"

293150016

$0.33

Pop Rivet 3/16"

293150123

$3.94

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.45

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

Lateral Bumper

291003872

$73.10

Type "U" Metallic Drive Screw

293150167

$1.67

Seal

293250151

$9.64

Replacing Kit for Pylon Strap

295100740

$24.60

NEOPRENE SEAL - Call your local BRP dealership

293250200

Unavailable

NEOPRENE SEAL - Call your local BRP dealership

293250365

Unavailable

Gasket 3000Mm Long

219704378

$25.34

GASKET - Call your local BRP dealership

293250259

Unavailable

SEAL 1000MM LONG - Call your local BRP dealership

219704381

Unavailable

Ball 1/4"

293350062

$2.42

Black Dart

293730010

$0.93

Tie Wrap 94 mm | 4X4

293750001

$0.96

Rubber Bumper

293830005

$6.12

Rubber Washer

293830037

$2.68

Rubber Buffer

293830119

$16.39

Elbow Fitting

414523600

$4.58

Grommet

513033435

$4.28
