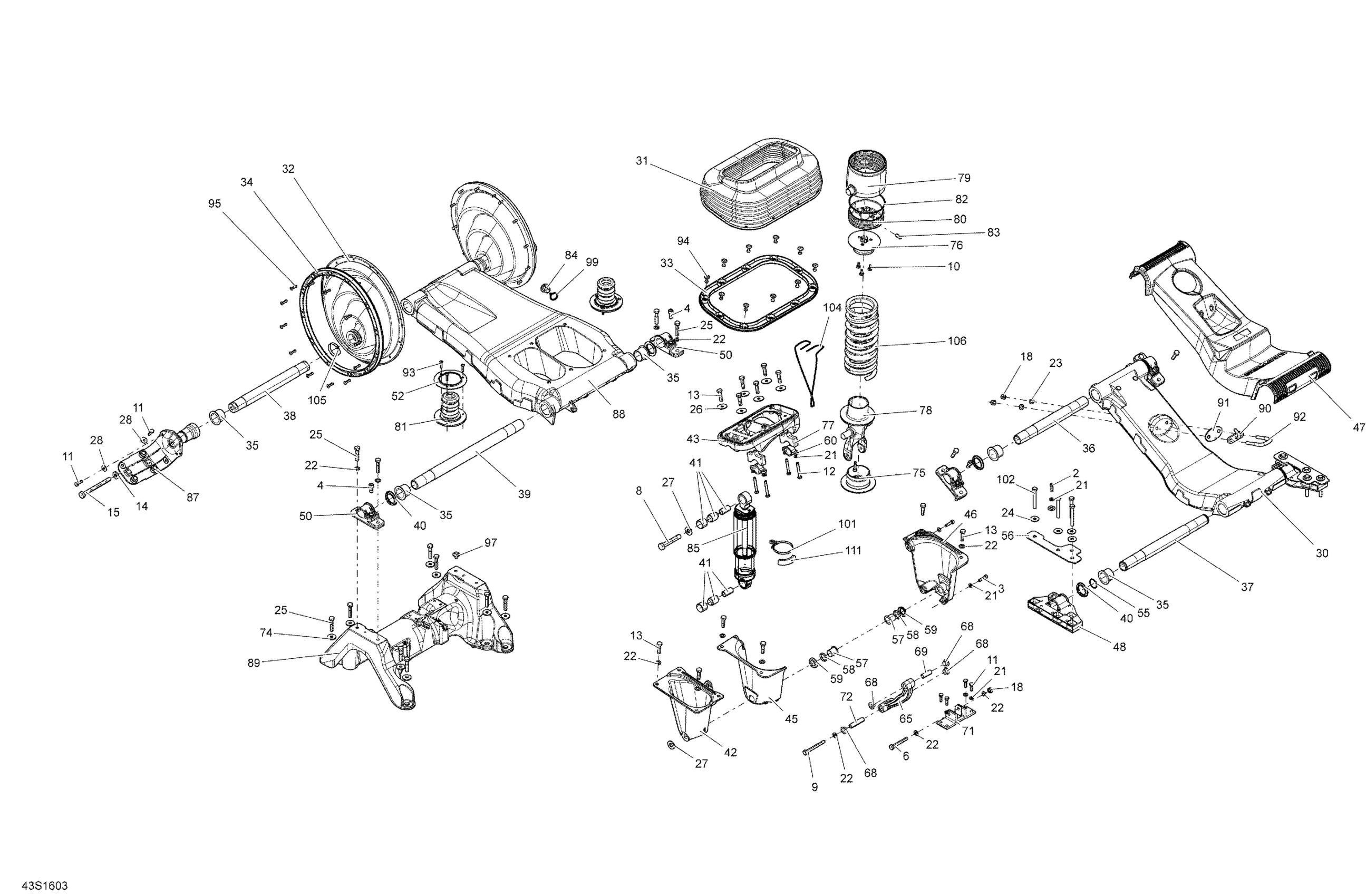

Sea-doo RXT, 2016 Suspension - RXT-X aS 260 Diagram

#

Description
Price

2

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.72

3

Socket Head Screw M6 X 25, Scotch Grip

205562560

$1.96

4

Socket Head Screw M8 X 20, Scotch Grip

205582060

$4.15

6

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086060

$1.79

8

HEX. SCREW M12 X 70, SCOTCH GRIP - Call your local BRP dealership

207227060

Unavailable

9

HEX. SCREW M8 X 75, SCOTCH GRIP - Call your local BRP dealership

207287560

Unavailable

10

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.55

11

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.40

12

Hex. Screw M6 x 45, Scotch Grip

207364560

$1.73

13

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.78

14

Flat Washer

211200051

$1.54

15

Hex. Screw M10 X 110, Scotch Grip

230201060

$12.10

18

Hex. Elastic Nut M8 Brass

232581200

$1.48

21

Stainless Flat Washer M6

234061600

$0.28

22

Flat Washer M8, Stainless

234080600

$1.43

23

Stainless, Flat Washer 8 mm

234081600

$0.52

24

Flat Washer 8 mm, Stainless

234082600

$2.27

25

HEX. SCREW M8 X 40, SOTCH GRIP - Call your local BRP dealership

250000729

Unavailable

26

Flat Washer 8 mm, Stainless

250200175

$1.48

27

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

28

Flat Washer M6

250200115

$3.12

30

REAR ARM ASS'Y - Call your local BRP dealership | Includes 1001 to 1001c

279000001

Unavailable

31

CENTRAL BELLOWS - Call your local BRP dealership

279000008

Unavailable

32

Lateral Bellows

279000009

$72.36

33

Retaining Plate

279000010

$16.39

34

Retaining Ring

279000011

$15.64

35

Bushing

279000019

$22.36

36

PIVOT TUBE - Call your local BRP dealership

279000031

Unavailable

37

PIVOT TUBE - Call your local BRP dealership

279000033

Unavailable

38

PIVOT TUBE - Call your local BRP dealership

279000038

Unavailable

39

PIVOT TUBE - Call your local BRP dealership

279000041

Unavailable

40

RUBBER BUMPER - Call your local BRP dealership

279000047

Unavailable

41

Bushing

279000051

$75.34

42

SHOCK LOWER HOLDER - Call your local BRP dealership

279000055

Unavailable

43

Shock Upper Holder

279000057

$177.58

45

LH SPRING HOLDER - Call your local BRP dealership

279000070

Unavailable

46

RH SPRING HOLDER - Call your local BRP dealership

279000074

Unavailable

47

REAR ARM MOULDING - Call your local BRP dealership

279000080

Unavailable

48

RH REAR BASE - Call your local BRP dealership

279000087

Unavailable

48

LH REAR BASE - Call your local BRP dealership

279000083

Unavailable

50

RH CLAMP - Call your local BRP dealership

279000092

Unavailable

50

LH CLAMP - Call your local BRP dealership

279000089

Unavailable

52

Retaining Ring

279000115

$11.69

55

RETAINING RING - Call your local BRP dealership

279000100

Unavailable

56

RETAINING PLATE - Call your local BRP dealership

279000114

$13.42

57

BUSHING - Call your local BRP dealership

279000103

Unavailable

58

O-RING - Call your local BRP dealership

279000104

Unavailable

59

BUSHING - Call your local BRP dealership

279000105

Unavailable

60

CLAMP - Call your local BRP dealership

279000106

Unavailable

65

SPRING ALIGNMENT ARM - Call your local BRP dealership

279000157

Unavailable

68

BUSHING - Call your local BRP dealership

279000137

$7.10

69

SPACER - Call your local BRP dealership

279000138

Unavailable

71

BRACKET - Call your local BRP dealership

279000155

Unavailable

72

SPACER - Call your local BRP dealership

279000153

Unavailable

74

Flat Washer

279000336

$9.58

75

LOWER SPRING PROTECTOR - Call your local BRP dealership

279000182

Unavailable

76

Upper Spring Protector

279000183

$8.57

77

E-COAT SPACER - Call your local BRP dealership

279000206

Unavailable

78

LOWER SPRING PROTECTOR - Call your local BRP dealership

279000188

Unavailable

79

Upper Spring Holder

279000189

$261.16

80

UPPER SPRING HOLDER - Call your local BRP dealership

279000191

Unavailable

81

RUBBER BUMPER - Call your local BRP dealership

279000193

Unavailable

82

Retaining Ring

279000198

$12.52

83

PLUNGER - Call your local BRP dealership

279000205

Unavailable

84

GROMMET - Call your local BRP dealership

279000321

Unavailable

85

SHOCK - Call your local BRP dealership

279000324

Unavailable

87

FOOT REST - Call your local BRP dealership

279000306

Unavailable

88

FRONT ARM ASS'Y - Call your local BRP dealership | Includes 41 to 41d

279000308

Unavailable

89

FRONT ARM BASE - Call your local BRP dealership

279000316

Unavailable

90

Hook | Package LTD

291002351

$67.13

91

Black, Finition Plate

291001386

$9.84

92

U-Clamp

292000933

$37.28

93

Pop Rivet 3/16"

293150005

$0.46

94

Pop Rivet 3/16"

293150123

$3.94

95

Pop Rivet 3/16"

293150176

$2.09

97

Mount Dart

293730040

$0.99

99

Tie Wrap 142 mm

293750002

$1.01

101

Tie Rap 300mm

293750053

$1.99

102

Hex. Screw M8 X 50, Scotch Grip

207285060

$1.96

104

Retaining Cable

708200118

Unavailable

105

Oetiker Clamp

293650242

$7.90

106

PAINTED SPRING - Call your local BRP dealership

279000180

Unavailable

111

Seal Tray 1000Mm Long

219704368

$12.30
