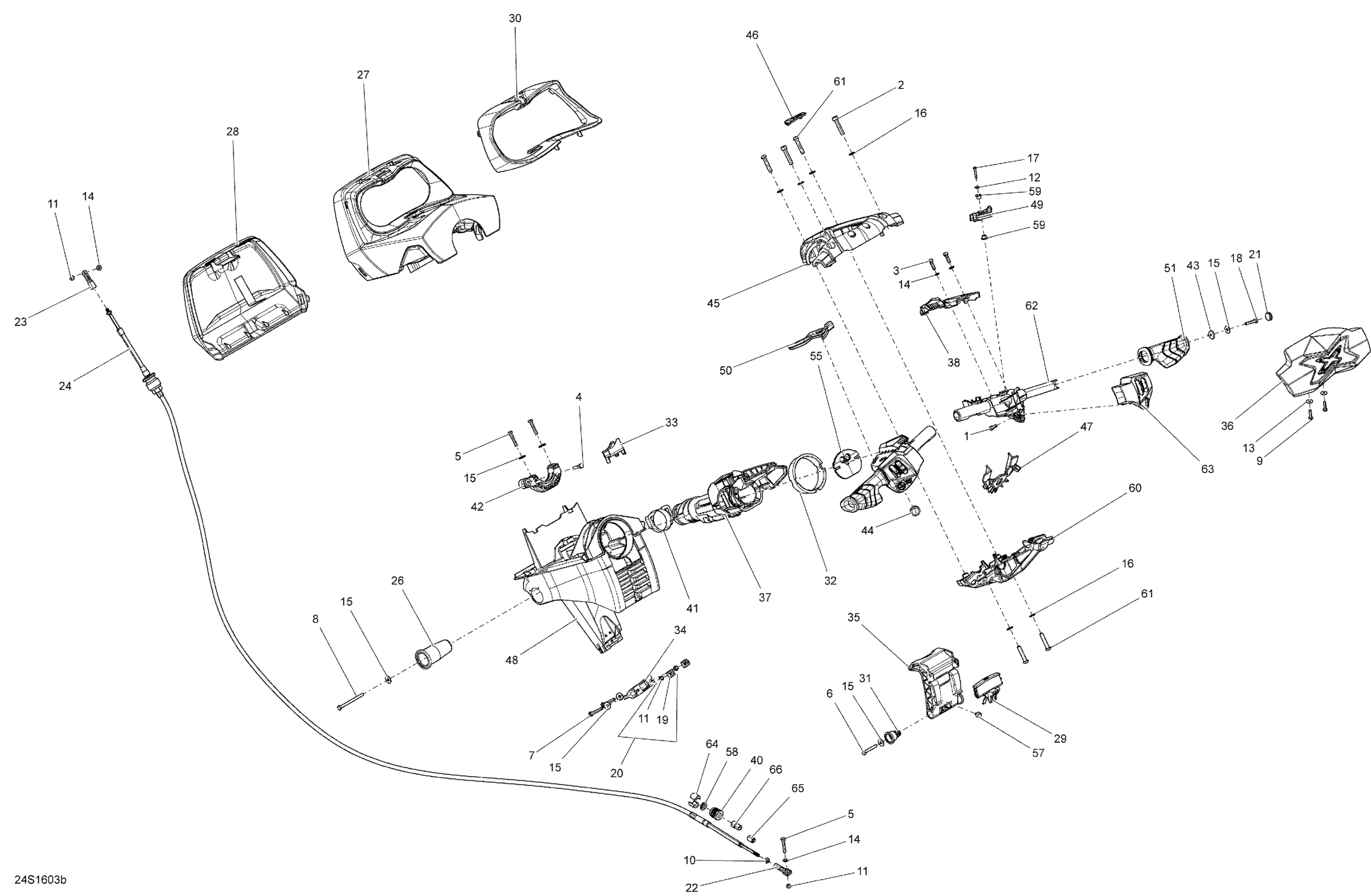

Sea-doo RXT, 2016 Steering - RXT-X 300 Diagram

#

Description
Price

1

Socket Screw M6 X 16

205061660

$1.25

2

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

3

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.62

4

Hex. Screw M6 X 30

207063060

$1.51

5

Hex. Screw M6 X 35

207063560

$1.85

6

Hex. Screw M6 X 40

207064060

$1.40

7

Hex. Screw M6 X 50

207165060

$0.75

8

Hex Screw M6 X 80

207168060

$6.55

9

Hex. Screw 10-14 X 7/8”

211000023

$2.91

10

Hex. Nut 1/4"-28

211100056

$0.56

11

Elastic Stop Nut M6, Brass

232561200

$3.51

12

Flat Washer 4 mm, Stainless

234042600

$0.92

13

Flat Washer 5 mm, Stainless

234052600

$0.64

14

Stainless Flat Washer M6

234061600

$0.25

15

Flat Washer M6, Stainless

234062600

$0.64

16

Flat Washer M8, Stainless

234080600

$1.25

17

Hex. Flange Screw K40 X 25

241142560

$2.17

18

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.75

19

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

20

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

21

Black, Cap

277000203

$7.48

22

Ball Joint

277000775

$40.27

23

Ball Joint

277001180

$27.92

24

Steering Cable

277001602

$228.77

26

Steering Support Pivot

277001605

$14.92

27

Gauge Support

277001953

$48.07

28

Gauge Support Cover

277001613

$22.07

29

LOCK - Call your local BRP dealership

277001616

$16.12

30

Gauge Trim, Black

277001630

$43.52

31

Pivot

277001652

$12.43

32

Wear Ring

277001653

$9.74

33

Spacer

277001654

$11.40

34

Thrust Support Ass'y

277001655

$22.72

35

Handle Ass'y | Includes 780 to 780c

277001658

$107.87

36

Handle Pad

277001683

$87.66

37

Steering Column

277001685

$193.02

38

Upper Housing RH

277001688

$85.77

38

LH UPPER HOUSING - Call your local BRP dealership

277001686

Unavailable

40

Steering Cable Lock This part replaces 277000784.

277001729

$10.41

41

Wear Ring

277002318

$12.43

42

Support Ass'y | Includes 460 to 460b

277002179

$17.52

43

Insert Grip Handle

277001863

$7.70

44

Red, Knob Switch

277001887

$7.54

45

FRONT EXTENSION BLOC - Call your local BRP dealership

277001909

Unavailable

46

AESTHETIC CAP - Call your local BRP dealership

277001919

Unavailable

47

RADIO FREQUENCY KEY SUPPORT - Call your local BRP dealership

277001920

Unavailable

48

Steering Support | Includes 710 to 710b

277001942

$90.32

49

Throttle Handle

277001944

$30.52

50

Reverse Handle

277001945

$34.42

51

Deep Black, RH Handle Grip

277001946

$15.57

51

Deep Black, LH Handle Grip

277001958

$15.57

54

Grommet | Model with Suspension

293720083

$16.87

55

Grommet

293720086

$10.18

56

Was 293800013 Loctite 56765

219704454

$65.35

57

Rubber Bumper

293830005

$5.33

58

Rubber Washer

293830063

$1.51

59

Bushing

293900091

$3.34

60

REAR EXTENSION BLOCK - Call your local BRP dealership

277001926

Unavailable

61

Torx-Button M/S M8 X 40 Stlss S.Gri

250000845

$3.25

62

LH Lower Housing This part replaces 277001965.

277001950

$147.66

62

RH LOWER HOUSING - Call your local BRP dealership This part replaces 277001966.

277001951

Unavailable

63

RH Housing Cover

277001718

$102.67

63

LH HOUSING COVER - Call your local BRP dealership

277001794

Unavailable

64

Half Ring

277001527

$8.35

65

Wiper Rod

277001582

$8.83

66

End Piece

277001583

$11.14
