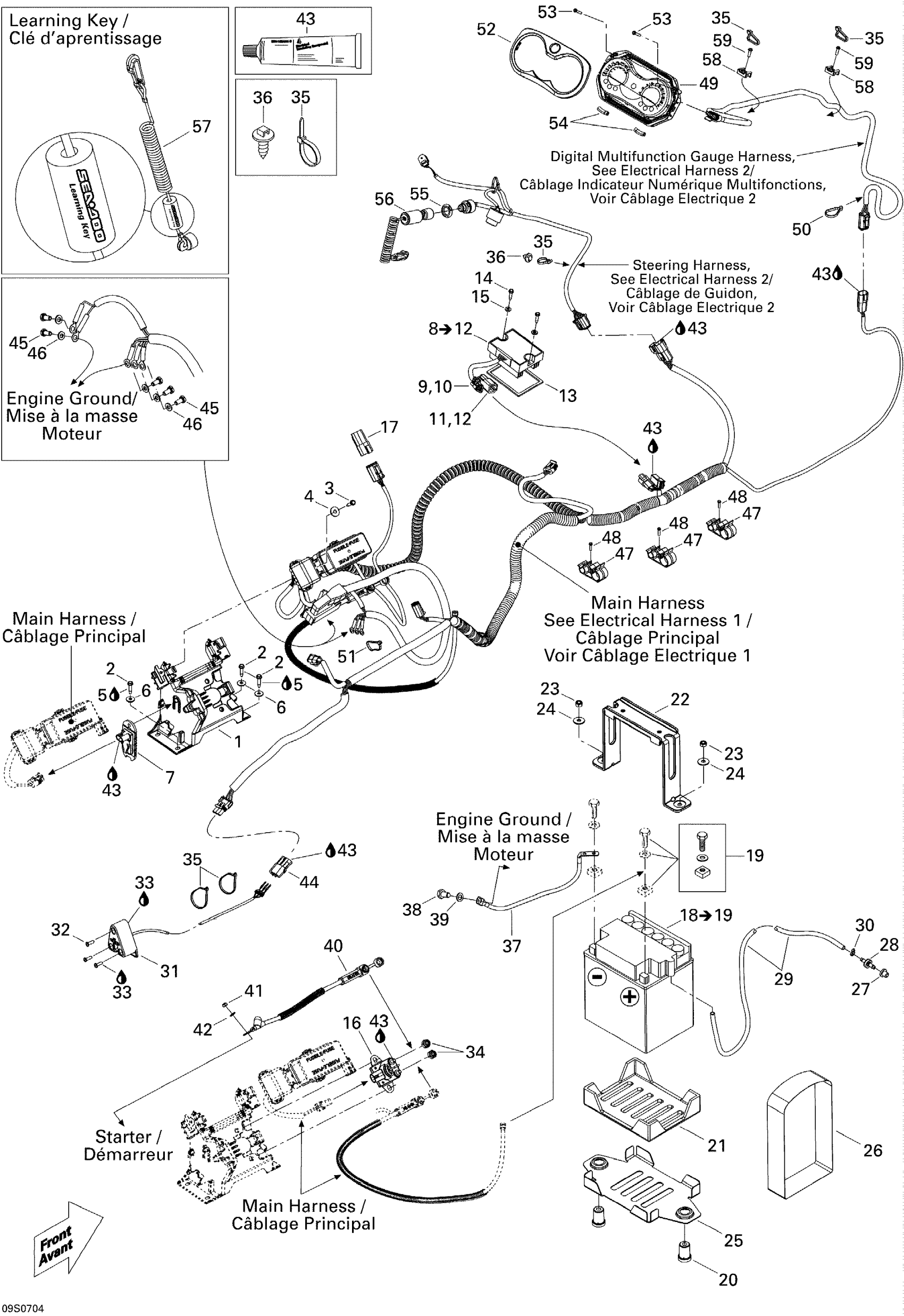

Sea-doo RXT, 2007 10- Electrical System Diagram
#
1
MODULE SUPPORT - Call your local BRP dealership
278002699
Unavailable
2
Hex. Screw 10-14 X 7/8”
211000023
$3.59
3
Hex. Screw 10-14 X 7/8”
211000023
$3.59
4
Flat Washer M6, Stainless
234062600
$0.77
5
Loctite 271, 10 ml
293800005
$26.99
6
Flat Washer M6, Stainless
234062600
$0.77
7
Interrupter T.O.P.S.
278001992
$74.49
8
REGULATOR - Call your local BRP dealership | Includes 11 to 15
278001969
$174.99
9
CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership
278002375
$30.99
10
Female Terminal
278000632
$2.09
11
Male Housing, 2 Circuits
409206900
$9.59
12
Female Terminal
515175567
$7.69
13
SEAL - Call your local BRP dealership
293250123
Unavailable
14
Hex. Screw 10-14 X 7/8”
211000023
$3.59
15
Stainless Flat Washer M6
234061600
$0.33
16
Starter Relay
278003012
$42.49
17
Diagnostic Connector
278002704
$19.49
18
Battery, 30 Amperes
278001882
$184.01
19
Battery Bolt Kit
250000282
$7.29
20
BUSHING - Call your local BRP dealership
278001939
Unavailable
21
LOWER BATTERY PAD - Call your local BRP dealership
278001582
Unavailable
22
BATTERY SUPPORT - Call your local BRP dealership
278001677
Unavailable
23
Hex. Elastic Nut M8 Brass
232581200
$2.22
24
Flat Washer 8 mm, Stainless
234082600
$2.43
25
BATTERY SUPPORT - Call your local BRP dealership
278001966
Unavailable
26
BATTERY STRAP 337 MM - Call your local BRP dealership
278001764
Unavailable
27
Grommet
293720029
$1.59
28
CHECK VALVE - Call your local BRP dealership This part replaces 275500167.
275500499
Unavailable
29
HOSE 6 MM - Call your local BRP dealership
275500446
Unavailable
30
Tie Wrap 94 mm | 4X4
293750001
$1.03
31
Speed Sensor
278001993
$169.99
32
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
211000021
Unavailable
33
Silicone Sealant 51388, 300 ml
296000309
$36.99
34
Elastic Stop Nut M6, Brass
232561200
$4.23
35
Tie-Rap 180 mm
414115200
$0.11
36
Mount Dart
293730040
$1.04
37
GROUND CABLE - Call your local BRP dealership
278002176
Unavailable
38
Hex. Screw M10 X 20, Scotch Grip
207302060
$4.02
39
Flat Washer 10 mm, Stainless
234000600
$1.46
40
STARTER CABLE - Call your local BRP dealership
278002265
Unavailable
41
Elastic Stop Nut M6, Brass
232561200
$4.23
42
Stainless Flat Washer M6
234061600
$0.33
43
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
44
Female Terminal Housing, 3 Circuits | XT Models
278000281
$9.85
45
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
46
Stainless Flat Washer M6
234061600
$0.33
47
RETAINER - Call your local BRP dealership
275500553
Unavailable
48
Hex. Flange Screw K40 X 16
241141660
$1.48
49
Digital Multifunction Gauge | SERV
278002270
$1.00
50
Tie-Rap 180 mm
414115200
$0.11
51
Tie Wrap 142 mm
293750002
$1.25
52
Gauge Bezel, Black
278002135
$28.99
52
Gauge Bezel, Chrome
278002144
$38.99
53
Hex. Flange Screw K40 X 25
241142560
$2.64
54
TRIM - Call your local BRP dealership
293830113
Unavailable
55
Safety Nut (DESS Switch)
278002963
$3.28
56
Safety Lanyard, Antitheft This part replaces 278001543.
278002199
$84.99
57
Safety Lanyard, Learning Key
278002203
$56.99
58
Tie Rap Mount
293750026
$3.09
59
Hex. Flange Screw K40 X 13
241141360
$0.67
