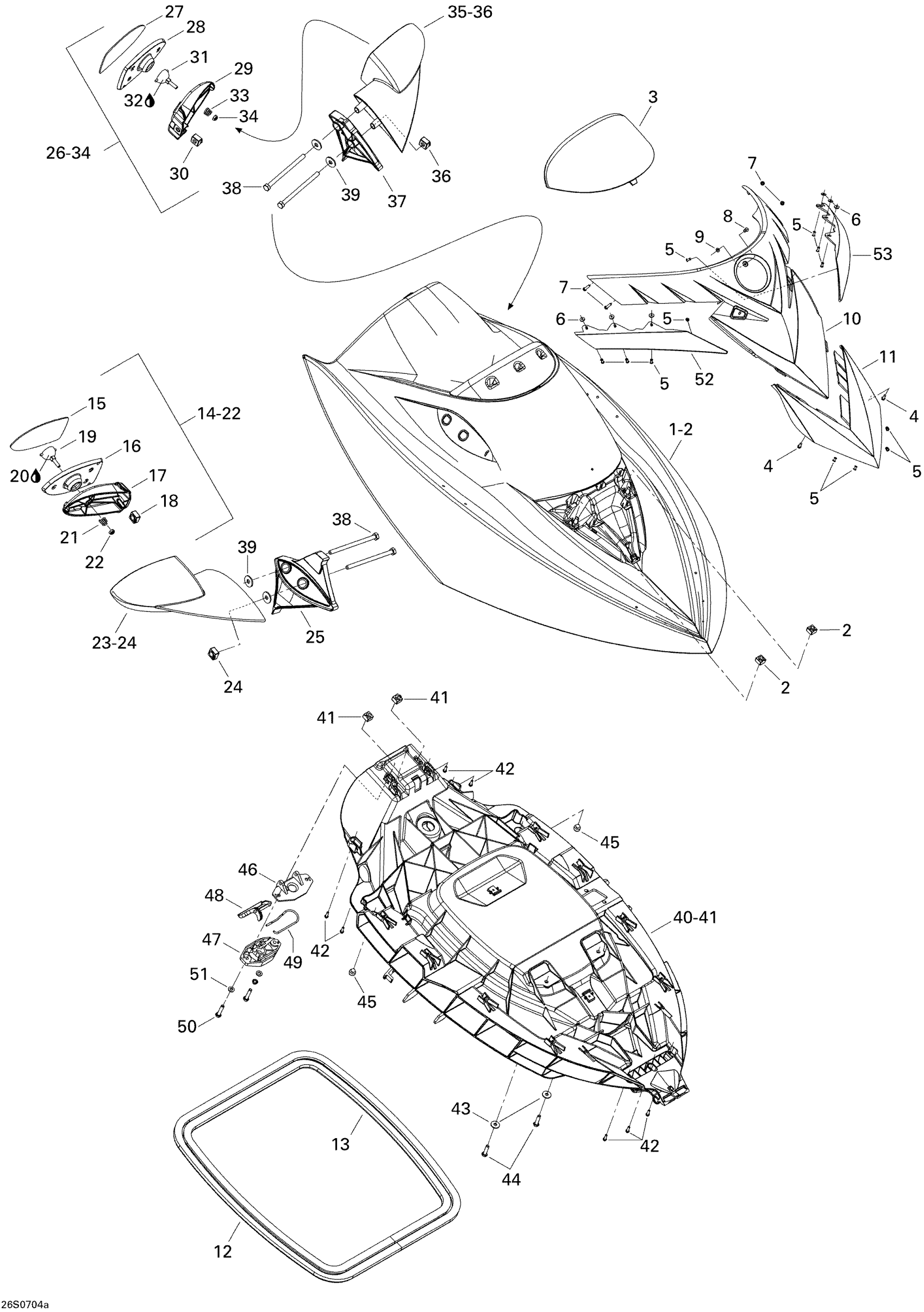

Sea-doo RXT, 2007 09- Front Storage Compartment 1 Diagram
#
1
Upper Storage Cover | Includes 1 to 2, Yellow/Black
269501572
Unavailable
1
UPPER STORAGE COVER - Call your local BRP dealership | Includes 1 to 2, Bright Yellow Model
269501573
Unavailable
2
Housing Nut M6 | Included 550f to 550f2
269502408
$6.74
3
DEFLECTOR - Call your local BRP dealership
269501599
Unavailable
4
Hex. Flange Screw K40 X 13
241141360
$0.67
5
RIVET_POP 1/8 X ,438 - Call your local BRP dealership
293150001
Unavailable
6
WASHER - Call your local BRP dealership
293150007
Unavailable
7
Hex. Flange Screw K40 X 13
241141360
$0.67
8
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
9
Flat Washer 4 mm
234040600
$0.55
10
FRONT FASCIA - Call your local BRP dealership
269501519
Unavailable
11
FRONT DEFLECTOR, CHROME - Call your local BRP dealership
269501407
Unavailable
12
Was 293200017 Neoprene Seal
219704365
$149.99
13
Was 293200017 Neoprene Seal
219704365
$149.99
14
RH MIRROR ASS'Y - Call your local BRP dealership | Includes 7 to 9
269501633
Unavailable
15
RH Mirror
269501328
Unavailable
16
Mirror Frame
269501330
Unavailable
17
Housing Support
269501331
Unavailable
18
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
$6.67
19
MIRROR BALL JOINT - Call your local BRP dealership
269501333
Unavailable
20
Synthetic Grease, 400 G
293550010
Unavailable
21
Mirror Spring
269501334
Unavailable
22
Hex. Elastic Stop Nut M6
232561600
$1.15
23
Mirror Sheel | Includes 23 to 24, Yellow/Black
269501577
Unavailable
23
MIRROR SHEEL - Call your local BRP dealership | Includes 23 to 24, Bright Yellow Model
269501578
Unavailable
24
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
$6.67
25
RH SPACER - Call your local BRP dealership
269501600
Unavailable
26
LH MIRROR - Call your local BRP dealership | Includes 10 to 12
269501634
Unavailable
27
LH Mirror Ass'y | GTI SE, Includes 12 to 20
269501337
Unavailable
28
Mirror Frame
269501330
Unavailable
29
Housing Support
269501331
Unavailable
30
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
$6.67
31
MIRROR BALL JOINT - Call your local BRP dealership
269501333
Unavailable
32
Synthetic Grease, 400 G
293550010
Unavailable
33
Mirror Spring
269501334
Unavailable
34
Hex. Elastic Stop Nut M6
232561600
$1.15
35
MIRROR SHEEL - Call your local BRP dealership | Includes 35 to 36, Yellow/Black
269501579
Unavailable
35
MIRROR SHEEL - Call your local BRP dealership | Includes 34 to 35, Bright Yellow Model
269501580
Unavailable
36
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
$6.67
37
LH SPACER - Call your local BRP dealership
269501601
Unavailable
38
HEX. SCREW M8 X 120 - Call your local BRP dealership
230082060
Unavailable
39
Flat Washer 8 mm, Stainless
234082600
$2.43
40
LOWER STORAGE COVER ASS'Y - Call your local BRP dealership | Includes 39 to 40
269501575
Unavailable
41
Housing Nut M6 | Included 550f to 550f2
269502408
$6.74
42
Hex. Flange Screw K40 X 13
241141360
$0.67
43
Flat Washer M6, Stainless
234062600
$0.77
44
Hex. Screw M6 X 25
207162560
$1.47
45
Rubber Bumper
293830005
$8.09
46
Latch Ass'y
269700109
$24.99
47
Latch Ass'y
269700109
$24.99
48
Latch Ass'y
269700109
$24.99
49
Latch Spring
269700017
$9.19
50
Hex. Screw M6 X 30
207063060
$1.89
51
Stainless Flat Washer M6
234061600
$0.33
52
RH DEFLECTOR, CHROME - Call your local BRP dealership
269501409
Unavailable
53
LH DEFLECTOR, CHROME - Call your local BRP dealership
269501410
Unavailable
